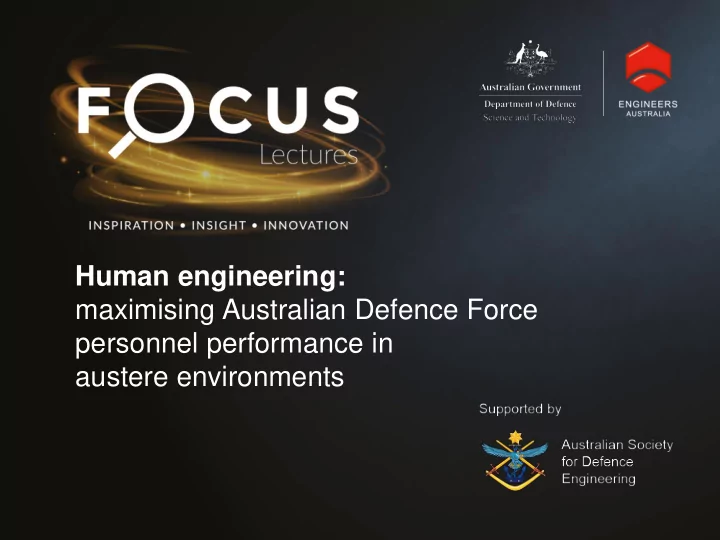

Human engineering: maximising Australian Defence Force personnel performance in austere environments Acknowledgements Dan Billing Melanie Franklyn Renee Attwells Alison Fogarty Dan Ham Andrew Hunt Jace Drain Warren Roberts Greg


  1. Human engineering: maximising Australian Defence Force personnel performance in austere environments

  2. Acknowledgements Dan Billing Melanie Franklyn Renee Attwells Alison Fogarty Dan Ham Andrew Hunt Jace Drain Warren Roberts Greg Carstairs Peter Sanders Denise Linnane Alistair Furnell Tim Doyle Sheena Davis Ben Beck Mark Edwards Amelia Carr Jemma Coleman Alison Treloar Amy Simpson Mark Jaffrey Sheena Care Sheridan Laing

  3. Heat Injuries

  4. The Human Furnace

  5. Moderate WBGT °C Very Light work Light Work Moderate Work Heavy Work Very Heavy Work DPCU Body Duration Water Duration Water Duration Water Duration Water Duration Water DPCU MOPP4 Armour (min) (L/hr) (min) (L/hr) (min) (L/hr) (min) (L/hr) (min) (L/hr) < 19.0 NL ½ NL ½ NL ½ NL ½ 60 1 19.0 - 20.9 NL ½ NL ½ NL ½ 180 ½ 50 1 21.0 - 22.9 NL ½ NL ½ NL ½ 100 ½ 45 1 23.0 - 24.9 <22 <19 NL ½ NL ½ NL ¾ 75 ¾ 40 1 26 NL 25.0 - 26.9 22.0 - 23.9 19.0 - 20.9 NL ½ NL ½ NL ¾ 70 ¾ 35 1¼ 27.0 - 28.9 24.0 - 25.9 21.0 - 22.9 NL ½ NL ½ 150 1 65 1 30 1¼ 29.0 - 30.9 26.0 - 27.9 23.0 - 24.9 NL ½ NL ¾ 100 1 55 1 25 1¼ 31 NL 80 31.0 - 31.9 28.0 - 28.9 25.0 - 25.9 NL ½ NL ¾ 80 1¼ 50 1 20 1¼ 32.0 - 32.9 29.0 - 29.9 26.0 - 26.9 NL ½ 180 1 70 1¼ 45 1¼ 20 1¼ 33.0 - 33.9 30.0 - 30.9 27.0 - 27.9 NL ½ 140 1¼ 55 1¼ 35 1¼ 15 1¼ 34.0 - 34.9 31.0 - 31.9 28.0 - 28.9 NL ¾ 120 1¼ 50 1¼ 35 1¼ 15 1¼ 35.0 - 35.9 32.0 - 32.9 29.0 - 29.9 NL ¾ 100 1¼ 45 1¼ 30 1¼ 10 1¼ 36.0 - 36.9 33.0 - 33.9 30.0 - 30.9 260 1 80 1¼ 45 1¼ 30 1¼ 10 1¼ ≥ 37.0 ≥ 34.0 ≥ 31.0 150 1¼ 70 1¼ 40 1¼ 25 1¼ 5 1¼

  6. Environmental Stress Index

  7. WGBT vs ESI - Darwin

  8. Human  Mechanical Platform

  9. WBGT °C Very Light work Light Work Moderate Work Heavy Work Very Heavy Work Body Duration Water Duration Water Duration Water Duration Water Duration Water DPCU MOPP4 Armour (min) (L/hr) (min) (L/hr) (min) (L/hr) (min) (L/hr) (min) (L/hr) < 19.0 NL ½ NL ½ NL ½ NL ½ 60 1 180 20 19.0 - 20.9 NL ½ NL ½ NL ½ 180 ½ 50 1 100 22 21.0 - 22.9 NL ½ NL ½ NL ½ 100 ½ 45 1 75 24 23.0 - 24.9 <22 <19 NL ½ NL ½ NL ¾ 75 ¾ 40 1 25.0 - 26.9 22.0 - 23.9 19.0 - 20.9 NL ½ NL ½ NL ¾ 70 ¾ 35 1¼ 27.0 - 28.9 24.0 - 25.9 21.0 - 22.9 NL ½ NL ½ 150 1 65 1 30 1¼ 29.0 - 30.9 26.0 - 27.9 23.0 - 24.9 NL ½ NL ¾ 100 1 55 1 25 1¼ 31.0 - 31.9 28.0 - 28.9 25.0 - 25.9 NL ½ NL ¾ 80 1¼ 50 1 20 1¼ 32.0 - 32.9 29.0 - 29.9 26.0 - 26.9 NL ½ 180 1 70 1¼ 45 1¼ 20 1¼ 33.0 - 33.9 30.0 - 30.9 27.0 - 27.9 NL ½ 140 1¼ 55 1¼ 35 1¼ 15 1¼ 34.0 - 34.9 31.0 - 31.9 28.0 - 28.9 NL ¾ 120 1¼ 50 1¼ 35 1¼ 15 1¼ 35.0 - 35.9 32.0 - 32.9 29.0 - 29.9 NL ¾ 100 1¼ 45 1¼ 30 1¼ 10 1¼ 36.0 - 36.9 33.0 - 33.9 30.0 - 30.9 260 1 80 1¼ 45 1¼ 30 1¼ 10 1¼ ≥ 37.0 ≥ 34.0 ≥ 31.0 150 1¼ 70 1¼ 40 1¼ 25 1¼ 5 1¼

  10. Body Armour – Human-Centred Design

  11. Body Armour System - Protection

  12. Body Armour – Human Considerations • Heat Strain • Mobility • Organ Coverage • Length - Breadth • Curvature

  13. Physical Employment Standards

  14. Body Armour - Heat Strain Tier 1 Tier 3 Tier 2 Patrol – 90 min Section Attack – 30 min 45 o C 20% Relative Humidity

  15. Body Armour - Mobility Section Attack 16 x 6 m bounds (15-30 kg) 1 kg = 1% decrement Importance Physical Conditioning

  16. Body Armour – Organ Coverage -100 -200 -100 0 100 200 0 100 200 300 400 500

  17. Body Armour – Length/Breadth

  18. Body Armour - Curvature

  19. Thank You
