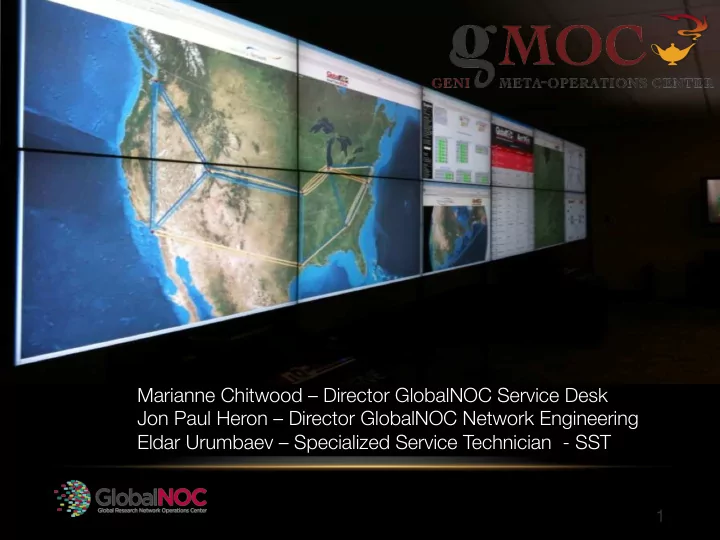

Marianne Chitwood – Director GlobalNOC Service Desk Jon Paul Heron – Director GlobalNOC Network Engineering Eldar Urumbaev – Specialized Service Technician - SST 1

INDIANAPOLIS SERVICE DESK 2

BLOOMINGTON SERVICE DESK 3

WE ARE THE GMOC ü Monitor the GENI OpenFlow network (Mesoscale) ü Emergency Stop ü GENI Experimenter Support ü Manage network/systems alarms, outages, maintenances, Mesoscale provisioning, maintenance freezes, demo reservations and disruptive experiment reservations (and post-mortem) ü Notifications, Escalation and Reporting ü Engineering configuration (Internet2, MOXI, Indiana) and new Aggregate site, regional and GENI rack turn-up ü GMOC Measurement API for GENI Aggregates ü Develop new tools for network monitoring and measurement 4

GMOC DATABASE IMPROVEMENTS ü UI re-design and improvements – Emergency Stop contacts, etc… - This was helpful during recent Emergency Stop Tests with Racks ü Backend re-design including data download from GMOC-DB ü A couple of storyboards: 5

GMOC Measurement 6

GENI AGGREGATES TURN-UP VIA GMOC 7

MONITOR, TRACK AND MANAGE 8

OPS CALENDARS (WEB, ICAL, RSS) 9

GENI EMERGENCY STOP PROCESS http://gmoc.grnoc.iu.edu/gmoc/documents.html 10

GMOC ITEMS SINCE LAST GEC ü Emergency Stop Tests with Racks ü Bi-Weekly Operations Report on Network Core call - including Racks Outages/Maintenances 11

GENI REGIONALS IN GMOC MONITORING Ø CENIC (COTN – California OpenFlow Testbed Network) * Ø NYSERNet (New York) * Ø UEN (Utah Education Network) Ø SOX (Southern Crossroads) Ø MOXI-CIC and MOXI-Indiana GigaPoP (WiscNet soon!) * New since last GEC 12

GENI RACKS IN GMOC MONITORING InstaGENI InstaGENI ü BBN – GPO Lab Rack ü Utah ü Kentucky * ü Northwestern * ExoGENI ExoGENI ü BBN – GPO Lab Rack ü RENCI ü FIU-SCIS - Florida International University School of Computer and Information Sciences (Almost) * ü UH - University of Houston (Almost) * * New since last GEC 13

FUTURE GENI OPERATIONS SUPPORT NEEDS, CHALLENGES, IDEAS? ü Targeted Notifications argeted Notifications ü Topology (for Emergency Stop and other needs) opology (for Emergency Stop and other needs) ü Cir Circuits and Nodes in GMOC-DB cuits and Nodes in GMOC-DB ü Pr Pro-active monitoring/alerting o-active monitoring/alerting ü Disruptive Experiments Post-mortems Disruptive Experiments Post-mortems ü Post-mortems for other Post-mortems for other OpenFlow OpenFlow specific specific operational issues operational issues ü Tracking outages at Regionals and other dynamic racking outages at Regionals and other dynamic VLAN service pr VLAN service providers (ION, AL2S)? oviders (ION, AL2S)? ü Maintenance Fr Maintenance Freeze (Scale?) eeze (Scale?) 14

THANK YOU QUESTIONS ? Contact Us ü gmoc@grnoc.iu.edu ü http://gmoc.grnoc.iu.edu ü 317-274-7783 Subscribe to Ops Calendars (Web, iCal, RSS): http://gmoc.grnoc.iu.edu/gmoc/index/support/gmoc-operations- calendars.html 15
