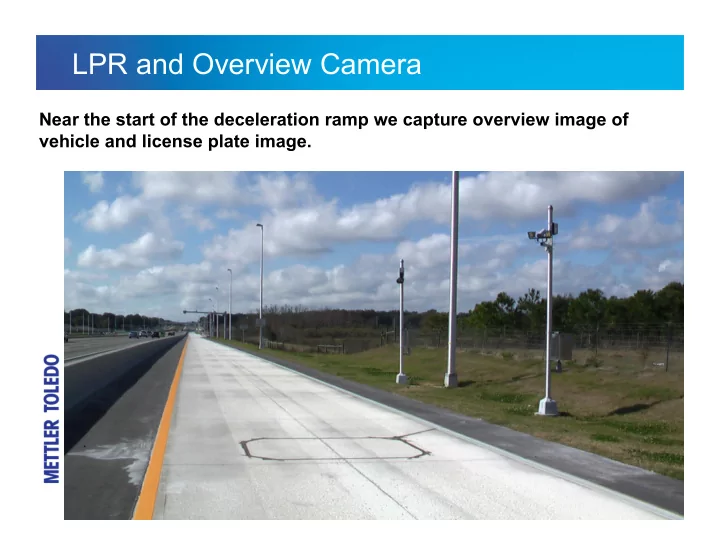

LPR and Overview Camera Near the start of the deceleration ramp we capture overview image of vehicle and license plate image. Overview camera Sensors installed LPR camera and IR light LPR/Overview camera and wireless interface enclosure 1

LPR Image and OCR Read Here is the image taken by the LPR, which Overview camera interfaces with databases and States central server. LPR camera and IR light LPR/Overview camera and wireless interface enclosure 2

Weigh In Motion (WIM) Scales The next component in the deceleration ramp is the Weigh In Motion (WIM) scales. These scales weigh, determine speed, and axle spacing. Overview camera Sensors installed LPR camera and IR light LPR/Overview camera and wireless interface enclosure 3

Virtual Graphics Panel with WIM data Once the vehicle crosses the WIM scale the vehicle record is displayed on the graphical user interface (GUI). Along with the vehicle record this GUI provides a graphical view of the traffic flow within the facility. Overview camera Sensors installed LPR camera and IR light LPR/Overview camera and wireless interface enclosure 4

Sort Signals Now that the system has read license plate, searched database, determined dimensions, and weighed the vehicle it now automatically directs non violators to the bypass lane (left) or violators to static scale lane (right) as in the picture. Overview camera Sensors installed LPR camera and IR light LPR/Overview camera and wireless interface enclosure 5

Static Scale Next the vehicle is sequenced on the static scale via red/green traffic lights. Overview camera Sensors installed LPR camera and IR light LPR/Overview camera and wireless interface enclosure 6

Static Scale Application Once vehicle is stopped on the scale the system uses the WIM axle spacing and platform weights to determine static scale violations. Overview camera Sensors installed LPR camera and IR light LPR/Overview camera and wireless interface enclosure 7

VMS Sign VMS signs close up, which also alternates message between English and Spanish. Overview camera Sensors installed LPR camera and IR light LPR/Overview camera and wireless interface enclosure 8
