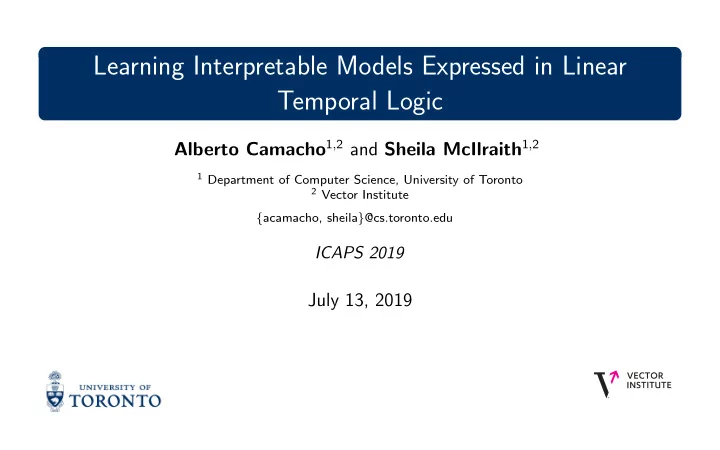

Learning Interpretable Models Expressed in Linear Temporal Logic Alberto Camacho 1 , 2 and Sheila McIlraith 1 , 2 1 Department of Computer Science, University of Toronto 2 Vector Institute { acamacho, sheila } @cs.toronto.edu ICAPS 2019 July 13, 2019
Linear Temporal Logic on Finite Traces (LTL f ) LTL f extends propositional logic with temporal operators: next : ϕ until : ψ U χ always : � ϕ eventually : ♦ ϕ release : ψ R χ It is useful to define: macro final to denote the end of trace: final := ¬ ⊤ operator weak next: ϕ ≡ final ∨ ϕ We presume LTL f formulae are written in Negation Normal Form , where negations are pushed to the level of propositional formulae. 2 / 19
Passive Learning from Positive and Negative Example Traces Passive Learning Learn an LTL f formula that is consistent with a given set of positive (+) and negative ( − ) examples. • Examples are finite sequences of states • States are truth assignments to atomic propositions (represented as sets). Examples + : { p } { p } { q } − : { p } { r } { q } + : { p } { q } Model Passive − : { p } { r } p U q Learner − : { r } { q } − : { q , r } + : { p , r } { q } 3 / 19
Related Work There exist related work in: Learning automata (e.g. L* (Angluin, 1987)) And very (very!) recent work in learning LTL: Neider and Gavran (2018) learns LTL temporal properties (interpreted over infinite traces) that are consistent with a given set of finite observation traces. Shah et al. (NeurIPS 2018), and Kim et al. (IJCAI 2019) adopted a non-exact, Bayesian approach to infer models in terms of behaviors encoded as LTL templates. 4 / 19
Skeleton Templates for Alternating Finite Automata (AFA) • A tree expansion is accepting if all the leaf nodes are accepting. • An state trace e = e 1 . . . e N satisfies ϕ iff A ϕ has an accepting tree expansion. ⊤ ⊤ A β A β A α A α A α A α A α ⊤ (a) A α ∧ β (b) A α ∨ β (c) A α (d) A (e) A α α p A β ⊤ A β A α ⊤ A α ⊤ A α ⊤ p q ¬ r ⊤ (f) A α U β (g) A α R β (h) A α (i) A p (j) A p ∨ ( q U ¬ r ) 5 / 19
Passive Learning of LTL f Theorem The following algorithm returns a minimal LTL f formula that is consistent with a set of positive and negative examples. 1: Fix the size of the formula to N = 1 2: Construct an AFA A ϕ with N skeletons that: accepts all positive examples rejects all negative examples 3: If no AFA exists, increment N by one and go to 2. 4: Extract an LTL f formula ϕ from the structure of A ϕ . Return ϕ . We use SAT to find A ϕ . Recall: SAT is the problem of finding an assignment to variables V such that a boolean formula holds true. 6 / 19
Reduction to SAT Skeletons s 1 , s 2 , . . . s N AFA is rooted at skeleton s 1 Each skeleton is one of one type: SkType( s ) := { AND( s ) , OR( s ) , NEXT( s ) , WNEXT( s ) , UNTIL( s ) , RELEASE( s ) , EVENTUALLY( s ) , ALWAYS( s ) , LIT( s ) } Skeleton s has one associated skeleton subformula ‘alpha’ Skeleton s has one associated skeleton subformula ‘beta’ Skeleton s has one associated literal (used if LIT( s ) holds) Clauses: oneOf(SkType( s )) oneOf( { A( s , s ′ ) | s + 1 ≤ s ′ < N } ) oneOf( { B( s , s ′′ ) | s + 1 < s ′′ ≤ N } ) oneOf( { L( s , v ) | 1 ≤ v ≤ | V |} ∪ { L( s , − v ) | 1 ≤ v ≤ | V |} ) 7 / 19
Enforcing Acceptance of Positive Examples Notation: • state trace example e • timestep t ∈ { 1 , . . . , | e |} • v ∈ V represent state variables. • skeleton index s ∈ { 1 , . . . N } Clauses: For each positive example e and skeleton s : • RUN( e , 1 , 1) has to hold. • Implication clauses for each LTL f operator. Subformula Timestep Implication clauses for a positive example RUN( e , t , s ′ ) ← RUN( e , t , s ) ∧ AND( s ) ∧ A( s , s ′ ) α ∧ β 1 ≤ t < | e | RUN( e , t , s ′′ ) ← RUN( e , t , s ) ∧ AND( s ) ∧ B( s , s ′′ ) RUN( e , t + 1 , s ) ← RUN( e , t , s ) ∧ NEXT( s ) ∧ A( s , s ′ ) 1 ≤ t < | e | α ⊥ ← RUN( e , | e | , s ) ∧ NEXT( s ) ∧ A( s , s ′ ) t = | e | 8 / 19
Enforcing Rejection of Negative Examples How to enforce rejection of negative examples? • Naive way: enforce that all tree expansions are rejecting. This may be problematic because the number of tree expansions can be massive. • Clever way: enforce some accepting tree expansion in the dual of the AFA being learned. 9 / 19
Dualizing an AFA Skeleton Structure If A ϕ is an skeleton structure for LTL f formula ϕ , then A dual( ϕ ) is an skeleton structure for LTL f formula ¬ ϕ , where dual( p ) := ¬ p , p ∈ AP dual( α ∨ β ) := dual( α ) ∧ dual( β ) dual( ¬ p ) := p , p ∈ AP dual( α ∧ β ) := dual( α ) ∨ dual( β ) dual( α ) := dual( α ) dual( α U β ) := dual( α ) R dual( β ) dual( α ) := dual( α ) dual( α R β ) := dual( α ) U dual( β ) In other words, A dual( ϕ ) accepts the complement language of A ϕ . 10 / 19
Enforcing Rejection of Negative Examples with Dualized Skeletons Notation: • state trace example e • timestep t ∈ { 1 , . . . , | e |} • skeleton index s ∈ { 1 , . . . N } If e is a negative example: RUN( e , t , s ′ ) ← RUN( e , t , s ) ∧ OR( s ) ∧ A( s , s ′ ) RUN( e , t , s ′′ ) ← RUN( e , t , s ) ∧ OR( s ) ∧ B( s , s ′′ ) And the dualization of skeletons that represent variables is: If v ∈ e [ t ]: ⊥ ← RUN( e , t , s ) ∧ LIT( s ) ∧ L( s , v ) If v �∈ e [ t ]: ⊥ ← RUN( e , t , s ) ∧ LIT( s ) ∧ L( s , ¬ v ) 11 / 19
Active and Passive Learning Examples + : { p } { p } { q } − : { p } { r } { q } query + : { p } { q } Model Passive Active Oracle − : { p } { r } Learner p U q Learner − : { r } { q } response − : { q , r } + : { p , r } { q } (b) Interaction between the active (a) Workflow of passive learning learner and the oracle. Passive Learning Learn an LTL f formula that is consistent with a given set of positive (+) and negative ( − ) examples. Active Learning Learn an LTL f formula from interaction with an oracle, by performing membership and equivalence queries. 12 / 19
Sample complexity LTL f to DFA is worst-case double exponential. Learning minimal DFA with N states needs a number of informative examples that is polynomial in N (cf. Angluin 1987). Question: How many examples do we need to learn a minimal LTL f formula? Theorem Active learning of an LTL f formula ϕ can be done with a number of queries exponential in the size of ϕ . Theorem Passive learning of an LTL f formula ϕ can be done with a number of informative examples exponential in the size of ϕ . We can offer exponentially smaller bounds on the number of examples. 13 / 19
Practical Applications Few-shot learning Behavior Classification Plan Intent and Recognition Reward Function Learning Knowledge Extraction LTL Mining 14 / 19
Experiments Number of positive ( | E + | ) and negative ( | E − | ) examples needed for active learning of each LTL f formula, and comparison with the number of characteristic samples (CS) that uniquely define minimal DFA with S states. LTL f learning DFA | AP | | E + | | E − | Time Target || S → 3 1 4 0.3 40 4 32 p p ∧ q 3 2 5 0.5 29 4 32 ( p ∧ q ) 3 5 5 0.4 42 4 32 ( p ∧ q ) 3 5 6 0.4 29 4 32 p U q 3 3 4 0.2 22 3 24 p R q 3 3 3 0.3 22 3 24 15 / 19
Active Learning Run Time (s) 10 2 10 0 # Examples 20 0 2 3 4 5 6 7 8 9 10 11 Formula Size Figure: Run time (top) and number of examples needed (bottom) to learn a variety of LTL f formulas of different size. 16 / 19
Behavior Classification 4 different behaviours in the Openstacks planning benchmark. 1000 plans generated per behavior (using Top-k planner). Can we learn LTL f formulae that discriminate between behaviours (K examples per behavior)? e.g. (( not ( shipped o5 ))) U((( stacks avail n4 ))) Accuracy Precision Recall 1.00 1.00 1.00 0.75 0.75 0.75 0.50 0.50 0.50 0.25 0.25 0.25 0.00 0.00 0.00 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 K K K LTL f learning via SAT takes 0 . 1 seconds In contrast, deep learning LSTM time series classification (Karim et al 2018) takes 16 seconds. 17 / 19
Conclusions Novel mechanism to do passive and active learning of LTL f formulae Exploiting duality of the AFA to learn from negative examples Exponential bounds on the number of examples (exponentially lower than with DFA) Identification of applications 18 / 19
Thank you. Questions? 19 / 19
