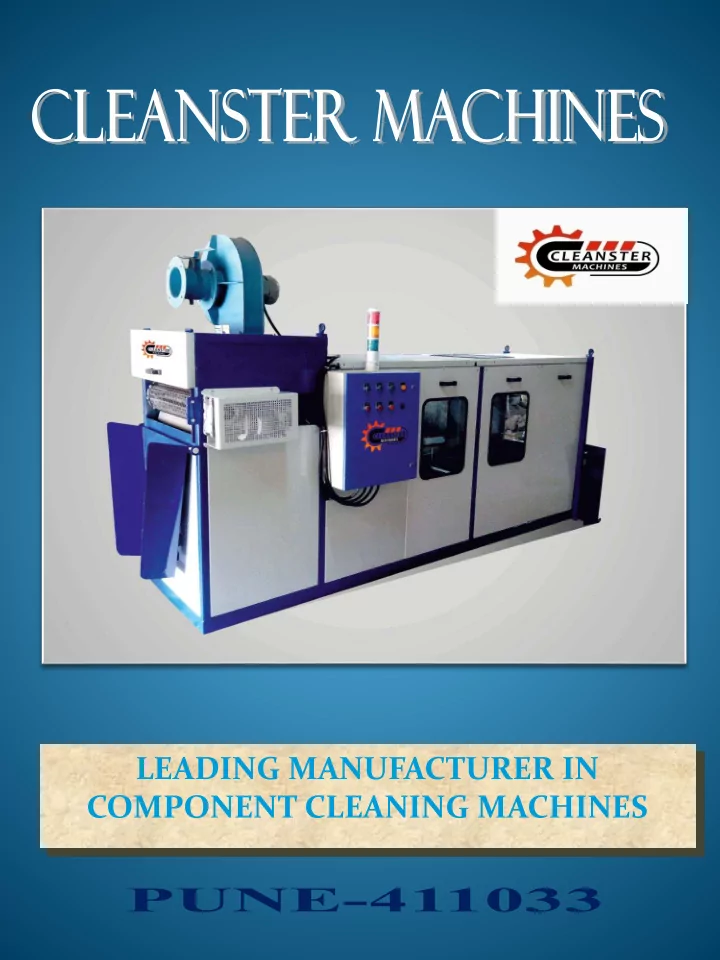

LEADING MANUFACTURER IN COMPONENT CLEANING MACHINES COMPANY PROFILE - PDF document

LEADING MANUFACTURER IN COMPONENT CLEANING MACHINES

COMPANY PROFILE  Cleanster Machines started as proprietary firm for Industrial component cleaning machines requirements of engineering industries. Initially a marketing firm - developed into full-fledged manufacturing set up.  It has its own production, designing, commissioning and after sales and servicing team.  Cleanster Machines designs and manufacturers component cleaning & it’s filtration systems for individual machines as well as centralised applications to cater cluster of machines.  The component cleaning machines & filtration systems are manufactured and installed for Cold Rolling Mills – ferrous / Non-Ferrous, Bearing Industries, Machine tool, Automobile, Polymer Industries etc.  We are proud to inform that Cleanster Machines is the only organisation in our country who has successfully developed, installed & commissioned Component Cleaning Machine it’s filtration systems & Leak Test Machines.

PRODUCT RANGE ROTARY BASKET TYPE CLEANING MACHINE WITH BASKET DIA – 250 mm, 600 mm, 800 mm, 1000 mm & 1200 mm. CABINET TYPE COMPONENT CLEANING MACHINE WITH FIXTURE TROLLEY OPERATED. CABINET TYPE COMPONENT CEALNING MACHINE WITH MULTI-OPERATION IN SINGLE STAGE. CABINET TYPE CLEANING MACHINE WITH CAGE ROTATION FOR CYLINDER HEAD, CYLINDER BLOCK, BIN/TRAY CLEANING & OTHER MACHINED PARTS. CONVEYORISED TWO/THREE STAGE ( DEGRESSING /RINSING/AIR BLOW) COMPONENT CLEANING MACHINE. ULTRASONIC CLEANING MACHINE RUST PREVENTIVE DUNKING MACHINE MILLIPORE EQUIPMENT WITH DIGITAL WEIGHING BALANCE & OVEN COMPONENT CLEANING MACHINE & IT’S SPARE BELT TYPE /DISK TYPE /DRUM TYPE OIL SKIMMER PAPER BAND FILTER / GRAVITY FILTER , COMPACT BAND FILTER , SIMPLEX /DUPLEX FILTER ,OIL COALESCER ,MIST COLLECTOR , SPARY NOZZLE & AIR NOZZLES.

• LIST OF MAJOR CUSTOMERS :- AUTOMOBILE INDUSTRY Bajaj Auto Limited Pune Premier Automobiles Limited Pune Ognibene Pune Mahindra & Mahindra Chakan Windal Precision Auto Component Pune BEARING INDUSTRY Texspin Bearing Limited Ahmedabad NRB Bearing Pvt.Ltd. Jalana ENGINEERING INDUSTRY Indian Seamless Steels & Alloys ltd. Jejuri Manugraph industries Ltd. Kolhapur Ghatge Patil Industries Ltd Kolhapur Enkei Cast Alloys Ltd. Pune Involute Technologies Pune . MACHINE TOOL DIVISION Grindmaster Machines Pvt. Ltd. Aurangabad Shree Engg. Pvt.Ltd. Bhosari,Pune Sparxonic india Pvt.Ltd. Pune Narmada Industry A’ Nagar STEEL & OTHER ROLLING INDUSTRY Jindal Iron & Steel Limited Tarapur Gaurang Steels Gaziabad Shree Sidhadata Steels Gaziabad Shree pre-Coated Steels Pune Manaksia Ltd Haldia Ess Dee Aluminium Daman Hindalco Ltd, kalwa Meta Strips Ltd. Margaon, Goa POLYMER INDUSTRIES Garden Silk Mills Ltd. Surat JBF Industries Ltd Silwasa Polygenta Engineering Nasik

OUR ACHIEVEMENTS  Successfully executed the installation of Industrial Component Cleaning Machines & it’s filtration system & Leak Test Machines . In Pune & all over India .  Executed an order for Pipe (Tube) cleaning Machine Having different pipe Diameter .  We have indigenously developed Leak Test Machine . In This number of component can check in one machine with air & water test (Dry & wet Test) .

MULTY-STAGE CLEANING MACHINE (R 3272- SERIES ) MORE THAN 2 CHAMBER DEPENING ON COMPONENT DIRT STAGE MAY BE DEGRESING, RINSING, HOT AIR BLOW, COLD AIR BLOW. CYCLE TIME FOR R 3272 SERIES MODEL IS AROUND 2 min. FOR EACH STATION.

• R 3272 Series high performance in-line conveyor cleaner for continuous cleaning of parts and used for higher throughout. • Packaged in Two and multi - stage process with single parts or parts in batches. • The working principle is based on a linear movement of parts through the process, parts are conveyed through the different stages of the process at controlled and changeable speed. Parts can be moved in continuous or indexed for precision cleaning of holes and recesses. • Conveyors can be designed in many ways with steel belt, chain and roller type to carry parts or baskets and with necessary parts holding fixtures.

ROTARY BASKET CLEANING MACHINE R 7272 SERIES ROTARY BASKET TYPE CLEANING MACHINE WITH BASKET DIAMETER :- 250 mm, 600 mm, 800 mm,1000 mm, 1200 mm & 1300mm

R 7272 SERIES (MODELS) MODEL R7272A R7272B R7272C R7272D R7272E STANDARD φ 600 φ 800 φ 1000 φ 1150 φ 1300 mm CLEANING AREA CLEANING 125-250 150-275 150-350 200-300 200-325 mm HEIGHT LOADING 850 900 900 950 950 mm HEIGHT MACHINE 1200 1500 1700 2100 2100 mm WIDTH MACHINES 1500 1750 2350 2700 2750 mm LENGTH MACHINE 1500 1650 1800 1850 1850 mm HEIGHT MAX. LOAD 120 160 240 275 325 Kg TANK 275 300 350 375 375 Liters. CAPACITY TEMP. 60-65 60-65 65-70 65-70 65-70 ⁰C PUMP 100/150 150/180 140/180 220/280 250/300 L/min CAPACITY PRESSURE 12-14 12-14 12-16 14-16 14-16 Bar HEATING 09 09 09 12 12 kW CYCLE TIME FOR R 7272 SERIES MODEL IS AROUND 3-4 Min. INCLUDING AIR PURGE R 7272 SERIES MODEL ALSO AVAILABLE IN DIA 250 mm

• The R 7272 - Clean is an industrial quality, water based cleaning machine built for tough cleaning needs. • These machines have been developed to provide effective, fast and economical cleaning. • These are well equipped as standard but also available are various optional extras to bring better cleaning quality benefits, handling and productivity who have very specific requirements above and beyond the standard specifications. • Suitable for parts machining industries, general engineering and maintenance processes.

LEAK TEST MACHINE AVAILABLE WITH PRESSURE DECAY TEST,PRESSURE RISE TEST,SOAP SOLUTION BUBBLE TEST.

BIN CLEANING MACHINE (R 5272 - SERIES) SUITABLE FOR ALL TYPE OF BINS CLEANING

R 5272 series type cleaning machine are multi - stage, single chamber design built for automatic washing rinsing with water based cleaning • These washers can also be customized for surface treatments prior to painting process. • Suitable for medium sized to large size parts, machined bodies and batch type production . • R5272 series (single stage ) also available in inside rotary cage ,rotary basket & sliding basket (operate with the help of cylinder ) models .

SCREW OR REVOLVING DRUM TYPE CLEANING MACHINES( R 7282 SERIES )

This is a single, multi - stage cleaner with a drum rotating arrangement, washing chambers, liquid tanks (Degreasing& Rinsing), component rotation drum /screw arrangement, Hooper for easy load / unload, washing pumps (Spray), heating system, liquid filtration system and PlC based control panel This is suitable for small parts and for higher productivity with part immersion and spray combination for effective cleaning of parts. The parts to be cleaned are sprayed with a high flow via the spray bars continuously , which rotate either through spray pressure or a mechanical drive. The spray bars are mounted with flat pattern nozzles, which provide efficient cleaning results. The machines are fully insulated with stainless steel panels, and therefore the wash water can be heated up to 85°C. Normal working temperature is from 60-75°C

ULTRASONIC DUNKING MACHINE

Ultrasonic cleaning uses sound waves to create million of small bubble in a tank of solution. The parts to be cleaned are submerged in the solution & the bubble are formed & “expolde”they remove any dirt, grease, Carbon etc. this method also work very well Suitable for pre - cleaning of complex shape components, surface treatments like de-greasing, de-rusting, phosphating, passivation, rinsing, rust preventive. application and more. A variety of configuration meets all customers requirement

GRAVITY BAND FILTER & OIL COALECERS Oil Coalescers : Oil Coalescers help to separate oil droplets by gravity which is in suspension in the wash tank bath. It withdraws water and oil, separates them and returns the oil-free water, while the oil is collected in a separate container.

MOBILE FILTRATION UNITS Oil skimmers : Oil skimmer is a device which helps remove surface oil. Skimmer is mounted in the selection location. An oil is absorbed by the teflon tape and is removed for example from bath to another external container (spillomatic). The illustration shows the way the surface oil. Skimmer is the cheapest and most effective method to remove surface oil. It is a simple devices that works may years with minimal maintenance costs Bag Type Filters : If coarse dirt is to be collected, a mesh type bag is used. For low flows and fine filtration requirements polyester felt bags are proposed. These are provided in simplex or duplex type housings with disposable filter bags.

TUBE (PIPE) CLEANING MACHINE

COMPARISON BETWEEN MANUAL WASH & AUTOMATIC WASH SR.NO. PARAMETERS MANUAL AUTOMATIC 01 TIME MORE LESS 02 PRODUCTION LOW HIGH RATE 03 SAFETY NO YES TOTALLY SAFETY SAFE 04 SKILL YES NO SKILL 05 QUALITY LOW HIGH 06 COST
