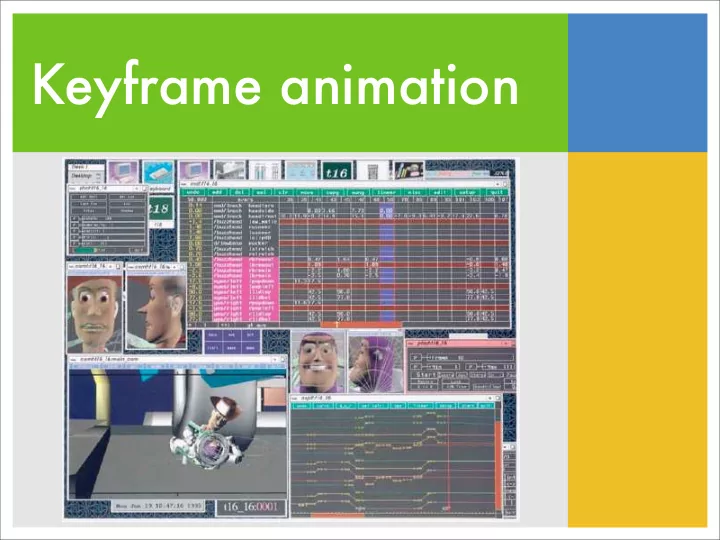

Keyframe animation

• Process of keyframing • Keyframe interpolation • Hermite and Bezier curves • Splines • Speed control

Oldest keyframe animation • Two conditions to make moving images in 19th century • at least 10 frames per second • a period of blackness between images

2D animation • Highly skilled animators draw the keyframes • Less skilled (lower paid) animators draw the in-between frames • Time consuming process • Difficult to create physically realistic animation

3D animation • Animators specify important keyframes in 3D • Computers generates the in-between frames • Some dynamic motion can be done by computers (hair, clothes, etc) • Still time consuming; Pixar spent four years to produce Toy Story

General pipeline • Story board • Keyframes • Inbetweens • Painting

Storyboards • The film in outline form • specify the key scenes • specify the camera moves and edits • specify character gross motion • Typically paper and pencil sketches on individual sheets taped on a wall

“A bug’s life” http://www.pixar.com/featurefilms/abl/behind_pop4.html

The process of keyframing • Specify the keyframes • Specify the type of interpolation • linear, cubic, parametric curves • Specify the speed profile of the interpolation • constant velocity, ease-in-ease-out, etc • Computer generates the in-between frames

A keyframe • In 2D animation, a keyframe is usually a single image • In 3D animation, each keyframe is defined by a set of parameters

Keyframe parameters • What are the parameters? • position and orientation • body deformation • facial features • hair and clothing • lights and cameras

• Process of keyframing • Keyframe interpolation • Hermite and Bezier curves • Splines • Speed control

In-between frames • Linear interpolation • Cubic curve interpolation

Linear interpolation Linearly interpolate the parameters between keyframes t = 5 t = 10 t = 0 t = 15 end key start key x = x 0 + t − t 0 ( x 1 − x 0 ) t 1 − t 0 end time start time

Cubic curve interpolation We can use three cubic functions to represent a 3D curve Each function is defined with the range 0 ≤ t ≤ 1 bold: a vector or a matrix Q ( t ) = [ x ( t ) y ( t ) z ( t )] italic: a scalar or vectors Q x ( t ) = a x t 3 + b x t 2 + c x t + d x a · b : inner product a × b : cross product Q y ( t ) = a y t 3 + b y t 2 + c y t + d y ab : multiplication matrices Q z ( t ) = a z t 3 + b z t 2 + c z t + d z multiplication A · B : multiplication AB :

Compact representation Q ( t ) = [ Q x ( t ) Q y ( t ) Q z ( t )] Q x ( t ) = a x t 3 + b x t 2 + c x t + d x Q y ( t ) = a y t 3 + b y t 2 + c y t + d y Q z ( t ) = a z t 3 + b z t 2 + c z t + d z   a x a y a z � t 3 b x b y b z   t 2 1 � C = T = t   c x c y c z   d x d y d z

Compact representation   a x a y a z � t 3 b x b y b z   t 2 1 � Q ( t ) =  = TC t   c x c y c z  d x d y d z � 3 t 2 d ˙ 0 � 2 t 1 dt Q ( t ) = C Q =

Constraints on the cubics How many constraints do we need to determine a cubic curve? 4 Redefine C as a product of the basis matrix M and the geometry matrix G C = M · G     m 11 m 12 m 13 m 14 G 1 x G 1 y G 1 z � t 3 m 21 m 22 m 23 m 24 G 2 x G 2 y G 2 z     t 2 1 � Q ( t ) = t     m 31 m 32 m 33 m 34 G 3 x G 3 y G 3 z     m 41 m 42 m 43 m 44 G 4 x G 4 y G 4 z = T · M · G

• Process of keyframing • Keyframe interpolation • Hermite and Bezier curves • Splines • Speed control

Hermite curves • A Hermite curve is determined by P 4 R 4 • endpoints P 1 and P 4 • tangent vectors R 1 and R 4 at the P 1 R 1 endpoints • Use these elements to construct geometry matrix   P 1 x P 1 y P 1 z P 4 x P 4 y P 4 z   G h =   R 1 x R 1 y R 1 z   R 4 x R 4 y R 4 z

Hermite basis matrix Given desired constraints: 1. endpoints meet P 1 and P 4 � 0 1 � 0 0 Q (0) = · M h · G h = P 1 � 1 1 � 1 1 Q (1) = · M h · G h = P 4 2. tangent vectors meet R 1 and R 4 ˙ � � 0 0 1 0 Q (0) = · M h · G h = R 1 ˙ � � 3 2 1 0 Q (1) = · M h · G h = R 4

Hermite basis matrix We can solve for basis matrix M h     P 1 0 0 0 1 P 4 1 1 1 1      = G h =  · M h · G h     R 1 0 0 1 0   R 4 3 2 1 0 − 1     0 0 0 1 2 − 2 1 1 1 1 1 1 − 3 3 − 2 − 1     M h = =     0 0 1 0 0 0 1 0     3 2 1 0 1 0 0 0

Hermite Blending functions Let’s define B as a product of T and M   2 − 2 1 1 � t 3 − 3 3 − 2 − 1   t 2 1 � B h ( t ) = t   0 0 1 0   1 0 0 0 B h ( t ) indicates the weight of each element in G h B h ( t ) P 1 P 4   P 1 P 4   Q ( t ) = B h ( t ) ·   R 1   R 4 R 1 t R 4

Bézier curves Indirectly specify tangent vectors by specifying two intermediate points R 1 P 3 R 1 = 3( P 2 − P 1 ) P 4 P 2 R 4 = 3( P 4 − P 3 ) P 1 R 4   P 1 P 2   G b =   P 3   P 4

Bézier basis matrix Establish the relation between Hermite and Bezier geometry vectors       P 1 P 1 1 0 0 0 P 4 0 0 0 1 P 2       G h =  = M hb · G b  =       R 1 − 3 3 0 0 P 3     R 4 P 4 0 0 − 3 3

Bézier basis matrix Q ( t ) = T · M h · G h = T · M h · ( M hb · G b ) = T · ( M h · M hb ) · G b = T · M b · G b   − 1 3 − 3 1 3 − 6 3 0   M b = M h M hb =   − 3 3 0 0   1 0 0 0 http://www.math.ucla.edu/~baker/java/hoefer/Bezier.htm

Bézier blending functions Bezier blending functions are also called Bernstein polynomials   − 1 3 − 3 1 � t 3 3 − 6 3 0   t 2 1 � B b ( t ) = t   − 3 3 0 0   1 0 0 0 B b ( t )   P 1 P 1 P 4 P 2   Q ( t ) = B b ( t ) · P 2 P 3   P 3   P 4 t

Complex curves What if we want to model a curve that passes through these points? Problem with higher order polynomials: Wiggly curves No local control

• Process of keyframing • Keyframe interpolation • Hermite and Bezier curves • Splines • Speed control

Splines • A piecewise polynomial that has locally very simple form, yet be globally flexible and smooth • There are three nice properties of splines we’d like to have • Continuity • Local control • Interpolation

Continuity • Cubic curves are continuous and differentiable • We only need to worry about the derivatives at the endpoints when two curves meet

Continuity C 0 : points coincide, velocities don’t C 1 : points and velocities coincide What’s C 2 ? points, velocities and accelerations coincide

Local control • We’d like to have each control point on the spline only affect some well-defined neighborhood around that point • Bezier and Hermite curves don’t have local control; moving a single control point affects the whole curve

Interpolation • We’d like to have a spline interpolating the control points so that the spline always passes through every control points • Bezier curves do not necessarily pass through all the control points

B-splines • We can join multiple Bezier curves to create B- splines • Ensure C 2 continuity when two curves meet

Continuity in B-splines Suppose we want to join two Bezier curves ( V 0 , V 1 , V 2 , V 3 ) and ( W 0 , W 1 , W 2 , W 3 ) so that C 2 continuity is met at the joint V 1 W 1 V 2 W 2 V 0 W 3 V 3 W 0 Q v (1) = Q w (0) V 3 = W 0 Q v (1) = ˙ ˙ Q w (0) V 3 − V 2 = W 1 − W 0 Q v (1) = ¨ ¨ Q w (0) V 1 − 2 V 2 + V 3 = W 0 − 2 W 1 + W 2 W 2 = V 1 + 4 V 3 − 4 V 2

Continuity in B-splines What does this derived equation mean geometrically? W 2 = V 1 + 4 V 3 − 4 V 2 What is the relationship between a, b and c, if a = 2b - c? W 0 = V 3 V 1 V 2 B 1 W 1 = 2 V 3 − V 2 V 3 = W 0 V 0 W 2 = V 1 + 4 V 3 − 4 V 2 W 1 = 2(2 V 3 − V 2 ) − (2 V 2 − V 1 ) W 2 = 2 W 1 − B 1 W 3 What is B 2 ? B 2

de Boor points Instead of specifying the Bezier control points, let’s specify the corners of the frames that form a B-spline These points are called de Boor points and the frames are called A-frames

de Boor points What is the relationship between Bezier control points and de Boor points? V 0 = 1 � B 0 + 2 3( B 1 − B 0 ) + B 1 + 1 � 3( B 2 − B 1 ) 2 V 1 = B 1 + 1 3( B 2 − B 1 ) V 2 = B 1 + 2 3( B 2 − B 1 ) V 3 = 1 � B 1 + 2 3( B 2 − B 1 ) + B 2 + 1 � 3( B 3 − B 2 ) 2 Verify this by yourself

de Boor points What about the next set of Bezier control points, W 0 , W 1 , W 2 , and W 3 ? What de Boor points do they depend on? B1, B2, B3 and B4. Verify it by yourself
