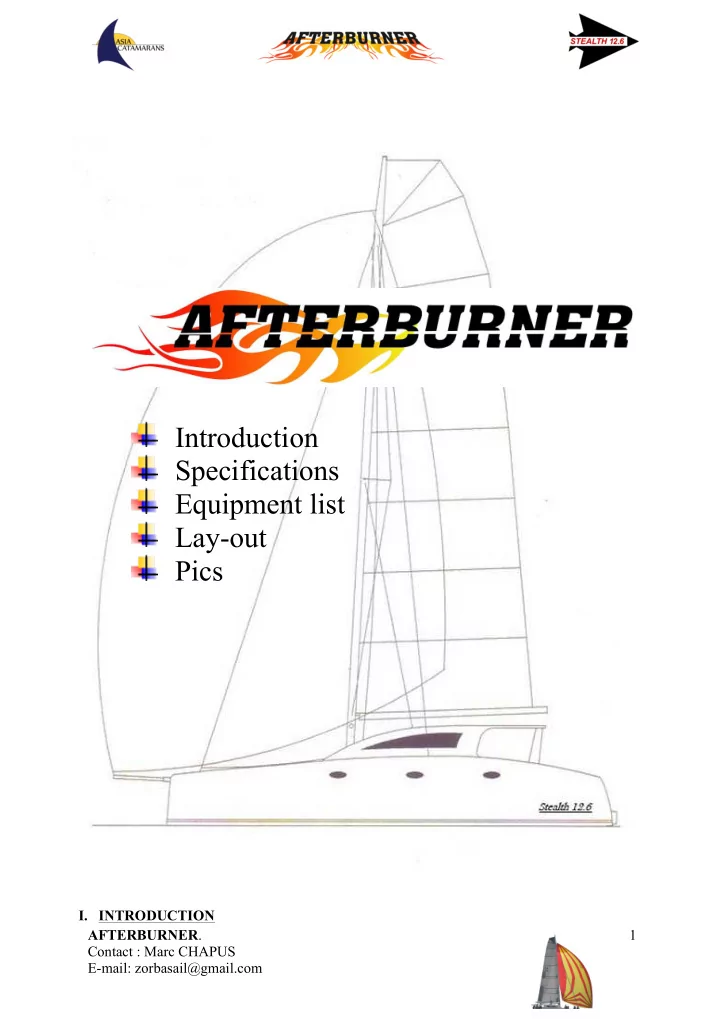

Introduction Specifications Equipment list Lay-out Pics I. INTRODUCTION AFTERBURNER . 1 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
The STEALTH Design: Designer Alan Carwardine , has always focused his designs on fast boats. His current range of sailing catamarans, the STEALTH series, is no exception with stylish lines, large open living areas and very fast. With excellent vision from the twin steering stations and functional sailing systems AFTERBURNER is a pure pleasure to sail under regattas and during cruise. “ AFTERBURNER ” is the second-generation redesign of ‘Sidewinder’, which was until recently the fastest multihull in all of SE Asia with the most prestigious lines of honors. Afterburner is a brand new catamaran, lighter, faster, and it’s the latest carbon technology comparing to “Sidewinder”. She was launched the 2nd of April 2013 and is Thai registered. She has already been active on the regatta course with race wins in the ACYC, line honors in the Multihull regatta 2013, Multihull Racing class overall winner at the 2014 Royal Langkawi International regatta with line honors and winner of the Malaysian Multihull challenge cup 2014. II. GENERAL INFORMATION LOA: 12.6 m – 41.34ft Beam OA: 6.70 m – 21.98ft Hull width widest: 1.20m Draft shallow: 0.37m – 1.21ft Draft deep: 2.00m -- 6.56ft Displacement: 3300 kg Mast Height: 16.9 m Sail areal: 91m ² (61m ² + 30m ² ) Std Spinnaker: 120m ² III. CONSTRUCTION The boat is built in Foam/Epoxy sandwich construction. Hulls, Bulkheads and all structural parts are vacuum bagged. All structural components are built using at least 20% carbon fiber. 3 double cabins + 1 single. Upstairs Galley and saloon. 2 heads, 3 showers. Boat completes to a high standard painted inside and out with 2 packs paint. Nonskid particle deck finish. AFTERBURNER . 2 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
IV. INTERIOR DESCRIPTION The inside main saloon, galley and both head areas are painted in semi flat finish. The inside hull areas are painted in a speckle finish. Main saloon, galley and hull steps area have laminex ‘cherry and holly’ flooring. Both heads have white epoxy floor finish. Upholstery supplied in double cabin berths, both V berths and saloon settee/double day bed. V. STANDARD EQUIPMENT The boat includes as standard equipment the following: 1. Galley - Laminex bench top. Large gas cook top. SS sink with cold water faucet only. Foot pump for drinkable water. Large fridge/freezer built-in cabinet with 2 compartments Isotherm 200/65 unit. Built in large Cockpit ice box. Dropdown permanent table that forms a day bed. 2. Heads Both heads have large bowl electric toilets (TMC), hand basin with faucet and shower, upper mirrored cupboard. Solid doors on entrance. Shower bilge pumps under both head floors. 600 liter fresh water built in tank with Whale pressure pump. 3. Main saloon and V berths Drop down windscreen with large view to foredeck. Upward folding door across main entrance. Lockable doors. Forward V berths to hinge upwards for under berth storage and access forward. 4. Interior & cockpit Lights Most internal lights are LED. Saloon QLED white/red light 3 cycles touch switch. LED courtesy lights through boat and cockpit (Blue, white & red). External cockpit QLED white/red light 3 cycles touch switch. 5. Electrical Equipment 16 gang electric switch panel with digital read-out meter Xantrex-LinkPro. 2 x 210amp e-Solar GSM house batteries with isolator switch. 2 x 135 watt Kyocera solar panels permanently mounted on roof. AFTERBURNER . 3 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
6. Electronics, Navigation & Audio visual Raymarine 49E inbuilt VHF radio. 1 Chart plotter, Raymarine c-97GPS/MFD Sonar – Rest of the world charts at the port board steering station. (upgrade from standard) CD/radio JVC 636 with 4 speaker system. 7. Safety Gear . Basic Safety gear including Horseshoe, mercury light and bungs. Lifejackets 2 Fire extinguishers. V sheet (no flairs). 8. Exterior features. Twin helm with Lewmar SS wheels and leather covers. Ferrari trampoline. Transom mounted retractable rudders. Retractable daggerboards. Hatches and port lights by Lewmar. 9. Exterior Equipment Lewmar V2 electric windlass. One 27kg anchor + 8mm 45m chain and warp. 3 fenders, 4 mooring lines & Boat hook. Telescopic swim ladder. Davits. Aft deck cold water shower. Seawater deck wash pump with hose. 10. Machinery Twin 20hp Honda 4 stroke long shaft outboard engines with remote control. Mounted in front of each helm station. Vertically retracted into chamfer panel with no need for pod. 2 x Inbuilt S/S 130 liter fuel tanks with complete fuel filter system and valves. 2 x fuel gauges. 11. Deck gear Deck gear and sail controls by Lewmar with single handed and race crew systems in place. Winches: 3x45ST alloy black + 2x30ST alloy black + 4 winch handles + 3 winch pockets. 12. Rig Carbon fixed mast supplied by high-end manufacturer. Wire rigging, all dyneema halyards, slide rod batten car system. Carbon boom with top platform for easy sail storage. Carbon retractable prodder. Profurl R350 headsail furler. LED Nav. lights including mast anchor light. 13. Sail AFTERBURNER . 4 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
1 x semi high tech Kevlar racing mainsail (Doyle) with taffeta film, 7 battens with batten ends to take slide rod batten cars with boom bag. 1 x semi high tech Kevlar racing headsail (Doyle). 1 x full size nylon spinnaker (Quantum) with launch bag. OPTIONNAL EQUIPMENT ON AFTERBURNER (Prices in USD) Additional laminex flooring in both hulls & in central Cockpit. 1,580 Highfield 2,90m Tender – aluminum bottom – Hypalon tubes. 2,846 Sunbrella fabric covers on tubes. 511 2 wheels for tender. 104 5 HP Yamaha outboard. 1,136 Victron Blue Solar MPPT charge controller 409 3 rd 135 watt Kyocera solar panels. 384 1 pure sine wave Inverter Victron phoenix 800w. 563 4 Cabin fans Caframo Sirocco 336 Harken Bosun chair 159 2 nd anchor 20kg Delta and 15m 8mm chain. 302 2 nd 90m ² Spinnaker (Quantum). 3,218 2 nd Headsail – cruising jib (Doyle). 4,302 1 Spinnaker sock from Rolly Tasker (big kite) 447 Screecher with halyard line and sheet lines. (Quantum) 5,202 Screecher furler with furling line. 1,242 Replaced 1x45ST alloy black winch by 1x45EST (Electrical winch) --- alloy black for Main Halyard and tender hoisting. 908 Nexus NX pack 3 Wireless Wind gear (starboard steering position) 1,588 Upgrading of Electronics from Hummingbird to Raymarine c97. 689 Auto pilot Raymarine SmartPilot X-5 wheel. 1,440 Raymarine wireless S100 Pilot control. 390 1 binocular 7x50 Tahiti w/compass. 329 Weems & Plath Clock + Baro-125 Endurance black pearl. 340 1 Ritchie NC-120 compass (upgrade) 314 2 Aluminum deck chairs. 232 Cutlery, dinner service, galley utensil 367 Bedding double set 735 TOTAL OPTIONAL EQUIPMENT ON AFTERBURNER: USD 30,073 AFTERBURNER price: USD 375,000 EURO 272,000 AFTERBURNER . 5 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
AFTERBURNER - 7 Berth Layouts – Laminex in Hulls & Cockpit: Under the big kite On the mooring AFTERBURNER . 6 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
Rear view The boom The trampoline The cockpit & the Lounge The lounge & the Galley The Lounge AFTERBURNER . 7 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
View through front window Cockpit Port board double berth Rear port board toilet Under small kite Forward Starboard toilet AFTERBURNER . 8 Contact : Marc CHAPUS E-mail: zorbasail@gmail.com
