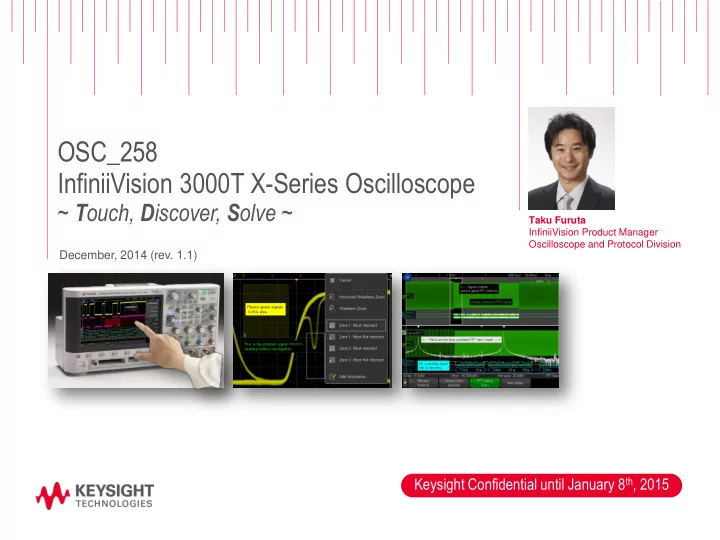

OSC_258 InfiniiVision 3000T X-Series Oscilloscope ~ T ouch, D iscover, S olve ~ Taku Furuta InfiniiVision Product Manager Oscilloscope and Protocol Division December, 2014 (rev. 1.1) Keysight Confidential until January 8 th , 2015

Agenda InfiniiVision 3000T X-Series: T ouch, D iscover, S olve – Oscilloscope Market and General Purpose Oscilloscope Overview – Introducing the InfiniiVision 3000T X-Series – Quick competitive comparisons: Vs. MDO3000 and WaveSurfer 3000 – Call to Action Keysight Confidential until January 8 th , 2015 Page 2

InfiniiVision 3000/2000 X-Series The Most Successful HP/Agilent Scope Ever – Redefined the oscilloscope where others in market followed • Fast waveform update rate • Instrument integration • Full upgradability – Tens of thousands units sold in less than four years – The new InfiniiVision 3000T X-Series is the successor of the most popular HP/Agilent scope ever; moving full speed into the next chapter, let others follow again . Keysight Confidential until January 8 th , 2015 Page 3

Oscilloscope Market and General Purpose Scopes Keysight confidential – do not include in a cust presentation 2010 Agilent Other (Keysight estimate) Danaher- Tektronix 2014 (3000X/4000X) Other (6000X/S-Series) Keysight Danaher- Tektronix Keysight Confidential until January 8 th , 2015 Page 4

Our Customers: Who Use General Purpose Scopes? R&D: 65%, Education: 30%, ATE: 5% General Purpose R&D A/D Automotive Consumer electronics Low current / power integrity measurement Keysight Confidential until January 8 th , 2015 Page 5

New Trend: Changes in Market Expectations Challenges the new InfiniiVision 3000T X-Series addresses – Capacitive touch is not only pervasive; it is expected • Touch goes mainstream – Signals are complex, problem isolation becomes more challenging • Zone trigger goes mainstream – Markets demands more; integration and upgradability are given • Market demands problem- solving general-purpose scope Keysight Confidential until January 8 th , 2015 Page 6

Introducing New Keysight InfiniiVision 3000T X-Series T ouch, D iscover, S olve – Evolution of the X-Series Touch • • Design for Touch: 8.5 in capacitive touch improves productivity • 4 annotation & touch simplifies documentation Discover • • Identify with fast waveform update, isolate with zone trigger • Uncompromised 1M wfm/sec update rate • Zone touch trigger • Solve • 6-in-1 fully upgradable instruments • 12 low speed serial protocol trigger & decode • Gated FFT time/frequency domain correlation 6000-X Series 3000-X Series 4000-X Series Tek MDO4000 • 6-in-1 with counter • Fast waveform update • Capacitive touch • Time/frequency • Event lister • 5-in-1 integration • Zone touch trigger domain correlation • Debug examples • Small form factor • Gated measurement Keysight Confidential until January 8 th , 2015 Page 7

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – “Touch” is the most popular enhancement request on the 3000A X-Series • Designed for Touch: Capacitive touch with gestures • Four annotations: Touch interface simplifies documentation Keysight Confidential until January 8 th , 2015 Page 8

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – Reconfigurable side bar: Capacitive touch screen technology enables productivity Find the configuration that meets your measurement needs! Keysight Confidential until January 8 th , 2015 Page 9

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – Identify with fast waveform update, isolate with zone trigger InfiniiVision 3000T Tek MDO3000 – Did you know how much of your signals you were missing before? Time/div setting : 10 ns/div InfiniiVision 3000T X-Series Danaher-Tek MDO3000 Update Rate Probability of Identifying anomalies Update Rate Probability of Identifying anomalies Max w/ no features on 1,114,000 94% 281,000 (FastAcq) 50% Max w/ digital ch on 1,101,000 94% 132 0.03% Max w/ measurements on 1,114,000 94% 2,200 0.55% Max w/ FFT on 1,114,000 94% 2,200 0.55% Max w/ serial on 1,100,000 94% 1,800 0.45% Max w/ search on 1,113,000 94% 2,200 0.55% Max w/ ref wfms on 1,113,000 94% 2,200 0.55% Keysight Confidential until January 8 th , 2015 Page 10

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – Why do we focus on the waveform update rate? Because customers know the oscilloscope is a signal viewing tool. If you can’t see problem, you can’t fix problem. Waveform update rate Normal (default setup) Special mode/ setting Keysight InfiniiVision 3000T X-Series 1,000,000 No special setup needed Danaher-Tek MDO3000 60,000 281,000 (FastAcq mode, 1 kpts) Teledyne-LeCroy WaveSurfer3000 70,000 130,000 (1 kpts, signals occupy less than 2 vertical div) Page 11

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – Identify with fast waveform update, isolate with zone trigger Not-Anomalies of interest Anomalies of Must not interest intersect • Discover!! zone • Identify Must intersect zone Isolation • Isolate completed in a second Keysight Confidential until January 8 th , 2015 Page 12

InfiniiVision 3000T X-Series Trigger Challenge T ouch, D iscover, S olve – Zone trigger vs. traditional “advanced” trigger Steps to isolate a non-monotonic edge: Keysight 3000T X-Series Traditional Scopes with Advanced Triggers 1. Draw box on non-monotonic edge (assuming the update rate is fast enough to see what you want to trigger on 2. Select “must intersect” and the engineer knows how to set up the advanced trigger): 1. Determine what trigger makes the most sense for the signal you are trying to isolate. In this case, we’ll try a rise -time trigger first. 2. Select cursors 3. Move cursor a to 10% level 4. Move cursor b to 90% level on the non-monotonic edge 5. Obtain the delta time (rise time) between the cursors 6. Select trigger menu 7. Press trigger type 8. Select Rise/Fall time Trigger 9. Select your source 10. Select your slope 11. Select when you want it to trigger – is it less than, greater than, equal to, not equal to. We’ll select greater than. 12. Dial in the “greater than” setting to the measured rise time 13. Adjust your low threshold to the 10% level 14. Adjust your high threshold to the 90% level Keysight Confidential until January 8 th , 2015 Page 13

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – 6-in-1 instrument allows new measurement possibilities 16 digital channels (MSO) 20 MHz Arbitrary/Function Gen 8 digit counter 3 digit DMM Protocol analysis Keysight Confidential until January 8 th , 2015 Page 14

InfiniiVision 3000T X-Series T ouch, D iscover, S olve SENT ARINC429 MIL-1553 SPI 4wire CAN/CAN-FD UART/RS232C – Gain problem solving efficiency with most low speed serial protocol trigger and decode options in the class. CAN symbolic – No more manual counting of 0s I 2 S and 1s. – Avoids human errors. FlexRay LIN Dual bus I 2 C Keysight Confidential until January 8 th , 2015 Page 15

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – Analog, digital, and frequency time correlation give new insights. 1 st in the class. Gated FFT area &result Runs a spectrum analysis for a given analog signal section, allowing engineers to correlate the time and frequency domain signals. Analog signal Dedicated FFT button Provides visual information in time domain Automatic peak search Frequency peaks are found automatically and sorted by amplitude or frequency Triggering on I 2 C via digital channels Digital channels and protocol trigger pin-points specific condition Keysight Confidential until January 8 th , 2015 Page 16

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – Analog, digital, and frequency time correlation using the time gated FFT Gated FFT performs FFT on data in the zoomed time window only. It found the signal frequency to be at 400 MHz before the transition Page 17

InfiniiVision 3000T X-Series T ouch, D iscover, S olve Enhanced FFT analysis Cursors are tied with two frequency peak locations Automatic peak search with a lister. Searches up to 11 peaks. Touch each peak listing to track a peak with a cursor. Selectable display mode. Displays up to 2 views Select start/stop or span/center simultaneously. Alternatively, you can display up frequencies just like a spectrum analyzer. to FFTs of up to 2 channels simultaneously. Keysight Confidential until January 8 th , 2015 Page 18

InfiniiVision 3000T X-Series T ouch, D iscover, S olve – New N7020A Power Rail Probe support • Power integrity measurement is getting popular than ever. • Required a solution with large offset range  ±24 V • Required a solution with low noise  1:1 attenuation ratio adds only 10% to the baseline noise of the scope • 2 GHz high bandwidth to find high-speed transients • Large active signal range  ±850 mV Making power rail measurement at 50 W with 1.5V off set. Power rail measurement comparison: N7020A vs. a popular active probe Keysight Confidential until January 8 th , 2015 Page 19
