Improving Entity Recommendation with Search Log and Multi-Task - PowerPoint PPT Presentation

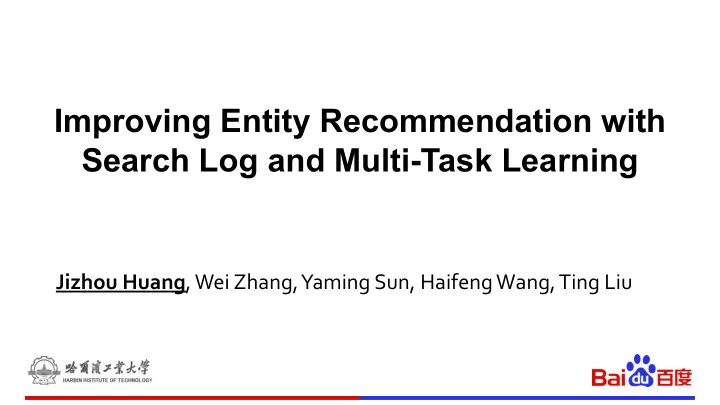

Improving Entity Recommendation with Search Log and Multi-Task Learning Jizhou Huang , Wei Zhang, Yaming Sun, HaifengWang, Ting Liu

Outline • Motivation • Approach • Experiment

Problem Context-insensitive recommendations Context-aware recommendations * ⇒ ... ⇒ Chicago Dreamgirls ⇒ Chicago Context-aware entity recommendations are more relevant to a user’s information need

Task • Context-aware entity recommendation – Given a query 𝑟 # , its context 𝐷 # = 𝑟 & , 𝑟 ( , … , 𝑟 #*& , and a set of related entities 𝐹 # = 𝑓 & , 𝑓 ( , … , 𝑓 - , our task is to rank the entities in 𝐹 # based on the signals derived from both 𝑟 # and 𝐷 # • Examples 𝐷 # ⇒ 𝑟 # Entity Recommendations Los Angeles travel guide ⇒ New York City, California, San Francisco, Illinois Chicago American rock band ⇒ Chicago The Doobie Brothers, The Beach Boys, Eagles, Cheap Trick Dreamgirls movie trailers ⇒ Moulin Rouge, Cabaret, The Jazz Singer, Roxie Hart Chicago

Challenges • Imbalanced entity click logs for ambiguous queries – Recommendations cannot cover as many intents as possible – Sufficient for the frequently asked meanings of such queries – Insufficient for the rarely asked meanings of such queries • There may be irrelevant in-session preceding queries – Not every preceding query addresses the same information need as the current query

Outline • Motivation • Approach • Experiment

Improved with Search Log and Multi-Task Learning • Method – We propose a multi-task DNN model to combine two tasks of entity recommendation (main task) and context-aware ranking (auxiliary task) • Key intuitions – The two tasks are closely related in Web search and the representations of input queries and contexts can be naturally shared across them – We can take advantage of the large amounts of search logs in a multi-task learning framework to improve entity recommendation – The clicked documents are helpful in understanding users’ search intents behind a query under variant contexts, which can be beneficial to entity recommendation in a multi-task learning framework

Multi-Task DNN Model Query and context representations shared across two tasks Context-aware ranking for Web Search Context-aware entity recommendation v s P( d i |c, q t ) P( d j |c, q t ) P( e k |c, q t ) P( e l |c, q t ) FC layer cos( v i , v r ) cos( v j , v r ) cos( v k , v m ) cos( v l , v m ) Concatenation v c v i v j v r v m v k v l Attention-based weighted average FC layer FC layer FC layer FC layer FC layer FC layer v s v q ... BiLSTM BiLSTM BiLSTM BiLSTM BiLSTM BiLSTM q 1 q t d i d j e k e l ... q 2 q t- 1 Documents Entities Preceding queries (context, c ) Current query

Training • Objective – Minimize the negative log likelihood of the clicked results p 𝑠 ; 𝑑, 𝑟 −log 2 3,4,5 6 ∈8 • Training algorithm 1: Initialize model Θ randomly 2: for 𝑗𝑢𝑓𝑠𝑏𝑢𝑗𝑝𝑜 in 1 ··· 𝑂 do 3: Randomly select a task 𝑈 (context-aware ranking or entity recommendation) 4: Select a random training example for task 𝑈 5: Compute loss for task 𝑈 6: Compute gradient ∇(Θ) 7: Update Θ by taking a gradient step with ∇(Θ) 8: end for

Outline • Motivation • Approach • Experiment

Entity Ranking • Ranking – Use the trained model to compute a score between 𝑑 , 𝑟 and 𝑓 ∈ 𝐹 P QR P S P 𝑓 𝑑, 𝑟 = cos 𝑤 N , 𝑤 O = ∥P Q ∥∥P S ∥ • Two ways of using the score to rank entities – As an individual ranking model – As a feature in a baseline learning to rank framework

As an Individual Ranking Model MBR This method is based on nearest neighbors collaborative filtering proposed by [Fernandez-Tobias and Blanco, 2016] ER This is a context-insensitive DNN model which only considers the current query in generating entity recommendations ER-C This is a single-task DNN model which only uses the entity click logs to train an entity recommendation model ER-C-MT This is the proposed multi-task DNN model [Fernandez-Tobias and Blanco, 2016] Memory-based recommendations of entities for web search users. 2016. In CIKM.

As a Feature in a Learning to Rank Framework LTR This baseline is a context-insensitive model comprising a set of non-contextual features for entity recommendation LTR-ER This model is trained with all LTR features and the similarity feature computed by ER LTR-ER-C This model is trained with all LTR features and the similarity feature computed by ER-C LTR-ER-C-MT This model is trained with all LTR features and the similarity feature computed by ER-C-MT

Data & Evaluation Metric • Training – Context-aware ranking: 26,426,495 examples of (𝐷 U , 𝑟 U , 𝐸 U ) ; , 𝑒 X * • 𝐸 U = 𝑒 U XY&,…,Z , a clicked doc and 𝐿 randomly-sampled non-clicked docs – Entity recommendation: 8,821,550 examples of (𝐷 \ , 𝑟 \ , 𝐹 \ ) ; , 𝑓 ] * • 𝐹 \ = 𝑓 ]Y&,…,^ , a clicked entity and 𝑀 randomly-sampled non-clicked entities \ • Test – 8,402,881 examples of (𝐷 O , 𝑟 O , 𝐹 O ) • Evaluation metric – NDCG

As an Individual Ranking Model • ER-C-MT vs. Baselines 0.0710 – Highest performance 0.08 0.0675 0.0663 – The most effective in ranking 0.07 0.0641 0.0504 entities for this task 0.06 0.0455 • ER-C-MT and ER-C vs. ER 0.0454 0.05 0.0444 – Both outperform ER 0.04 0.0216 – Preceding queries are useful 0.03 0.0206 for improving entity 0.0203 0.0194 0.02 recommendation • ER-C-MT vs. ER-C 0.01 0 – ER-C-MT outperforms ER-C NDCG@1 NDCG@5 NDCG@10 – Learning the model in a multi- task learning setting can bring MBR ER ER-C ER-C-MT further improvements

As a Feature in a Learning to Rank Framework • LTR and LTR-ER vs. LTR- 0.2834 0.2728 ER-C and LTR-ER-C-MT 0.3 0.2438 0.2665 0.2324 0.2502 – The latter two outperform the 0.2261 0.25 former two 0.2103 – Context information can 0.2 0.1461 significantly help to improve 0.1386 the performance of entity 0.15 0.1332 0.1219 recommendation 0.1 • LTR-ER-C-MT vs. Others 0.05 – Highest performance – The performance of entity 0 recommendation can be NDCG@1 NDCG@5 NDCG@10 significantly improved through LTR LTR-ER LTR-ER-C LTR-ER-C-MT search logs and multi-task learning

Examples Query and Context Query : A Song of Ice and Fire Context : Maisie Williams ⇒ Rose Leslie Entity Recommendations LTR : Westworld, Game of Thrones, House of Card, Nip/Tuck, Frozen LTR-ER-C-MT : Isaac Hempstead-Wright, Carice van Houten, Iwan Rheon, Liam Cunningham, Peter Dinklage Query and Context Query : Florence Context : Soccer Players ⇒ Roberto Baggio Entity Recommendations LTR : Vatican City, Pompeii, Rome, Metropolitan City of Florence, San Gimignano LTR-ER-C-MT : A.C. Milan, A.S. Roma, Inter Milan, A.C. ChievoVerona, Real Madrid C.F.

Conclusions • We study the problem of context-aware entity recommendation – We propose a multi-task DNN model by leveraging Web search logs to improve entity recommendation – We evaluate our approach using large-scale, real-world search logs of a widely used commercial Web search engine • Our proposed method is effective for this task – The experiments show that our method significantly outperforms several strong baselines – The experiments also demonstrate that context information can significantly improve the performance of entity recommendation

Thank you! huangjizhou@baidu.com
