Lehrstuhl Netzarchitekturen und Netzdienste Institut fr Informatik Technische Universitt Mnchen Implementation and Evaluation of Mobility Models with OPNET Vortrag zur Masterarbeit von Thomas Oberwallner 12.09.2012 Betreuer:

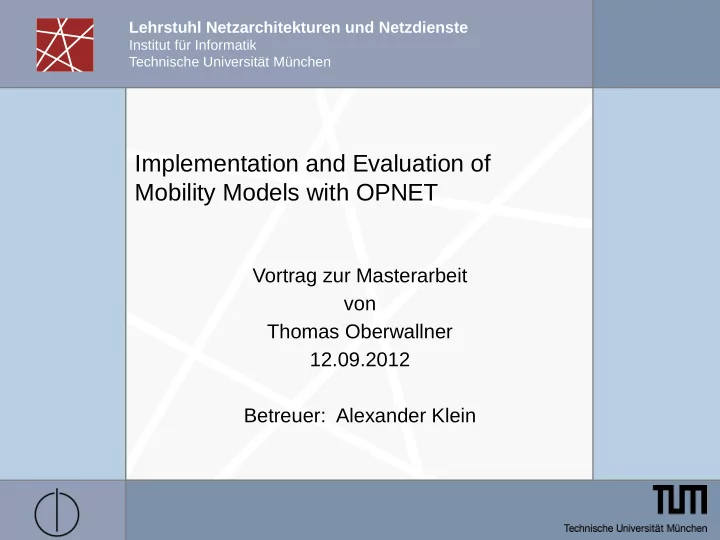

  1. Lehrstuhl Netzarchitekturen und Netzdienste Institut für Informatik Technische Universität München Implementation and Evaluation of Mobility Models with OPNET Vortrag zur Masterarbeit von Thomas Oberwallner 12.09.2012 Betreuer: Alexander Klein

  2. Implementation and Evaluation of Mobility Models with OPNET 2

  3. Outline I. Motivation II. Modules  Import of OpenStreetMap (OSM) road maps  Routing  Mobility model  Statistics  Import/Export of GPS-Traces III. Evaluation IV. Comparison of existing solutions Implementation and Evaluation of Mobility Models with OPNET 3

  4. Motivation  Existing mobility framework in OPNET  Mobility models: Random Waypoint, Random Direction,Random Walk, Group Mobility  Statistics: Spatial node distribution, node speed distribution, link duration, transient phase  VANET (Vehicular Ad Hoc Network) simulation  Restricted area (roads)  Interaction of nodes  Goal  Simulation of traffic on real maps  Fast movement model of VANETs  Import/Export Traces  Comparison of routing protocols (AODV vs. OLSR vs. B.A.T.M.A.N.) Implementation and Evaluation of Mobility Models with OPNET 4

  5. Modules: Import of OpenStreetMap road maps  File-Format: OSM  XML-File contains 3 element types  Node  Point in map  Contains latitude, longitude, id, (version, timestamp, userid, changeset)  Way  Contains references to nodes + additional data like highway type, speed limit, name, surface, one way  Relation  Forms restrictions or areas  Contains references to nodes and ways  Important: Guessing of unknown data Implementation and Evaluation of Mobility Models with OPNET 5

  6. Modules: Routing  Creation of routing graph by minimizing road graph  Vertex in routing graph: intersection  Edge: Connects two intersections  Routing with Dijkstra algorithm  Weight of edges  Distance for shortest path  Time for fastest path  Pending nodes stored in a Min-Heap Implementation and Evaluation of Mobility Models with OPNET 6

  7. Modules: Routing  Creation of routing graph by minimizing road graph  Vertex in routing graph: intersection  Edge: Connects two intersections  Routing with Dijkstra algorithm  Weight of edges  Distance for shortest path  Time for quickest path  Pending nodes stored in a Min-Heap Implementation and Evaluation of Mobility Models with OPNET 7

  8. Modules: Routing  Creation of routing graph by minimizing road graph  Vertex in routing graph: intersection  Edge: Connects two intersections  Routing with Dijkstra algorithm A A A A A A A A A A D D D D D D D D D D 5 5 5 5 5 5 5 5 5 5 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 4 4 4 4 4 4 4 4 4 4  Weight of edges C C C C C C C C C C 1 1 1 1 1 1 1 1 1 1 3 3 3 3 3 3 3 3 3 3  Distance for shortest path  Time for fastest path B B B B B B B B B B E E E E E E E E E E 10 10 10 10 10 10 10 10 10 10  Pending nodes stored in a Min-Heap Implementation and Evaluation of Mobility Models with OPNET 8

  9. Modules: Mobility model – Trip generation  Routed-Geo-Waypoint  Similar to Random Waypoint  Random starting point  Random destination  “Levy-Flight”  Random starting point  Choosing destination with random distance  Sightseeing  Random starting point  Routed-Geo-Waypoint route  Return to starting point Implementation and Evaluation of Mobility Models with OPNET 9

  10. Modules: Mobility model – Speed  Every car has its desired speed 0.14 0.2 0.12 0.15 0.1 0.08 0.1 0.06 0.05 0.04 0.02 0 0 7 7 8 8 9 9 1 1 1 1 1 2 7 2 7 2 7 0 0 1 1 2 0 0 0 0 0 0 0 0 . . . . . . 2 7 2 7 2 . . . . . . . . 5 5 5 5 5 5 0 1 2 3 4 5 6 7 . . . . . 5 5 5 5 5 - - - - - - - - - - - - - - 7 8 1 - - - - - 0 0 0 0 0 0 0 0 8 9 9 . . . . . . . . 7 2 7 2 7 0 1 1 1 1 1 0 1 2 3 4 5 6 7 . . . . . 2 0 1 1 2 2 5 5 5 5 5 5 5 5 5 5 5 5 5 . 7 2 7 2 7 : : : : : 5 : : : : : : : : . . . . . : 5 5 5 5 5 : : : : : Normal Distribution (100, 10) Erlang-K (100,1) Beta (2,5)  Speed limits: Drivers obey speed limits depending on desired speed  Behaviour:  If no car in front: speed = (desired speed / 100) * speed limit  If slower car in front:  If distance > safety-distance: speed = (desired speed / 100) * speed limit  If distance = safety-distance: speed = speed of car in front  If distance < safety-distance: speed = 0.95 * speed of car in front Implementation and Evaluation of Mobility Models with OPNET 10

  11. Modules: Mobility model – Traffic Signals  Position of traffic signal (TS) extracted from map  Timing:  Every TS has a uniform distributed offset [0; 20]s  Every TS has a uniform distributed duration [5; 15]s  No yellow-phase  Two roads with an angle closest to 180° have a green signal at the same time Implementation and Evaluation of Mobility Models with OPNET 11

  12. Modules: Mobility model - Intersections  First in, first out principle  Departure and destination of all cars which crossed the intersection in the previous 2 seconds is stored  Arriving car comes from direction A and drives in direction B  Waiting decision depends on the direction of previous cars:  If no car crossed the intersection: ok  If cars came from A: ok  If cars went from B to A: ok  Else: Wait 2 seconds Implementation and Evaluation of Mobility Models with OPNET 12

  13. Modules: Mobility Model – Driver Model/Overtaking  Status: not implemented  Driver change after reaching destination  Characteristics of driver model:  Desired speed  Distance to car in front  Overtaking possible  Overtaking decision depends on:  Driving out of town  Desired speed >> Desired speed of car in front  Distance to next intersection long enough  No/Little opposing traffic Implementation and Evaluation of Mobility Models with OPNET 13

  14. Modules: Statistics  Map metrics  Type of roads  Number of intersections  Distance between intersections  Speed limits  Number of traffic signals  Mobility metrics  Node speed  Node density  Neighbour distance  Speed ratio between neighbours  Spatial dependence between neighbours  Relative speed of neighbours  Number of cars per section  Network metrics  Number of neighbours  Number of network partitions Implementation and Evaluation of Mobility Models with OPNET 14

  15. Modules: Import/Export of GPS-Traces  File Format: GPX  Wpt: Waypoint  Attributes: Latitude, longitude  Elements (optional): Elevation, timestamp  Rte: Route  Elements: Name, description, list of route points (wpt)  Trk: Track  Elements: Name, description, list of track segments  Trkseg: Track segment  Elements: List of waypoints Implementation and Evaluation of Mobility Models with OPNET 15

  16. Evaluation  Impact of map  Rural area, radial-concentric (z.B. Nördlingen), Manhattan grid (New York)  Simulation parameters  Number of cars  Desired speed  Overtaking disabled/enabled  Range of signal Implementation and Evaluation of Mobility Models with OPNET 16

  17. Comparison of VANET simulators VanetMobiSim SUMO GrooveNet Import OSM-Files No Not standalone No Mobility model Constant speed, Car-following, Constant speed, fluid traffic motion, multilane roads, car-following, traffic overtaking, traffic traffic lights lights lights Trip generation Random or activity Random Random, based sightseeing Routing Dijkstra, slow Dijkstra, A*, fast Dijkstra, fast Statistics Node density Position dump, Log file contains all edge lane traffic, events trip/route Not aggregated information Not aggregated Import/Export No/Yes (NS2, No/Yes (unknown No/Yes (unknown Traces GloMoSim, format) format) QualNet, NET) Network Simulation No No Yes (hybrid simulation possible) Implementation and Evaluation of Mobility Models with OPNET 17

  18. Comparison of VANET simulators Master-Thesis VanetMobiSim SUMO GrooveNet Import OSM-Files Yes No Not standalone No Mobility model Constant speed, Constant speed, Car-following, Constant speed, car-following, fluid traffic multilane roads, car-following, traffic lights, motion, traffic lights traffic lights overtaking, overtaking, traffic driver-model lights Trip generation Random, Random or Random Random, sightseeing, activity based sightseeing distance-based Routing Dijkstra or A*, Dijkstra, slow Dijkstra, A*, fast Dijkstra, fast fast Statistics Map metrics, Node density Position dump, Logfile contains Mobility metrics, edgelane traffic, all events network metrics trip/route Not aggregated information Not aggregated Import/Export Yes/Yes No/Yes (NS2, No/Yes No/Yes Traces GPX-Format GloMoSim, unknown format unknown format QualNet, NET) Network Yes (no hybrid No No Yes (hybrid Simulation simulation) simulation possible) Implementation and Evaluation of Mobility Models with OPNET 18

  19. Video Implementation and Evaluation of Mobility Models with OPNET 19

  20. Questions Thank you for your time and attention. Questions? Implementation and Evaluation of Mobility Models with OPNET 20
