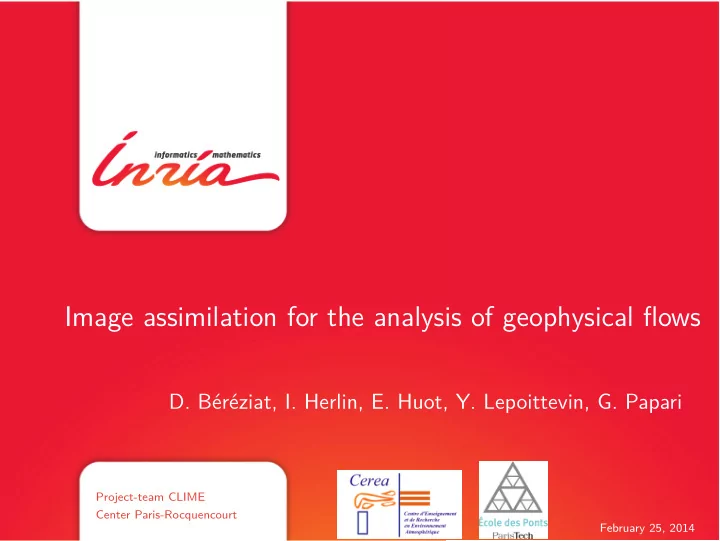

Image assimilation for the analysis of geophysical flows D. B´ er´ eziat, I. Herlin, E. Huot, Y. Lepoittevin, G. Papari Project-team CLIME Center Paris-Rocquencourt February 25, 2014

Why coupling models and images? ◮ Whatever model’s resolution, images of higher resolution. ◮ Deriving characteristics from acquisitions, further assimilated as pseudo-observations. Atmospheric Motion Vectors. Ocean surface motion. ◮ Direct assimilation of new high-level data. Gradient maps. Wavelets or curvlets coefficients. ◮ Control of structures positions. Satellite acquisitions of Black Sea and estimated motion Clime February 25, 2014- 2

Which research themes? ◮ Empirical models from image data. Describing objects evolution: pollutant spills, ocean or meteorological structures. Major interest for nowcasting. ◮ Coupling models and images of different resolutions. Subgrid parameterization. High resolution coastal currents. ◮ Optimal bases for image and model reduction. Crisis management. Clime February 25, 2014- 3

Identification of operational needs ◮ Short-term photovoltaic production forecast. EDF R&D in the test side of Reunion Island. ◮ Pollutant transport and littoral monitoring. ◮ Monitoring of offshore equipments. ◮ To be discussed in SAMA. Clime February 25, 2014- 4

Actions in Clime in the last 4 years ◮ State estimation with 4D-Var data assimilation. Observation equations for image data, observation error covariance matrix. Motion estimation, inpainting, structures tracking. ◮ Model error. Image models being obtained from heuristics, estimation of their error allows assessing the dynamics. ◮ Model reduction. Sliding windows method for long sequences and POD reduction. Div-free motion from vorticity on sine basis. Computation of basis from motion properties (domain shape, boundary conditions). ◮ Ensemble methods. Definition of an ensemble from optical flow methods. Clime February 25, 2014- 5

Highlight1 Image Model for Motion Estimation and Structure Tracking Clime February 25, 2014- 6

Highlight1 Image Model for Motion Estimation and Structure Tracking � T � w ( x , y , t ) T State vector X ( x , y , t ) = I s ( x , y , t ) Φ( x , y , t ) ◮ Lagrangian constancy of velocity ∂ w φ ( x , y ) ∂ t + ( w · ∇ ) w = 0 y φ ( x , y ) = 0 ◮ Transport of image function ∂ I s ∂ t + w · ∇ I s = 0 x ◮ Advection of Φ ∂ Φ ∂ t + w · ∇ Φ = 0 Clime February 25, 2014- 7

Motion Estimation and Structure Tracking Observations Satellite images I ( t i ) acquired by satellite at dates t i Distance to contours points D C ( t i ) computed on the images Definition of I H : I H ( X , Y ) = I − I s I H Φ ( X , Y ) = ( D C − | Φ | ) 1 1 | Φ | < s Clime February 25, 2014- 8

Motion Estimation and Structure Tracking “ “ with contour points Motion Field without contour points Clime February 25, 2014- 9

Motion Estimation and Structure Tracking “ with contour points Motion Field without contour points Clime February 25, 2014- 10

Highlight2 Spirit of model reduction Courtesy: Marine Hydrophysical Institute, Ukrainian Academy of Sciences, Sevastopol Clime February 25, 2014- 11

Highlight2 Spirit of model reduction ◮ Reduced state: less memory ◮ Regularity: applied on basis elements ◮ Boundary conditions: imposed to the basis elements ◮ Numerical schemes: ODE vs PDE Clime February 25, 2014- 12

Full and reduced models Full model Reduced model ∂ w  ∂ t ( x , t ) + ( w · ∇ ) w ( x , t ) = 0 da k    dt ( t ) + a T B ( k ) a = 0 , k = � 1 , K �       ∂ I s   ∂ t ( x , t ) + w · ∇ I s ( x , t ) = 0  db l    dt ( t ) + a T G ( l ) b = 0 , l = � 1 , L �   K  � = � ( φ i ∇ ) φ j ,φ k �  w ( x , t ) ≈ a k ( t ) φ k ( x ) B ( k ) i , j   � φ k ,φ k �   k = 1 L = � φ i ·∇ ψ j ,ψ l �  � G ( l ) i , j I s ( x , t ) ≈ b l ( t ) ψ l ( x )   � ψ l ,ψ l �   l = 1 Clime February 25, 2014- 13

Motion basis φ i are obtained by sequentially solving systems S i :  φ i = f ∈ L 2 (Ω) 2 �∇ f , ∇ f � min       div ( φ i ( x )) = 0 ∀ x ∈ Ω   S i = (1) φ i ( x ) · n ( x ) = 0 ∀ x ∈ ∂ Ω      � φ i , φ k � = δ i , k , k ∈ � 1 , i �    Clime February 25, 2014- 14

Image Basis ψ i are obtained by sequentially solving systems S i :  ψ i = f ∈ L 2 (Ω) �∇ f , ∇ f � d x min      S i = ∇ ψ i ( x ) · n ( x ) = 0 ∀ x ∈ ∂ Ω (2)   � ψ i , ψ k � = δ i , k , k ∈ � 1 , i �    Clime February 25, 2014- 15

Black Sea motion estimation Results of Assimilation in the reduced model: “ “ Clime February 25, 2014- 16

Black Sea motion estimation Results of Assimilation in the reduced model: Clime February 25, 2014- 17

Black Sea motion estimation Results of Assimilation in the reduced model: Clime February 25, 2014- 18

Prospective Methods ◮ Optimal basis for reduced models ◮ Non linear observation operators, linked to image structures ◮ Characterization of model errors ◮ Comparison of 4D-Var and ensemble methods Objectives ◮ Motion modeling of geophysical flows ◮ Short-term tracking and forecast of clouds ◮ Forecast of ocean currents from image data Clime February 25, 2014- 19
