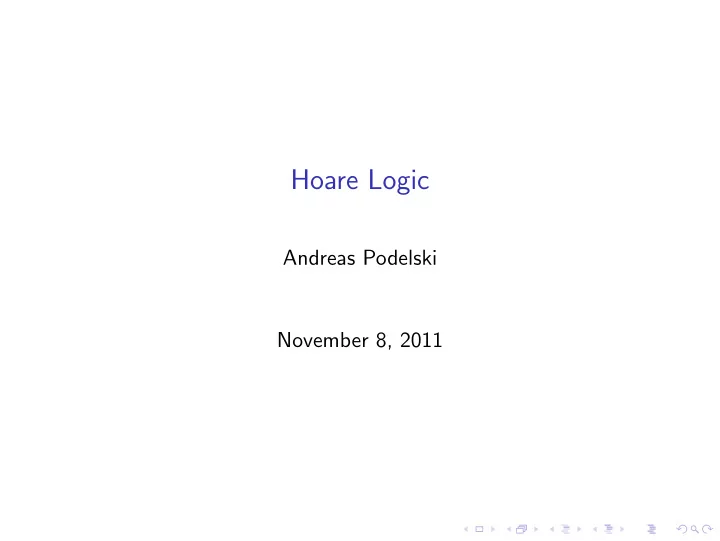

Hoare Logic Andreas Podelski November 8, 2011 Hoare logic - PowerPoint PPT Presentation

May 29, 2023 •31 likes •401 views

Hoare Logic Andreas Podelski November 8, 2011 Hoare logic introduced by Hoare in 1969 builds on first-order logic Hoare logic introduced by Hoare in 1969 builds on first-order logic correctness specification = pre- and

  1. Hoare Logic Andreas Podelski November 8, 2011

  2. Hoare logic ◮ introduced by Hoare in 1969 builds on first-order logic

  3. Hoare logic ◮ introduced by Hoare in 1969 builds on first-order logic ◮ correctness specification = pre- and postcondition pair

  4. Hoare logic ◮ introduced by Hoare in 1969 builds on first-order logic ◮ correctness specification = pre- and postcondition pair ◮ standard presentation of Hoare logic: proof uses invariant for every loop in program

  5. Hoare logic ◮ introduced by Hoare in 1969 builds on first-order logic ◮ correctness specification = pre- and postcondition pair ◮ standard presentation of Hoare logic: proof uses invariant for every loop in program ◮ here: invariants are given as part of correctness specification

  6. Hoare logic ◮ introduced by Hoare in 1969 builds on first-order logic ◮ correctness specification = pre- and postcondition pair ◮ standard presentation of Hoare logic: proof uses invariant for every loop in program ◮ here: invariants are given as part of correctness specification ◮ correctness proof possible only if invariants are adequate for pre- and postcondition pair

  7. Programs ◮ (program) expression e ::= x | f ( e 1 , . . . , e n ) where f maps into domain of values

  8. Programs ◮ (program) expression e ::= x | f ( e 1 , . . . , e n ) where f maps into domain of values ◮ Boolean expression b ::= x | f ( e 1 , . . . , e n ) where f maps into Boolean domain

  9. Programs ◮ (program) expression e ::= x | f ( e 1 , . . . , e n ) where f maps into domain of values ◮ Boolean expression b ::= x | f ( e 1 , . . . , e n ) where f maps into Boolean domain ◮ command C ::= skip | x : = e | C 1 ; C 2 | if b then C 1 else C 2 | while b do C

  10. Semantics of Expression e ◮ state s = function from program variables to value, s : Var → Val

  11. Semantics of Expression e ◮ state s = function from program variables to value, s : Var → Val ◮ program expression e in state s evaluates to value [ | e | ]( s ) ∈ Val

  12. Semantics of Expression e ◮ state s = function from program variables to value, s : Var → Val ◮ program expression e in state s evaluates to value [ | e | ]( s ) ∈ Val ◮ semantics of program expressions e = function from set of states to set of values [ | e | ] : States → Val

  13. Semantics of Expression e ◮ state s = function from program variables to value, s : Var → Val ◮ program expression e in state s evaluates to value [ | e | ]( s ) ∈ Val ◮ semantics of program expressions e = function from set of states to set of values [ | e | ] : States → Val ◮ interpretation of function symbol f in expression f ( e 1 , . . . , e n ) depends on logical first-order model (“+” interpreted over model of unbounded integers or in model for modulo arithmetic?)

  14. Semantics of Boolean Expression b ◮ state s = function from program variables to values, s : Var → Val

  15. Semantics of Boolean Expression b ◮ state s = function from program variables to values, s : Var → Val ◮ Boolean expression b in state s evaluates to Boolean truth value [ | b | ]( s ) ∈ { T , F }

  16. Semantics of Boolean Expression b ◮ state s = function from program variables to values, s : Var → Val ◮ Boolean expression b in state s evaluates to Boolean truth value [ | b | ]( s ) ∈ { T , F } ◮ semantics of Boolean expression b = function from set of states to set of Boolean truth values [ | b | ] : States → { T , F }

  17. Semantics of Boolean Expression b ◮ state s = function from program variables to values, s : Var → Val ◮ Boolean expression b in state s evaluates to Boolean truth value [ | b | ]( s ) ∈ { T , F } ◮ semantics of Boolean expression b = function from set of states to set of Boolean truth values [ | b | ] : States → { T , F } ◮ evaluation of Boolean expression b depends on logical first-order model (“ x ≤ x + 1” true in model of unbounded integers but false in model for modulo arithmetic)

  18. Semantics of Commands C (1) ◮ semantics of command C = functions from set of states to set of states s �→ s ′ [ | C | ] : States → States ,

  19. Semantics of Commands C (1) ◮ semantics of command C = functions from set of states to set of states s �→ s ′ [ | C | ] : States → States , ◮ execution of command C starting in state s ends in state s ′ ( C , s ) � s ′

  20. Semantics of Commands C (1) ◮ semantics of command C = functions from set of states to set of states s �→ s ′ [ | C | ] : States → States , ◮ execution of command C starting in state s ends in state s ′ ( C , s ) � s ′ ◮ execution of update statement = update of function s : Var → Val = e , s ) � s ′ where s ′ ( x ) = [ ( x : | e | ]( s ) and s ′ ( y ) = s ( y ) for x �≡ y

  21. Semantics of Commands C (1) ◮ semantics of command C = functions from set of states to set of states s �→ s ′ [ | C | ] : States → States , ◮ execution of command C starting in state s ends in state s ′ ( C , s ) � s ′ ◮ execution of update statement = update of function s : Var → Val = e , s ) � s ′ where s ′ ( x ) = [ ( x : | e | ]( s ) and s ′ ( y ) = s ( y ) for x �≡ y ◮ execution of update depends on logical first-order model

  22. Semantics of Commands C (2) ◮ execution of sequence of commands C ≡ C 1 ; C 2 = execution of first command C 1 followed by execution of second command C 2 ( C , s ) � s ′′ if ( C 1 , s ) � s ′ and ( C 2 , s ′ ) � s ′′

  23. Semantics of Commands C (2) ◮ execution of sequence of commands C ≡ C 1 ; C 2 = execution of first command C 1 followed by execution of second command C 2 ( C , s ) � s ′′ if ( C 1 , s ) � s ′ and ( C 2 , s ′ ) � s ′′ ◮ execution of command skip does not change state ( skip , s ) � s (“empty sequence of commands”)

  24. Semantics of Commands C (3) ◮ execution of conditional command C ≡ if b then C 1 else C 2 = execution of then-command C 1 if expression b evaluates to true ( C , s ) � s ′ if [ | b | ]( s ) = T and ( C 1 , s ) � s ′

  25. Semantics of Commands C (3) ◮ execution of conditional command C ≡ if b then C 1 else C 2 = execution of then-command C 1 if expression b evaluates to true ( C , s ) � s ′ if [ | b | ]( s ) = T and ( C 1 , s ) � s ′ ◮ execution of conditional command C ≡ if b then C 1 else C 2 = execution of then-command C 2 if expression b evaluates to false ( C , s ) � s ′ if [ ]( s ) = F and ( C 2 , s ) � s ′ | b |

  26. Semantics of Commands C (3) ◮ execution of conditional command C ≡ if b then C 1 else C 2 = execution of then-command C 1 if expression b evaluates to true ( C , s ) � s ′ if [ | b | ]( s ) = T and ( C 1 , s ) � s ′ ◮ execution of conditional command C ≡ if b then C 1 else C 2 = execution of then-command C 2 if expression b evaluates to false ( C , s ) � s ′ if [ ]( s ) = F and ( C 2 , s ) � s ′ | b | ◮ execution of conditional depends on logical first-order model

  27. Semantics of Commands C (4) ◮ execution of while command C ≡ while b do C 0 = execution of body C 0 followed by execution of while command C if expression b evaluates to true ( C , s ) � s ′′ if [ ]( s ) = T and ( C 0 , s ) � s ′ and ( C , s ′ ) � s ′′ | b |

  28. Semantics of Commands C (4) ◮ execution of while command C ≡ while b do C 0 = execution of body C 0 followed by execution of while command C if expression b evaluates to true ( C , s ) � s ′′ if [ ]( s ) = T and ( C 0 , s ) � s ′ and ( C , s ′ ) � s ′′ | b | ◮ execution of while command C ≡ while b do C 0 = execution of skip if expression b evaluates to false ( C , s ) � s if [ | b | ]( s ) = F

  29. Semantics of Commands C (4) ◮ execution of while command C ≡ while b do C 0 = execution of body C 0 followed by execution of while command C if expression b evaluates to true ( C , s ) � s ′′ if [ ]( s ) = T and ( C 0 , s ) � s ′ and ( C , s ′ ) � s ′′ | b | ◮ execution of while command C ≡ while b do C 0 = execution of skip if expression b evaluates to false ( C , s ) � s if [ | b | ]( s ) = F ◮ execution of while loop depends on logical first-order model

  30. Hoare Triple { φ } C { ψ } ◮ { φ } C { ψ } valid in given logical first-order model if

  31. Hoare Triple { φ } C { ψ } ◮ { φ } C { ψ } valid in given logical first-order model if for all states s if [ | φ | ]( s ) = T and

  32. Hoare Triple { φ } C { ψ } ◮ { φ } C { ψ } valid in given logical first-order model if for all states s if [ | φ | ]( s ) = T and if ( C , s ) � s ′ then

  33. Hoare Triple { φ } C { ψ } ◮ { φ } C { ψ } valid in given logical first-order model if for all states s if [ | φ | ]( s ) = T and if ( C , s ) � s ′ then [ | ψ | ]( s ′ ) = T ◮ { φ } C { ψ } valid if valid in every logical first-order model ◮ Γ | = { φ } C { ψ } if { φ } C { ψ } valid in every logical first-order model of set of assertions Γ

  34. Variables in Hoare Triple { φ } C { ψ } ◮ program variables: occur in commands in program C

  35. Variables in Hoare Triple { φ } C { ψ } ◮ program variables: occur in commands in program C may occur ( free ) in φ and ψ ◮ auxiliary variables: occur ( free ) in φ and/or ψ but do not occur in commands in program C
