ICA ICAO As O Asia/P ia/Pacific S acific SAR AR T Task F ask For orce ce Bangk Bangkok, T ok, Thailand, 6 hailand, 6-10 J 10 Jul uly y 2015 2015 GADSS GAD SS GL GLOB OBAL L AER ERON ONATICA TICAL L DISTRESS ISTRESS an

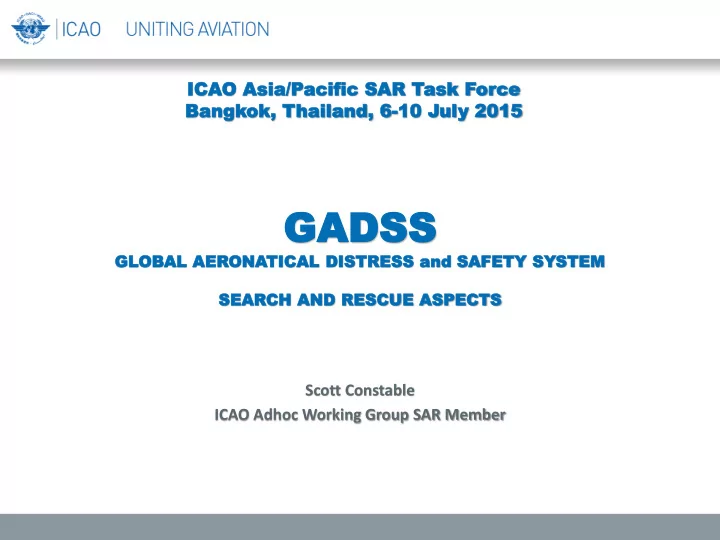

  1. ICA ICAO As O Asia/P ia/Pacific S acific SAR AR T Task F ask For orce ce Bangk Bangkok, T ok, Thailand, 6 hailand, 6-10 J 10 Jul uly y 2015 2015 GADSS GAD SS GL GLOB OBAL L AER ERON ONATICA TICAL L DISTRESS ISTRESS an and d SA SAFETY FETY SY SYSTEM STEM SEARCH SEA H AND ND RESC ESCUE UE ASPEC SPECTS TS Scott Constable ICAO Adhoc Working Group SAR Member

  2. Topics • Background • Areas of Improvement • Brief description of the concept • Standards development • Implementation Plan • Summary July 2015 2

  3. GADSS History March, 2014 Malaysia Airlines Flight MH370 disappeared and remains missing 12-13 May 2014 Multi-disciplinary meeting with States, Industry, Chairs and co-chairs of several panels, and related specialists Attendees: 207 participants from – 44 Member States – 19 International Organizations – 5 Industry representatives – 8 Panel chairs Outcomes: – Consensus that aviation’s near -term priority is to track airline flights , no matter the location or destination – Industry to initiate global tracking on a voluntary basis , and establish an Aircraft Tracking Task Force (ATTF) to provide recommendations on best practices – Establish an ICAO Ad-Hoc Working Group - Concept of Operations, incorporating outcomes of the IATA ATTF - Present ConOps to the HLSC 2015 July 2015 3

  4. Improvement Areas in Current Operating Environment • Current systems and processes • 4 areas identified for potential improvement – Aircraft Systems – ATS – SAR system – Information Management July 2015 4

  5. Improvements Reduction in reliance Emergency Timely activation Locator Transmitter Carriage of 406 Mhz (ELT) Registration Aircraft SOPs Aircraft Systems Improve capability to transmit 4D pos Communication and Ground/Space based Infrastructure Position Data Reduce sole HF reliance 5

  6. Improvements Airspace coordination HF disruptions Procedures Complacency Position accuracy ATSU crossings 30 min period Air Traffic Services Information Training Across ANSP boundaries Experience Sharing Exercises Civil/Military 6

  7. Improvements Coordination complexity ATSU/RCC Annex 12 Understanding Delayed or inadequate compliance Annex 12/13 of responsibilities response transition Search & Rescue Systems FIR and SRR Complex coordination Training Experience Area alignment Response times Exercises 7

  8. Improvements Aircraft Operator AFTN limitations Points Ground (operational) Of Contact Communication ATSU RCC Information Management ATSU Areas of Speaking Language RCC Jurisdiction Understanding Geographic picture and situational awareness 8

  9. GADSS Key Components Flight Data Recovery • ADFR • Automatically deployed • Floatable Autonomous Distress • Contains ELT to aid location Tracking (ADT) • Alternate Solution • A Distress Signal • Performance Based • Auto Triggered by very • Provides a minimum CVR specific events and FDR dataset • May be manually activated Aircraft Tracking • Operation Approval • Can not be isolated Required Abnormal Operations • Triggered by abnormal events • Provides flight location data at least once per minute • Controllable by flight crew Airline • multiple solutions Aircraft Tracking Normal Operations • Possible Subset of ATS Surveillance ATS/RCC • Used for Airline Operational Functions • Controllable by Flight Crew • multiple solutions SWIM July 2015 9

  10. NO TRACKING 60 minute ATC reporting environment Incident at 1 minute Elapsed Time 59 89 59 89 from Incident: min EMERGENCY PHASE RESCUE COORDINATION CENTER

  11. NORMAL TRACKING 60 minute ATC reporting environment AOC tries to establish contact AOC Incident at 1 minute Elapsed Time 44 44 from Incident: min Elapsed Time 89 89 CURRENT from Incident: min EMERGENCY PHASE GADSS CONCEPT RESCUE COORDINATION CENTER

  12. DISTRESS TRACKING ADFR TRIGGER ELT  Automatic Retrieval of  Manual CVR/DFR data  Ground AUTONOMOUS 6 NM Trigger Examples:  unusual attitudes  unusual speed conditions  loss of power on all engines  ground proximity warnings AOC RESCUE COORDINATION CENTER GADSS CONCEPT

  13. Search & ❷ Rescue Satellites Distress call utilizing ❶ EPIRB ❺ Rescue Distress call Coordination Local User utilizing Center ❸ Terminal ❶ ELT ❺ Rescue Coordination Distress call Center utilizing ❶ Mission PLB ❹ Control Center Present System for Distress Alerts COSPAS-SARSAT System Overview

  14. DISTRESS TRACKING Search & TRIGGER Rescue  Automatic Satellites  Manual  Ground AUTONOMOUS Rescue Coordination Center Local User Terminal Rescue Coordination Center Mission Control ATC Center Distress Tracking Concept GADSS CONCEPT

  15. DISTRESS TRACKING Search & Other TRIGGER Rescue Satellites  Automatic Satellites  Manual  Ground AUTONOMOUS Rescue Coordination Center Local User Ground Terminal Station Rescue Coordination Center Mission Control Control Center ATC Center Distress Tracking Concept GADSS CONCEPT

  16. Some of the Major Outcomes during the HLSC 2015 • Global Tracking – Member States endorsed the GADSS Concept of Operations – Plans for adoption of a new 15 minute aircraft tracking standard was also endorsed • Performance-based , allowing airlines the choice of several available and planned technologies and procedures • Proposal was sent to Member States on 25 February • Expected to be adopted by ICAO Council this fall • Applicability date of 2016 – ICAO is working with industry on an implementation initiative • To assist States, ANSPs, and airlines in the implementation of the standard and respond to abnormal flight behavior in an integrated and multidisciplinary manner July 2015 16

  17. Upcoming Normal Tracking SARPs Timelines Performance-based Standards and recommended practices • January 2015 for normal flight tracking – Preliminary review – No change to ATC procedures i.e. no change to SAR by ICAO ANC alerting • February 2015 – Establish operator responsibility to track aircraft – State Letter – Not technology-specific – using existing technology • November 2015 – Adopted – Establish communication protocoled between Operator , ATC and RCC • November 2016 – Targeted area is Oceanic where ATC gets position – Applicable information with interval more than every 15 min – Aeroplanes with a take-off mass in excess off 27,000 kg and more than 19 seats July 2015 17

  18. Autonomous Distress Tracking SARPS Timelines Performance-based Standards and recommended practices for • January 2015 distress flight tracking – Preliminary review by ICAO ANC – Not technology-specific • – Location of an accident site within 6 NM May 2015 – State Letter – Activated • • Automatically based on flight behavior March 2016 • Manually from the air – Adopted • Manually from the ground • January 2021 – Power and position information autonomous from other – Applicable a/c systems (if adopted) – Applies to new built aeroplanes from 2021 – Incentive for early adoption as an alternative to second ELT 18

  19. Retrieval of Flight Data SARPs Timelines Prescriptive Standards and Recommended • January 2015 practices for ADFR with a performance-based – Preliminary review alternative for data retrieval by ICAO ANC • May 2015 – State Letter – ADFR prescriptive baseline • March 2016 • Recommendation for new aeroplanes from 2019 – Adopted • Applies to new aeroplane types from 2021 • November 2016 – Performance-based alternative – Applicable • Not technology-specific • November 2019 • Optional for all aeroplanes from 2016 – Applicable • Incentive for early adoption as an alternative to ADFR • January 2021 – Applicable 19

  20. Procedures and Information Management • Procedures will need to be revised • Action / re-action may not need to be the same as current procedures • Tracking and contacts information availability – SWIM/Information Repository • Performance-based provisions – Not technology specific – Procedures need to be in place by 2021 July 2015 20

  21. Implementation Plan Chapter 5: Concept Steps Implementation Plan

  22. Aircraft Tracking

  23. ADT

  24. Flight Data Recovery

  25. SWIM

  26. Repository Services

  27. GADSS Procedures

  28. GADSS Procedures July 2015 28

  29. Implementation Plan • Work in Progress • Convert to ICAO work programme – Secretariat – Panels – External Organisations

  30. Normal Tracking Implementation Initiative • Consistent with the Multidisciplinary Meeting on Global Tracking recommendations • The theater of operations is the ASIA/PAC, however, it’s a Global initiative. • The implementation initiative is being conducted in a multi-national context – Led by ICAO with support from States and industry stakeholders – NATII Steering Committee Established 5 March 2015 – Two Sub-groups addressing Airspace and Scenarios • The implementation initiative will help establish guidance on best practices in use today. • Australian trial • More details on the NATII in next presentation July 2015 30
