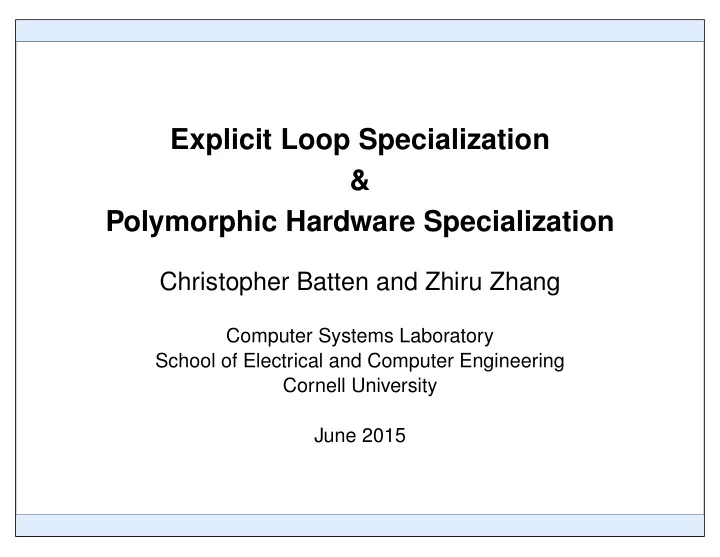

Explicit Loop Specialization & Polymorphic Hardware Specialization

Christopher Batten and Zhiru Zhang

Computer Systems Laboratory School of Electrical and Computer Engineering Cornell University June 2015

Explicit Loop Specialization & Polymorphic Hardware Specialization

Performance (Tasks per Second) Energy Efficiency (Tasks per Joule) General Purpose Processor

Design Power Constraint High-Performance Architectures Embedded Architectures Design Performance Constraint F l e x i b i l i t y v s . S p e c i a l i z a t i

• n

App Specific w/ HLS Programmable Accel

Cornell University Christopher Batten 2 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

void ordered_merge( int* out, int* in_0, int* end_0, int* in_1, int* end_1 ) { while ( (in_0 != end_0) && (in_1 != end_1) ) { *out++ = ( *in_0 < *in_1 ) ? *in_0 : *in_1; ++in_0; ++in_1; } }

LD ST GPP Lane Manager Mem Xbar L1 Memory System GPP L1 Memory System ST

Application-Specific HLS Programmable Accelerator

Cornell University Christopher Batten 3 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

XLOOPS: Explicit Loop Specialization [MICRO’14]

#pragma xloops unordered for ( i=0; i<N; i++ ) C[i] = A[i] * B[i] loop: lw r2, 0(rA) lw r3, 0(rB) mul r4, r2, r3 sw r4, 0(rC) addiu.xi rA, 4 addiu.xi rB, 4 addiu.xi rC, 4 addiu r1, r1, 1 xloop.uc r1, rN, loop

Unordered Atomic Ordered-Through-Registers Ordered-Through-Memory Fixed vs Dynamic Bound

GPR RF 32 × 32b 2r2w

GPP LLFU D$ Request/Response Crossbar L1 I$ 16 KB L2 Request and Response Crossbars L1 D$ 16 KB SLFU Lane 3 Lane 1

Lane RF 24 × 32b 2r2w Inst Buf 128× Lane RF 24 × 32b 2r2w Inst Buf 128× Lane RF 24 × 32b 2r2w Inst Buf 128×

Lane SLFU SLFU SLFU IDQ Lane Management Unit IDQ IDQ CIB 8× CIB 8× CIB 8× LSQ 16× LSQ 16× LSQ 16× DBN Lane Management Unit

Adaptive Execution

Cornell University Christopher Batten 4 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

XLOOPS Energy-Efficiency vs. Performance Results

In-order+LPSU

• vs. In-order Core

OOO 2-way+LPSU

• vs. OOO 2-Way

OOO 4-way+LPSU

• vs. OOO 4-Way

0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0

Normalized Performance

0.5 1.0 1.5 2.0 2.5 3.0 3.5

Normalized Energy Efficiency

0.5 1.0 1.5 2.0 2.5 3.0

Normalized Performance

0.5 1.0 1.5 2.0 2.5

Normalized Performance

◮ XLOOPS vs. Simple Core : Similar energy efficiency, higher power ◮ XLOOPS vs. OOO 2-way : Higher energy efficiency, mixed power ◮ XLOOPS vs. OOO 4-way : Higher energy efficiency, lower power ◮ Adaptive execution trades energy efficiency for performance ◮ Profiling and migration cause minimal performance degredation

Cornell University Christopher Batten 5 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

Performance (Tasks per Second) Energy Efficiency (Tasks per Joule) General Purpose Processor

Design Power Constraint High-Performance Architectures Embedded Architectures Design Performance Constraint F l e x i b i l i t y v s . S p e c i a l i z a t i

• n

App Specific w/ HLS Programmable Accel PolyHS

Cornell University Christopher Batten 6 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

PolyHS: Polymorphic Hardware Specialization

◮ Software engineers also want to create specialized yet flexible pieces

• f software to improve code efficiency and reduce design complexity.

◮ Software engineers develop carefully crafted libraries of algorithms

and data structures that are composible and polymorphic over the types of values and/or functors.

template < typename Itr0, typename Itr1, typename Itr2, typename Cmp > void ordered_merge( Itr0 out, Itr1 in_0, Itr1 end_0, Itr2 in_1, Itr2 end_1, Cmp cmp ) { while ( (in_0 != end_0) & (in_1 != end_1) ) { *out++ = ( cmp( *in_0, *in_1 ) ) ? *in_0 : *in_1; ++in_0; ++in_1; } }

How can we systematically (and automatically?) generate hardware specialization at design time that supports compile-time polymorphism?

Cornell University Christopher Batten 7 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

PolyHS Methodology

Poly-HS Synthesis Library of RTL for Poly-ASUs/DSUs code Library of Alogrithms and Data Structures Software Stubs Poly-HS Architecture Full-Chip RTL and Simulators Architecture Description Standard ASIC CAD Toolflow Poly-HS Chip Poly-HS Compilation Application Binary code Application Poly-HS Run-Time System SW Toolflow HW Toolflow

Cornell University Christopher Batten 8 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

PolyHS Architecture

L1 I$ GPP Poly Tile Poly Tile On-Chip Networks Poly ASU Poly ASU Poly DSU Poly DSU Config Crossbar Memory Crossbar L1 Data Cache CP Memory Network Interface Poly Tile GPP Poly Tile Poly Tile Poly Tile

Poly-HS Chip Poly-Tile

Crossbar

Carefully designed iterator-based abstraction enables composition of algorithm and data-structure specialization units Specialization units configured with metadata describing data types and functors

Cornell University Christopher Batten 9 / 10

Explicit Loop Specialization & Polymorphic Hardware Specialization

Performance (Tasks per Second) Energy Efficiency (Tasks per Joule) General Purpose Processor

Design Power Constraint High-Performance Architectures Embedded Architectures Design Performance Constraint F l e x i b i l i t y v s . S p e c i a l i z a t i

• n

App Specific w/ HLS Programmable Accel PolyHS
