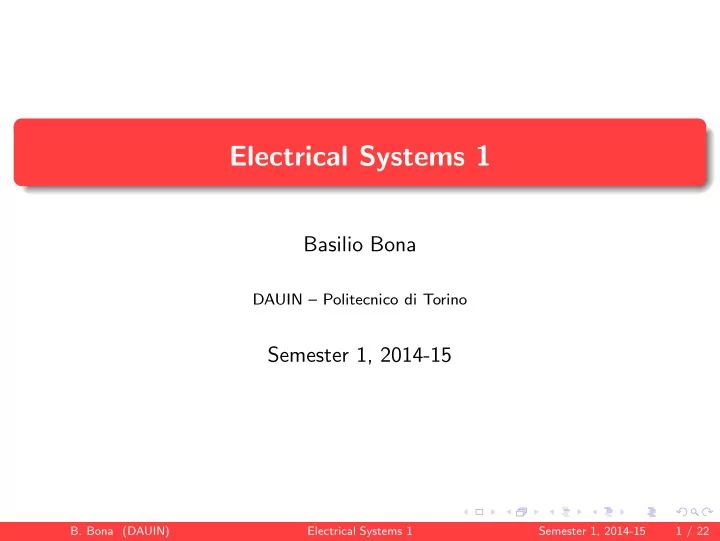

Electrical Systems 1 Basilio Bona DAUIN – Politecnico di Torino Semester 1, 2014-15 B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 1 / 22
Introduction An electrical network is represented by a closed graph of passive or active one-port electrical components The circuit behaviour is completely determined by the set of 2 N quantities, namely the N currents i k ( t ) , k = 1 , . . . , N flowing into the components, and the N voltages e k ( t ) , k = 1 , . . . , N between the component ports. B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 2 / 22
Components One-port components: Passive components : that can store or dissipate energy, but not create it. Active components : that can “create” electrical energy and supply it to the network. Since energy cannot be created from nothing these elements use other forms of external power, like hydraulic, mechanical, etc., that are transformed into electrical power and supplied to the system. B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 3 / 22
The basic quantities involved in electrical circuit modelling are: Currents i ( t ) voltages e ( t ) Other electrical quantities are Electrical charge q ( t ) Magnetic flux linkage λ ( t ) d q ( t ) d λ ( t ) ≡ ˙ ≡ ˙ q ( t ) = i ( t ) λ ( t ) = e ( t ) d t d t Power P ( t ) = e ( t ) i ( t ) is a signed quantity, whose sign convention is different for active or passive elements, as specified in Figure. B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 4 / 22
a) Power convention for active components: P ( t ) > 0 when the current flows from the positive pole b) Power convention for passive components: P ( t ) > 0 when the current flows into the positive pole. B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 5 / 22
Inductors An inductor is a one-port passive component that generates a flux linkage λ ( i ( t )) in response to the port current i ( t ) The port voltage is the time derivative of the flux, e ( t ) = d d t λ ( t ) = ˙ λ ( t ) The representation of a generic inductor is given in Figure B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 6 / 22
Examples of the constitutive relations between the current and the flux λ ( t ) = λ ( i ( t )) or between the flux and the current i ( t ) = i ( λ ( t ) in an inductive one-port element, are illustrated in Figure. B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 7 / 22
Electromagnetic circuit B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 8 / 22
The current i ( t ) flowing in the coils produces a magnetic field H ( t ), and a flux density B ( t ) B ( t ) = µ H ( t ) These two quantities are described by the following Maxwell equations rot H = ∇ × H = j ( t ) div B = ∇ · B = 0 where j ( t ) is the current density in the coils and µ is the magnetic permeability µ = µ r µ 0 = (1 + χ m ) µ 0 µ 0 is the air permeability µ r the relative permeability χ m is the magnetic susceptibility of the material usually χ m ≫ 1 in magnetic materials, so that µ ≫ µ 0 . B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 9 / 22
� H ( t ) · d σ = Ni ( t ) = F ( t ) magnetomotive force In a magnetic circuit the magnetomotive force Ni produces a magnetic flux Φ M , � � Φ M ( t ) = B ( t ) · d s = B ( t ) · d s = B ( t ) · S n S S where S = S n is the signed surface vector, and n is the unit normal vector to the section. If B = � B � , and B is always orthogonal to the surface S , then write Φ M ( t ) = BS The flux Φ is the same in every section of the magnetic circuit, both in the magnetic core and in the air gap. B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 10 / 22
� ℓ � ℓ � Φ � � µ + h µ + h H ( t ) · d σ = Ni ( t ) = H m ℓ + H a h = B = µ 0 µ 0 S since µ 0 H a = B ; µ H m = B The magnetic reluctance R is the ratio between the magnetomotive force and the flux, so Ni ( t ) = R Φ ( t ) where � ℓ R = 1 µ + h � h ≈ S µ 0 µ 0 S since µ ≫ µ 0 . B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 11 / 22
The total flux linkage λ is obtained considering the N windings, so we write the constitutive relation λ ( t ) = NΦ ( t ) and in general λ ( i ( t )) = N 2 ( t ) i ( t ) R ( t ) If both N and R are constant parameters we have a linear relation λ ( t ) = Li ( t ) where L = µ 0 N 2 S h is called the (auto-)inductance of the one-port component. In linear cases the port voltage is simply e ( t ) = L d d t i ( t ) B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 12 / 22
Capacitors A capacitor is a passive one-port component that stores a charge q ( t ) in response to an applied port voltage e ( t ); the port current is the time derivative of the charge, i ( t ) = d d t q ( t ) = ˙ q ( t ) B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 13 / 22
An example of the constitutive relations between voltage and charge q ( t ) = q ( e ( t )) or between charge and voltage e ( t ) = e ( q ( t )) in an capacitive one-port element are illustrated in Figure B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 14 / 22
Electrostatic circuit B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 15 / 22
The electrostatic field E between the two plates, is normal to them with equipotential surfaces parallel to the planar plates (except in the vicinity of the plate borders). The field norm is � E � = E = e ( t ) d where d is the distance between the planar plates. The electric flux Φ E due to the total accumulated charge is established between the two plates � Φ E ( t ) = E ( t ) · d s S If the flux is constant across the surface, we have Φ E = E · S = S E · n s where n s is the unit norm vector orthogonal to the surface of area S . B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 16 / 22
For a closed surface we have E ( t ) · d s = q ( t ) � Φ E ( t ) = (1) ε S where q ( t ) is the total charge, ε = ε r ε 0 = (1 + χ ) ε 0 is the dielectric permittivity ε 0 is the vacuum permittivity, ε r the relative permittivity of the dielectric material and χ is the electric susceptibility . The relation between the electric field E and the displacement field D is ε Φ E ( t ) = D = ε E = q ( t ) S Since � D � = q ( t ) / S , introducing the capacitance C ( t ) = q ( t ) e ( t ), we have ε = ε r ε 0 = q ( t ) e ( t ) = C ( t ) e ( t ) e ( t ) = C ( t ) d d d S S S and C ( t ) = ε r ε 0 S ( t ) d ( t ) B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 17 / 22
If C is constant, the constitutive relation between voltage and charge in planar surface capacitors is established as q ( t ) = ε r ε 0 S e ( t ) = Ce ( t ) d The current i ( t ) flowing into the capacitor is i ( t ) = d d t q ( e ) = C d d t e ( t ) so, when e ( t ) is a constants, as in the case of a battery supply, the current into the capacitor is zero. B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 18 / 22
Resistors A resistor is a passive one-port component that dissipates the electrical input power, usually transforming it in heat in response to an applied port voltage e ( t ) or an applied current i ( t ) The relation between the port current and the port voltage is instantaneous, i.e., no time derivatives of electrical quantities are involved e ( t ) = R ( i ( t ) , t ) or i ( t ) = G ( e ( t ) , t ) When the resistor is constant and linear we have the well-known Ohm’s law or its inverse i ( t ) = Gi ( t ) = 1 e ( t ) = Ri ( t ) or R i ( t ) B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 19 / 22
B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 20 / 22
Two planar conductive plates of equal surface S are separated by a length ℓ of conductive material having an electrical resistivity ρ or specific electrical resistance ; it is a measure of the characteristics of the internal molecular structure of the conductive material . B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 21 / 22
Constitutive relations e ( t ) = R ( i ( t )) = ρ ( t ) ℓ ( t ) S ( t ) and i ( t ) = G ( e ( t )) = σ ( t ) ℓ ( t ) (2) S ( t ) σ is the conductivity of the material. When an alternating current flows in the conductor the skin effect makes current flow near the boundary of the conductor, reducing the total cross-section that becomes S ′ < S . Similarly, if two conductors are near and both carry an alternating current, their resistances will increase due to the proximity effect. The resistivity usually changes with the temperature T , so at the end it will be correct to write e ( t ) = R ( i ( t )) = ρ ( t , T ) ℓ ( t ) S ′ ( t ) B. Bona (DAUIN) Electrical Systems 1 Semester 1, 2014-15 22 / 22
