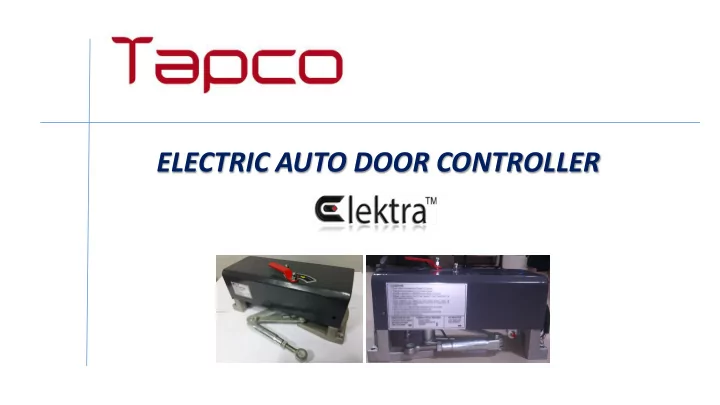

ELECTRIC AUTO DOOR CONTROLLER

INDEX  Introduction ( Brief Company Profile )  Objective  Brief specification  Product Superiority  Advantage over Pneumatic legacy system  Product Qualification  Product Size Dimension  Existing Installation Details  Feed Back from our Clients  Capabilities  Sales and service support

Introduction Company Profile Welcome to TAPCO Pneumatic Pvt. Ltd., TAPCO PNEUMATICS is an ISO 9001:2008 certified organisation, established in the year 2003. We are specialized in designing and manufacturing of Electrically Operated Auto Door controllers under the brand name of “ ELEKTRA “ We have strong base in other numerous of pneumatic and electrical actuated devices with various customer base. We are committed to quality in all aspects We are authorized dealers of other products too :-

Objective Objective of Development of this Product The main motive to launch this product is to adhere with the state-of-art technology in the automobile passanger transportation’s safety and low cost operation This Electrically operated Door closer is easy to use with highest degree of passenger safety and highly reliable in operation. This product can be easily fitted into all types of Mini Vans, Mini Buses and all types of standard buses.

Brief Specification Brief Technical Specification Type Electric Auto Door Opening and Closing System Model BFD-9001 ( With Auto / manual Provision ) Door Type Bi-folding, single in-swing, LH and RH Load From 25 Kg up to 50 Kg (±.5kg max) System Electrically Operated with Mechanical Arrangements Power Rating 12V DC ( 15% max Variation permissible ) 2A, 40W Application Vans, Buses and Mid Range Vehicles Product Status Patented product

Product Superiority Auto door controller – Product Superiority  Driven by Highly Efficient DC Motor  High quality linkage assemblies ensures the proper operation  Intelligent Electronic Controller Governs the safety aspects  Overload protection devices for safety and reliability  LED indication and Buzzer provision for opening for cautioning the passenger  Motor Speed Control device for adjusting the door opening/closing speed  Total device protected with good quality cover ( IP41 )  Robust design for managing the automotive vibrations and different road condition  Easy Installation facilities with required electrical accessories  Energy consumption reduced by 80 – 90% compared to pneumatic drives  Improves bus fuel efficiency by 2%  CO2 emissions cut by 1.9 tonnes per bus in city traffic per year

Advantages Advantages over existing pneumatic Door closer system  Does not require Separate Air Compressor system and its accessories like Solenoid Valve, Flow control Valve etc.,  Mainly suitable for all types of Hydraulic / pneumatic break system buses  Low cost operation, Leads into considerable fuel saving  Intelligent controller ensures the passenger safety, if any obstacle happens, door will come to home position and thereby accidents are avoided  Easy change over from Auto to Manual mode when battery drains or if there is any emergency, just by turning the Red colour Handle.  Simple procedure for Installation

Product Qualification Product Testing at our R&D Facility  Each and every assembly has been tested thoroughly in both mechanical as well as electronically, thereby ensuring the QUALITY in all respects Click here to see the  Test Records are maintained properly for product tracking video of Qualification test at our R&D Lab  Doubly ensuring the Electronic controller’s safety norms  Already 3 Lakhs cycle tested with various conditions, still qualification test is continued, planned up to 10 lakhs min. On Road Testing  Installed in one of the new and existing vehicle and tested thoroughly with various road conditions and observed its proper function  5 lakhs on-off operations over the period of 5 months in a Mini Bus – Results

Product Size - Dimension Product – Brief details, Size and Dimension 5 4 190 1 2 3 120 1. Speed Control adjustment device 6 2. Thermal Circuit Breaker 320 3. Location of LED Indicator 4. Auto / Manual Lever for Changeover Ø8.5, 4-Holes for Mounting 5. Product Caution Label with M8 x 40 long Hex head Bolt 6. Product Code label

Existing Installation Videos Installation - 1 Installation - 2 Installation - 3 Click here to see the function Click here to see function in the Mini Bus “ Elektra “ Auto Door Controller Installed Under the steps entry of mini bus in-swing Design

Feed Back from Customer

Capabilities

Sales, Service Support Sales Office Service Point Contacts TAPCO Pneumatic Pvt. Ltd., Bangaluru : +91 97403 67177 No. 61 Kanniamman Kovil Street Chennai : +91 87545 71091 / 81 Ambattur Industrial Estate ( North Phase) Chennai 600 098 Coimbatore : +91 87545 01218 India Delhi : +91 93113 67311 Tel : +91 44 2624 4369 / 2625 0598 Email : sales@tapco.co.in / airworks@tapco.co.in Hyderabad : +91 80088 21444 Website : www.tapco.co.in Ludhiana : +91 93161 87772 Mobile No. +91 99401 36363 / 99406 13091 Pune : +91 99400 09640 Service Support  Apart from our unit, additional cabling, 3 way toggle switch, Buzzer for dash board can be given at extra cost  24/7 service support facility  Installation support at any part of country  Sales network available at all major cities.
