Earth Observation Applications in Pakistan Jawed Ali Qureshi 7 th GEOSS Asia-Pacific Symposium, 26-28 May 2014 Tokyo, Japan Pakistan Space & Upper Atm osphere Research Com m ission 1 Socio-economic Earth Observation Applications

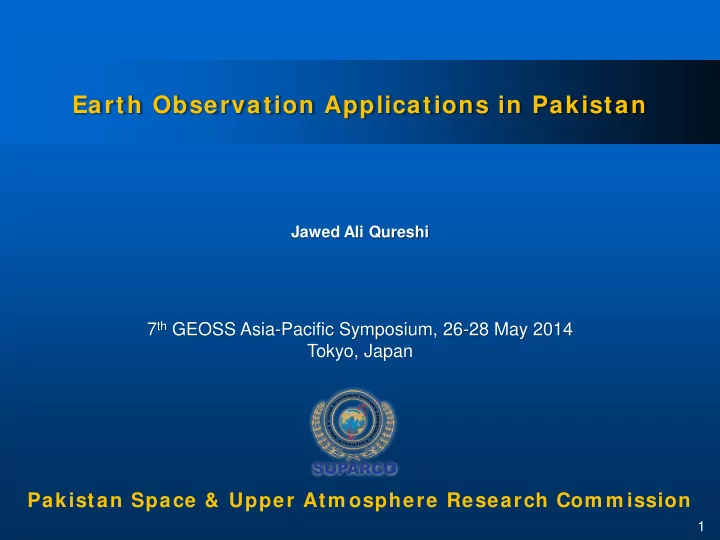

  1. Earth Observation Applications in Pakistan Jawed Ali Qureshi 7 th GEOSS Asia-Pacific Symposium, 26-28 May 2014 Tokyo, Japan Pakistan Space & Upper Atm osphere Research Com m ission 1

  2. Socio-economic Earth Observation Applications Development Landsat 8 GeoEye SPOT 6/7 2014 QuickBird Pleiades IKONOS VHR Optical, SAR & HS Appl SPOT 4 &5 2010 SPOT 4 , 5 & MODIS 2008 • Web based Applications & Geo-spatial Systems SPOT 4 & 5 • Atmospheric Data Receiving & Processing Centre (ADRPC) 2005 SPOT 4 & 5 2004 SPOT 2 RS/ GIS Commercial Applications 2002 NOAA-APT & HRPT Landsat 4 & 5 1995 SPOT 1 Advanced image processing Landsat 2 & 3 systems and GIS NOAA Landsat 1 1988 • Satellite ground station • Digital image processing 1973 • Optical RS Systems • Visual interpretation 2

  3. Earth Observation Applications Landuse / Landcover Water Resources Forestry Agriculture Environmental Geology Coastal Ecosystem Disaster Monitoring Monitoring & Glaciology Geographic Information Surveying & Urban National Spatial Data Settlements & Spraw l System Planning Infrastructure

  4. Agriculture in Pakistan  Agrarian Economy  Most of the agriculture practiced along the fertile Indus river basin 4

  5. Satellite based Crop Monitoring System  Reliable and in time Availability of Crop Statistics  Information to Stakeholders to Facilitate Farmers  Pilot Work on few Major Crops in 2005  Development of an Operational Monitoring System in Collaboration with UN-FAO  Regular Forecasting of Winter and Summer Crops Each Year  Pak-SCMS Monthly Bulletin [ http: / / www.suparco.gov.pk/ pages/ pak.sc ms.asp] 5

  6. Satellite based Crop Monitoring System Blend of Satellite and Ground Systems SPOT 5 (2.5, 5, 10 m) SPOT VGT (1000 m) Ancillary Ground Data High Res Image Rainfall NDVI Max Temp Precipitation Min Temp Irrigation Max Temp Fertilizer Min Temp Field Info Irrigation Analysis Forecast/Estimation 6

  7. Field Reporting Data Collection System Improvement of data transmission of ground truth information through use of smart phones based on Android platform. Mobile Application I nterface Database m anagem ent 7

  8. Crop Monitoring Portal Architecture Architecture The Crop Monitoring Portal is based on a distributed service oriented architecture relying on free and open source components. The Portal will represent a unique entry point for:  Accessing and displaying data on main RABI and KHARI F crops, crop health and agro-meteorological information stored in an RDBMS based archive.  Accessing and displaying time series of satellite imageries such as SPOT-VGT decadal NDVI in a web mapping environment.  Accessing and displaying any other geospatial layers stored locally or on remote servers which are pertinent to the portal. 8

  9. Modules  Crop Data Provide table, chart and map outputs from historical crop data a. Charting b. Mapping  Agrom et Conditions a. Charting  Crop Status a. Charting  Geospatial a. Mapping b. NDVI 9

  10. GLAM-Pakistan system 10

  11. Rapid Crop Dam age Assessm ent 11 Aug 2 010 22 Aug 2 010 27 Aug 2 010 17 Sep 2 0 1 0 11

  12. Training Program s 2 0 1 3  University of Maryland-W ashington DC: “Pakistan Satellite-Based Crop Monitoring” Workshop  SUPARCO-I slam abad: 8th Targeted Training Course: "Field Data Collection Automation through Mobile Technology"  CRS-Lahore: 7 th Targeted Training Course: "Field Data Collection through Mobile Technology"  SCF-Lahore: 6 th Targeted Training Course: "Advanced Training on Crops Yield Forecast & Estimation System  Lahore: Awareness Workshop on Crop Information Portal: status of development and next steps  SUPARCO I slam abad: 5 th Targeted Training Course: "Land Cover Database Enrichment“ 2 0 1 4  I slam abad, Pakistan: “Crop Information Portal and GeoNetwork software” 12

  13. W ater Resources Managem ent for Agriculture  Most of the agriculture is dependent upon Indus Basin Irrigation System (IBIS) comprising:  5 principal rivers: Indus, Jhelum, Ravi, Chenab and Sutlej  3 Major Storage Reservoirs  19 Barrages  57 Canals  Over 140,000 Watercourses 13

  14. W ater Courses Managem ent Collection of Data for W atercourses Checking the work at Site 1 2 Real time report received at remote Client 3 4 14

  15. I rrigation Netw ork in Punjab 140,000 water courses mapped FID 0 Shape* Point OBJECT_ID 1 IMIS_CODE 3.143E+16 ZONE_ Bahawalpur CIRCLE Bahawalnagar DIVISION Fordwah PUNJAB SOURCE Mirza Disty WC 38250R MOGHA_TYPE OF RB DISCHARGE 1.76 DIA 0.7 Y H H1 1 CREST_RL 533.41 MMH 0.2 SIDE Undefine 15

  16. Flood and Erosion Modeling and I m pacts on Agriculture in the I ndus River Basin  Preliminary bank erosion model for test areas of the Indus River;  Bank erosion historical analysis of the Indus River for modeling;  Atlas on impacts and recovery of agriculture; Study Area  Capacity building of SUPARCO staff Training on DGPS Collecting Data River Discharge Profile 16

  17. Land Cover Mapping of Pakistan China GB KP Afghanistan Punjab India Balochistan LAND COVER CLASSES  Iran AGRICULTURE Trees Closed - TNc WATER BODIES, SNOW, ICE    River Perennial - Rp Tree Orchards - TCIr Trees Open - TNo    Shrubs Orchards - SCIr Shrub Closed (with Trees River Bank - RB   Herbaceous Crop Irrigated - HCIr Sparse) – SNc Salt Lake - SL  Herbaceous Crops Irrigated -  Shrubs Open (with Trees Sparse)  Water Bodies - WB Sindh  Snow Permanent - SnP Saline Fields – HCIrS - SNo    Glacier - Gl Herbaceous Crop Irrigated in Flood Herbaceous Closed to Open Plain - HCIrFP (with Trees and/or Shrubs BARE AND BUILT-UP AREAS   Herbaceous Crop Post-flooding - Sparse) – Hnco Sand Dunes (Desert) - SaD HCpf WET AREAS (VEGETATED AND  Sand Dunes with Natural  Herbaceous Crop Rainfed – HCRf NON VEGETATED) Vegetation - SaDNV   Mangroves - MN  Barren Land (with Shrubs Herbaceous Crops surrounded by  Tree Orchards - HTCIr Shrubs Closed to Open in Wetland - Sparse) - BL   Herbaceous Crop in Sloping Land – SNcoW Saline Area (with Shrubs HCSL  Wetlands (with Natural Vegetation) Sparse) – SA  – GFNW  Bare Rocks (with Sparse Herbaceous Crop Rainfed in Desert  Vegetation) - BRSV Area – HCRfD Trees Open in Wetland – TNoW   NATURAL VEGETATION Trees Closed in Wetland – TNcW Desert Flat Plain - SaFP   (TERRESTRIAL) Water Logged Bare Area – WLBA Built-Up Area – BU 17  Trees Forest Plantation – TFP  Mud Flat – SaW

  18. Recom m endation Pakistan would be pleased to collaborate in Earth Observation Applications for socio-economic development with other countries as well as International organizations. 18

  19. Thank You 19
