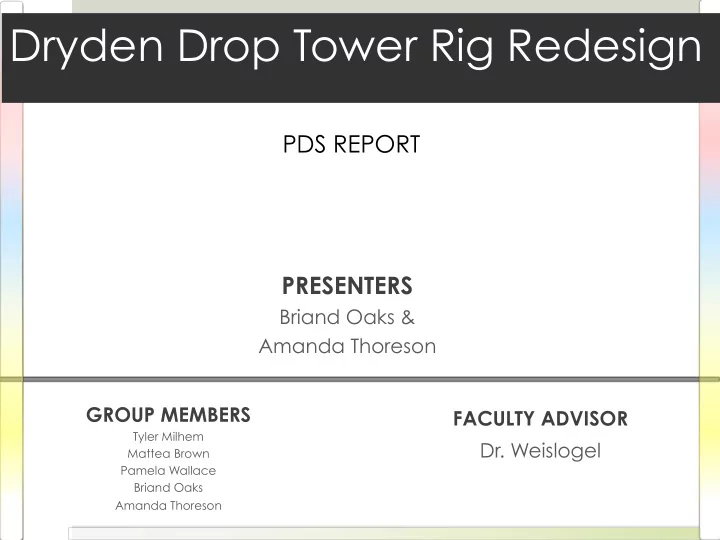

Dryden Drop Tower Rig Redesign PDS REPORT PRESENTERS Briand Oaks & Amanda Thoreson GROUP MEMBERS FACULTY ADVISOR Tyler Milhem Dr. Weislogel Mattea Brown Pamela Wallace Briand Oaks Amanda Thoreson
Overview ¤ Background ¤ Issues and Solutions ¤ Product Design specifications ¤ Project Plan ¤ Questions
Background – The Dryden Drop Tower ¤ Experiments in free-fall experience reduced gravity conditions! ¤ 6 stories high ¤ Up to 61 drops in one day! ¤ 2.1 seconds of microgravity
Background – Background – The Current Rig The Current Rig ¤ Holds Various Types of experiments ¤ Houses video camera ¤ Provides lighting for experiments ¤ Houses batteries to power lights ¤ Contains adjustable weights for balancing ¤ Experiences ~14g deceleration
The Issues ¤ Primary Customer Issues ¤ Employs a camcorder featuring only 60fps ¤ Cannot accommodate the Phantom V4.3 ¤ Release vibrations increase g- force on experiment ¤ Current lights are not bright enough for Phantom
The Issues ¤ Secondary Customer Issues ¤ Heavy ¤ Difficult to access experiment components in rig ¤ Batteries and weights are taped in place ¤ Batteries must be removed from rig to recharge
The Solution – Design A New Rig ¤ Have an ergonomic user friendly geometry ¤ Acc ommodate all desired internal components ¤ Solidworks model and prototyping ¤ Design new rig geometry to reduce vibrational noise and rapid deceleration ¤ Finite Element Analysis and accelerometer testing ¤ Add automation
Product Design Specifications Primary Internal Customer Requirements: Secondary Internal Customer Requirements: ¤ High speed video – 1200 fps ¤ Consistent units of parts – metric (Camcorder – 60 fps) 20x ¤ Fastener size variance ¤ Vibrational dampening – 10 kHz ¤ Small number of assembly parts ¤ Experiment lighting – 3 positions ¤ Accommodate various sized experiments ¤ Withstand deceleration of 14 g’s for ¤ Material machinability multiple drops
Gantt Chart Dryden Drop Tower Rig Mo Mont nth h Jan '13 Feb '13 March '13 April '13 May '13 June '13 We Week 13-19 20-26 27-2 3-9 10-16 17-23 24-2 3-9 10-16 17-23 24-30 31-6 7-13 14-20 21-27 28-4 4-11 12-18 19-25 26-1 2-8 9-15 16-22 23-29 De Deliverables CAP CAPSTONE E AS ASSIGNMEN ENTS Proposal 19th PDS Report 29th PDS Presentation 29th Progress Report 14th Progress Presentation 5th Extra Presentation 12th AN ANAL ALYSIS Vibrational 5th Virtual Prototyping (FEA) 15th RI RIG HOUSING Rig Material Selected 31st Companion Component Selection 22nd Final Concept/Design Review 1st Design Selection 7th Design Iteration 1 Design Iteration 2 Design Iteration 3 Submit Design for Manufacturing 7th Manufactured rig received LI LIGHTI TING Type Selected Light Mounts designed Lights ordered Light Mounts ordered Lights in house Light mounts in house MI MIRRORS Type Seleted Mirror mounts designed Mirrors ordered Mirror mounts ordered Mirrors in house Mirror mounts in house CAM CAMERA ERA Camera mounts designed Camera mounts ordered Camera mounts in house BAL BALAN ANCE CE WEI EIGHTS Designed Sourced Ordered BAT BATTERY ERY Designed Sourced Ordered AUTOMAT AU ATION Designed Coded Troubleshot Wired TE TESTI TING Test Manufactured Rig 4th Install Companion Components 4th Test Loaded Rig 28th Troubleshoot Rig Troubleshoot Component Interfacing DELIVERY TO DE O CUSTOM OMER Legend: Operational Delieverable Short timeline Med. timeline Long timeline
Project Plan Deadlines ¡ Milestones Vibration analysis 2/5/2013 ¡ Virtual prototyping and analysis (FEA) 2/15/2013 ¡ Rig material selection 2/22/2013 ¡ Companion component selection 2/29/2013 ¡ Submit final design for manufacturing 3/7/2013 ¡ Test manufactured rig 3/28/2013 ¡ Install companion components 4/4/2013 ¡ Test loaded rig 4/4/2013 ¡ Configure and wire automated components 5/16/2013 ¡ Finalize Documentation 6/2/2013 ¡
Questions
