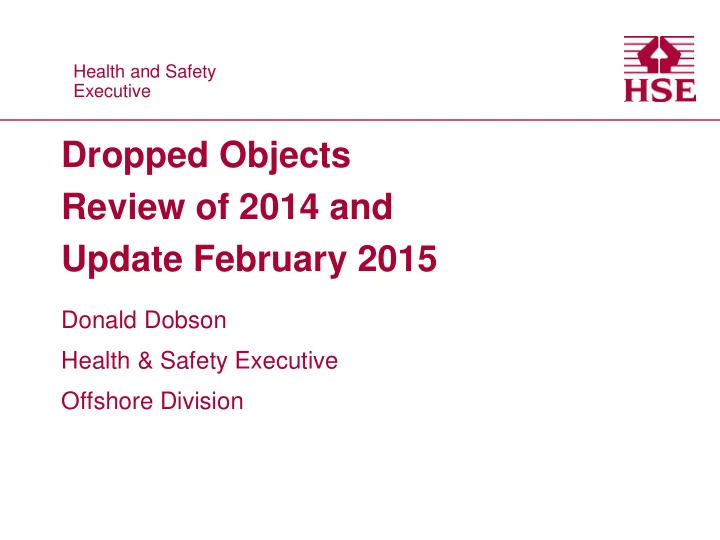

Health and Safety Health and Safety Executive Executive Dropped Objects Review of 2014 and Update February 2015 Donald Dobson Health & Safety Executive Offshore Division Dropped objects quarterly totals 40 35 30 25 20 15 10


  1. Health and Safety Health and Safety Executive Executive Dropped Objects Review of 2014 and Update February 2015 Donald Dobson Health & Safety Executive Offshore Division

  2. Dropped objects – quarterly totals 40 35 30 25 20 15 10 5 0 Q3 - Q2 - Q1 - Q4 - Q3 - Q2 - Q1 - Q4 - Q3 - 2008 2009 2010 2010 2011 2012 2013 2013 2014

  3. 2014 - All Incidents 50 45 40 35 30 25 20 15 10 5 0 Rig & Well Ops Crane & Lifting Other

  4. 2015 - All Incidents 7 6 5 4 3 2 1 0 Rig & Well Ops Crane & Lifting Other

  5. Derrick & Well Ops Incidents 2014 25 Dropped object 20 Lifting equip Fall from height 15 Trips & slips Handling injury HCR 10 Use of tool Moving machinery 5 Pressure equip Structural 0 Classification

  6. Derrick & Well Ops Dropped Objects – 2014 5 4.5 4 Pipe handling Derrick fitting 3.5 Tubular 3 Personal 2.5 Lifting Equip 2 Drilling equip 1.5 Wireline Other 1 0.5 0

  7. Derrick & Well Ops Incidents • Running ESP cables, sheave hinge roller (4.5kg) fell 12m to rig floor • Down-hole gauge carrier (142kg & 5.5m) detached from wire-line & toppled to deck • During recalibration of hydrocracker (sic) and encoder plastic gear (0.5kg) fell 30m to rig floor • Link-tilt crank to bale pin (0.45kg) backed out and fell 30m to rig floor • Top drive struck cross-member of dolly rails; bolts failed & cross-member (40kg) fell 3m to rig floor • Steel tube (2.9kg) fell 4.5m from rig floor during operations • Removing cap (3.5kg) from test tree actuator, floorman dropped cap 10m to rig floor • Picking up joint of 7” tubing with 7 5/8” elevators, it slipped out and slid back to cat-walk • Rigging up wire-line, line parted & fell 21m to drill floor when sheave raised

  8. Derrick & Well Ops Dropped Objects – January & February 2015 2 1.8 1.6 Pipe handling Derrick fitting 1.4 Tubular 1.2 Personal 1 Lifting Equip 0.8 Drilling equip 0.6 Wireline Other 0.4 0.2 0

  9. Derrick etc. Dropped Objects 2015 • During high winds light fixture bracing (0.9kg) detached & fell 10m to rotary table • During very high winds section of cable rack detached & fell to rig floor • Descending top drive contacted tugger line (1.05kg/m); both ends fell to rig floor; sheave at 44m • Section of drive track (28.6kg) detached from vertical pipe handler & fell 34.4m to doghouse to rig floor

  10. Crane & Lifting Operations – 2014 7 6 5 Crane failure Load 4 Collision 3 Unsecured item Fitting 2 1 0

  11. Crane & Lifting Operations – January & February 2015 1 0.9 0.8 0.7 Crane failure 0.6 Load 0.5 Collision Unsecured item 0.4 Fitting 0.3 0.2 0.1 0

  12. Crane & Lifting Operations • Fabric bag containing DP protectors (140kg) detached from crane hook & fell 4.6m to deck • Starting crane, it slewed dislodging chock (80kg) from rest; chock fell 8m onto pipework • Installing jacket extension, tubular piece (15 Tonne) detached from lifting frame and fell to seabed. (Bolted flange failure) • Moving diverter running tool (1100kg) to catwalk, sling broke & tool fell 2m to pipe deck • Crane rope guide failed; pieces (1.1kg & 0.6kg) fell 6,9m to walkway • Sheet steel cover on palfinger crane hydraulics detached in high wind & fell to pipe deck • Lowering container (9.8 tonne), it was dropped 3.4m onto timber deck beams and well test pipe-work

  13. • Removing 12” spool, it slipped in rigging and dropped 1.5m, striking scaffold • Lowering block & booming out, headache ball struck sheave; whip-line parted; headache ball landed on deck of supply vessel • Using crane to free brine hose tangled with potable water hose, strop failed and hose fell 9m striking member of deck crew • 3m stinger found to have detached from whip line hook and assumed to have fallen into sea 2015 • During crane ops, crane rope struck gas detector reflector plate (0.5kg) which fell 30m to scaffolding • Sheath protection pin (0.6kg) from crane main block sheave dislodged & fell 44m to main deck

  14. Other dropped objects – 2014 35 30 25 Fittings 20 Unsecured 15 Personal 10 5 0

  15. Fittings • During jarring, section of passive fire protection (6kg) detached & fell 4.2m onto scaffold structure • Section of corroded scaffold tube (2.9kg) found on walkway; believed to have fallen 6m • Length of corroded grating (1.2kg) fell 19m from walkway to cellar deck • Angle iron bar (3.5kg) found on walkway at bottom of flare stack after bad weather • Piece of cladding found at deck level between two exhaust stacks after adverse weather • Scaffold pole (4.5kg) fell 5m to deck in adverse weather • Redundant lighting bracket (2.2kg) detached & fell 14.5m to level 1. • Sign (7kg) detached in adverse weather and fell 7m onto top of container • During high wind section of cladding (13.2kg) detached & fell 7m to walkway, striking pipework on way down • Metal blank plate (14.5kg) fell 11m from accommodation module to walkway

  16. • Piece of sheet metal (5.4kg) dislodged from platform in high wind & fell 7m • Section of sheet metal (45kg) detached from underside of rig stair in high wind & fell 10 to walkway

  17. Unsecured • Crew member stepped onto grating; unsecured section (8.5kg) gave way & fell 3m to process deck

  18. Other dropped objects – January & February 2015 5 4.5 4 3.5 3 Fittings Unsecured 2.5 Personal 2 1.5 1 0.5 0

  19. Other Dropped Objects - 2015 • During high winds section of fibre-glass pipe lagging fell from pipe rack to walkway • During visit to NUI section of derrick cladding found to have fallen into skip. Believed due to high winds • After high winds section of cladding from accommodation missing, believed fallen into sea. • During high winds piece of uni-strut and perspex (8.25kg) fell 3.6m to walkway • Removing junction box (9.1kg), it slipped out of supporting rope & fell 5m to walkway • Pin (1kg) from shackle from gangway cone securing strap found fallen 12.4m to main deck • Bundle of instrument tubing (4kg) dropped through grating & fell 4m striking individual on shoulder-blade
