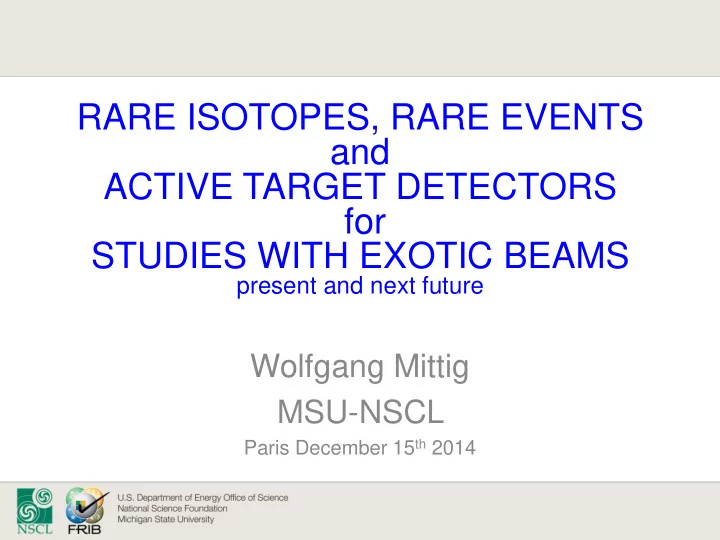

RARE ISOTOPES, RARE EVENTS and ACTIVE TARGET DETECTORS for STUDIES WITH EXOTIC BEAMS
present and next future
Wolfgang Mittig MSU-NSCL
Paris December 15th 2014
Click to edit Master title style RARE ISOTOPES, RARE EVENTS and - - PowerPoint PPT Presentation
Click to edit Master title style RARE ISOTOPES, RARE EVENTS and - - PowerPoint PPT Presentation
Click to edit Master title style RARE ISOTOPES, RARE EVENTS and ACTIVE TARGET DETECTORS for STUDIES WITH EXOTIC BEAMS present and next future Wolfgang Mittig MSU-NSCL Paris December 15 th 2014 Relevant Questions Best Tools Accel., exp.
SLIDE 2
SLIDE 3
Click to edit Master title style
FRIB: Facility for Rare Isotope Beams
High Intensity Heavy Ion Beams: 200MeV/n 400kW O to U
SLIDE 4
Nucleo-synthesis in r-process
SLIDE 5
X-ray bursts
SLIDE 6
Why an Active Target-TPC?
- Nuclear Structure Investigations of
Exotic Nuclei with Secondary Beams 1) from normal kinematics to inverse kinematics
beam target p,d,3He
12C,40Ca 18C,32Mg
p,d,3He
SLIDE 7
Why an Active Target-TPC?
- Nuclear Structure Investigations of
Exotic Nuclei with Secondary Beams 1) from normal kinematics to inverse kinematics
beam target p,d,3 He
12C,40Ca 18C,32Mg
p,d,3He
SLIDE 8
Normal kinematics versus inverse kinematics
- Example: d(32Mg,33Mg)p gs,100keV
SLIDE 9
Beam Intensity ~10-9 with respect to stable beams
Thick Targets without resolution loss: tracking of reaction vertex High detection efficiency: 4π
SLIDE 10
I.Tanihata et al., PRL 100, 192502(2008)
Experiment at Triumf-Isac 1-2*103 11Li/s
SLIDE 11
Experiment at Triumf-Isac 1-2*103 11Li/s
- G. Potel et al., Phys. Rev. Lett. 105 (2010)172502
SLIDE 12
Soft Giant resonance in 68Ni by (a,a’)
- M. Vandebrouck et al., Phys. Rev. Lett. 113, 032504 (2014).
SLIDE 13
Nuclear Equation of State: Cluster States from low density gas to nuclear systems
Low density gas: chemical equilibrium n,p,d,a,… Nuclei: r=r0 n p a d
SLIDE 14
Nuclear Equation of State: Cluster States from low density gas to nuclear systems
Low density gas: chemical equilibrium n,p,d,a,… Nuclei: r=r0 Low density nuclei: Loosely bound clusters: r~r0/10 n p a d
SLIDE 15
Cluster States: from low density gas to nuclear systems
22C AQMD calculation by Xi-Guang Cao et al.,
private communication, RMS=3.689(3.0) fm
….,M.Girod,… constrained HFB
SLIDE 16
14C (T.Suhara(Kyoto)and Y.Kanada-En’yo(YITP),2010)
Shell Model (Spherical)
14C
α α α n n
Equilateral-triangular (oblate) Linear-Chain (prolate)
Structures which are expected to appear on the (β、γ) plane α α α n n
Obtuse-angle triangular (triaxial)
α α α n n n α α α
Excess neutrons deform largely (triaxial)
SLIDE 17
10Be+4He 14C
SLIDE 18
SLIDE 19
Principle of detection- proto AT-TPC
Position
- >(x, y)
He, H, D …
e- e- e- e- e- e- e- e- e- e- e- e- e-
- 50 kVDC (1kV/cm)
Insulator gas volume N2 gas 30 kV/cm x 6 cm = 180 kV
NIM A 691 (2012)39 by D. Suzuki, et al.
SLIDE 20
IAS 124,132Sn(p,p)
Tan Ahn et al., ANL-Caribu, March 2013 Low Gain
SLIDE 21
Example: 2p decay of 45Fe
K.Miernik, PRL 99, 192501 (2007), Q2p 1:15 MeV
SLIDE 22
P R
SLIDE 23
Tentative of direct observation “democratic” 3 body decay of
12C(0+ 2, Hoyle state) in the 3 dim 10Torr isobuthane G.Astier
SLIDE 24
SLIDE 25
55cm diameter 10000 pads 5000 pads routed by hand, 8 Layers PCB: MSU Bulk: CEA-IRFU
SLIDE 26
IRFU, GANIL, CENBG MSU
For different detectors AT-TPC: ~10000channels Data flow at 1000cts/s 512*104*103*2 ~1010 bytes/s =10Gbytes/s before reduction
SLIDE 27
TACTIC: York-TRIUMF Collaboration
Mizoi et al MSTPC
AT-TPC at MSU Actar-Ganil-Saclay- CENBG CNS-Riken
Anasen
Fission TPC LLNL
IKAR-GSI
Maya@Ganil
Prototype AT-TPC at MSU O-TPC at TUNL
?
R.Raabe MaiKo
OTPC Warsaw-ORNL
SLIDE 28
- Operating Active Targets have largely improved
sensitivity for reactions by rare isotope beams; they have already produced many results
- The At’s need high dynamics, from several hundreds
keV to GeV, internal trigger and detector gases that contain the target wanted as pure as possible
- Promising subjects that can be particularly well studied
with AT-TPCs are: reactions with beams near dripline, low energy recoil reactions (quasi-elastic, giant resonances,…), multi-particle correlations near threshold as signature of cluster emission; rare decays
Conclusion
- W. Mittig TPC Paris January 15 2014
SLIDE 29
AT-TPC Collaboration
Lawrence Berkeley National Laboratory I-Yang Lee, Larry Phair Lawrence Livermore National Laboratory Mike Heffner University Notre Dame Umesh Garg, Jim Kolata Michigan State University Daniel Bazin, Wolfgang Mittig, Bill Lynch, Z.Kooley, Fernando Montes, Daisuke Suzuki, Z. Chajecki, Tan Ahn, Saul Beceiro Novo Saint Mary's University (Canada) Rituparna Kanungo Western Michigan University Michael Famiano
SLIDE 30
SLIDE 31
MAIKo RCNP OSAKA (-PIC based active target for inverse kinematics)
SLIDE 32
R O B G r > 0 r < 0
6He beam 6He
α θlab TKE r = 0
6He +4He 2.5MeV/n AT-TPC proto at ND
- Phys. Rev. C 87, 054301 (2013)
Ereac
SLIDE 33
Specifications
Large volume 100 cm x 60 cm e.g. D2 10 mg/cm2 @ 1 atm High granularity 10,000 pads, ~5 x 5 mm2 Bρ analysis Solenoid 2 T (Triumf)
Commissioning: spring2014
SLIDE 34
SLIDE 35
Prototype Exp. 10Be+4He
A.Fritsch, S.Beceiro Novo
SLIDE 36
- S. Beceiro Novo, F.Abu-Nimeh, D.Bazin,WM
10000 pads Triangles Small base 5mm Big base 10mm
SLIDE 37
①, Shell Model ②, Triaxial (K=0) ③, Triaxial (K=2)
① ② ③ ④ ⑤
④, Linear-chain ⑤, Other states
ρp ρn ρn-ρp
