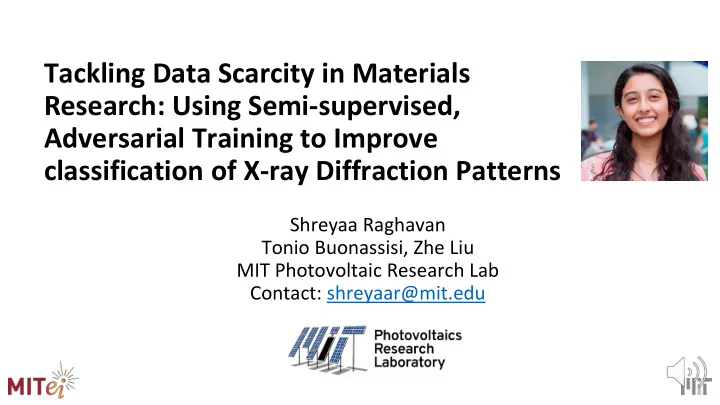

Tackling Data Scarcity in Materials Research: Using Semi-supervised, Adversarial Training to Improve classification of X-ray Diffraction Patterns Shreyaa Raghavan Tonio Buonassisi, Zhe Liu MIT Photovoltaic Research Lab Contact:


  1. Tackling Data Scarcity in Materials Research: Using Semi-supervised, Adversarial Training to Improve classification of X-ray Diffraction Patterns Shreyaa Raghavan Tonio Buonassisi, Zhe Liu MIT Photovoltaic Research Lab Contact: shreyaar@mit.edu

  2. X-ray Diffraction (XRD) Pattern Classification XRD Pattern Example ▪ A typical machine learning problem ▪ Classification of crystals by space groups and dimensionality ▪ Currently, uses experimental data & computer- generated, synthetic data during training Figure 1. Examples of perovskite XRD patterns with different dimensionalities 1 (i.e. 0D, 2D, 3D) 1 Sun, S. et al. , Joule 3 , 1437 – 1451 (2019).

  3. Challenges with Current Classifier (autoXRD) (1) Data Scarcity regarding generating labeled experimental data 1 (2) Simulated data in the training can be detrimental to the classifier Goal : Mimic experimental data and improve efficacy of non- experimental data (with generative adversarial network – GAN 2 ) 1 Oviedo, F., Ren, Z., Sun, S. et al. npj Comput Mater 5, 60 (2019). 2 A. Shrivastava, T. Pfister, O. Tuzel, J. Susskind, W. Wang, and R. Webb. Learning from simulated and unsupervised images through adversarial training. arXiv:1612.07828, 2016.

  4. Proposed Method 1: Using Generative Adversarial Training Main Advantage: Unlabeled Experimental Training with Unlabeled XRD example Experimental Data Discriminator Model Model Simulated Refiner Refined XRD Update XRD input Model Example Binary Classification Real vs Fake Model Update

  5. Proposed Method 2: Gaussian Filter Effect of Refiner Effect of Gaussian Filter on VS Model simulated XRD data (i.e. widening peaks)

  6. Results Table 1 . Accuracies after 5-Fold Cross Validation of Space Group Classification using Proposed Methods and no Experimental Data Augmented Data 500 Data 1000 Data 2000 Data 4000 Data Accuracy (%) Accuracy (%) Accuracy (%) Accuracy (%) Simulated 12.7 23.9 26.2 34.6 Refiner Model A 39.8 51.2 53.2 62.9 (20 to 1) Refiner Model B 11.0 17.3 44.2 49.5 (30 to 1) Gaussian Filter 11.8 21.6 38.2 49.8

  7. Future Work ▪ Accelerating characterization tasks with machine/deep learning ▪ Generalizable to tackle data scarcity in materials research and other fields (where there’s lack of large, labeled dataset)

  8. References [1] Christopher Bowles et al. Gan augmentation: Augmenting training data using generative adversarial networks. ArXiv, abs/1810.10863, 2018. [2] Oviedo, F., Ren, Z., Sun, S. et al. Fast and interpretable classification of small X-ray diffraction datasets using data augmentation and deep neural networks. npj Comput Mater 5, 60 (2019). https://doi.org/10.1038/s41524-019-0196-x [3] A. Shrivastava, T. Pfister, O. Tuzel, J. Susskind, W. Wang, and R. Webb. Learning from simulated and unsupervised images through adversarial training. arXiv preprint arXiv:1612.07828, 2016. [4] Sun, S. et al. Accelerated development of perovskite-inspired materials via high-throughput synthesis and machine-learning diagnosis. Joule 3 , 1437 – 1451 (2019). [5] https://github.com/mjdietzx/SimGAN

  9. Thank You! ☺ Contact: shreyaar@mit.edu
