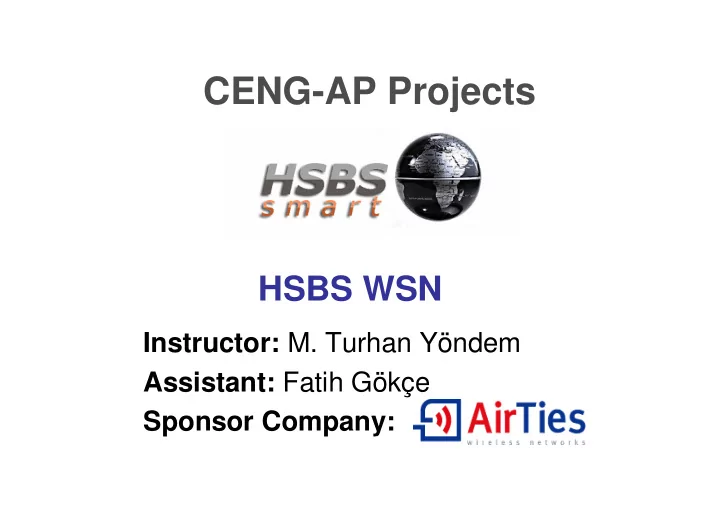

  1. CENG-AP Projects HSBS WSN Instructor: M. Turhan Yöndem Assistant: Fatih Gökçe Sponsor Company:

  2. Team Members � H anifi Öztürk � S erkan Ça ğ lar � B urak Cansızo ğ lu � S erdar Koçbey

  3. What is CENG-AP Project? • It consists development of applications using AirTies AP-400 - AirTies AP-400: - 54 Mbps - Wireless Access Point - Repeater - Bridge - 4-Port Switch • It has two subprojects: 1. Network Monitoring Tool 2. Wireless Sensor Network

  4. What is HSBS WSN Project? • General View of HSBS WSN: ����� �������� ����� �������� ����� �������� ������ ������ �������� • Main Components of HSBS WSN: - HSBS Sentinel - Server - The Network

  5. HSBS Sentinel � is the name of our wireless sensor node � supports IEEE 802.11 protocol � measures humidity and temperature � is formed by assembling SP-07 over an AP-400 – SP-07: Sensor Integrated PIC Board – Main Components of SP-07: • SHT15: Temperature and Humidity Sensor • PIC 16F877: Microcontroller

  6. The Server � Collects data from nodes � Records the data � Provides a user interface to visualize and manipulate the data � Handles alert issues

  7. The Network � IEEE 802.11 protocol � Mesh Technology � WPA / WPA2 Encryption � General View

  8. System Overview � PIC Module � AP Module � Server Module � GUI Module

  9. GUI Module – Node Monitor

  10. GUI Module – Data Analyzer ������������ ������������� ������������ ������������� File View Help ������������ ������������� ���������������� Graph Type Start From End ������� !�� ��"#�"�##����$## �%"#�"�##����$## ������� ������ ��� ��� ������� ���&� ������� �������� Temperature ������� 25 ������� ������� 23 ������� 21 19 17 15 23:21 23:22 23:23 23:24 23:25 23:26 23:27 23:28 23:29 23:30 23:31 23:32 23:33 23:34 23:35 23:36 ������ Humidity 25 23 21 19 17 15 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

  11. GUI Module – Report Generator ������������ ������������� ������������ ������������� File View Help ������������ ������������� ���������������� ������� ������� Include File Type Save to: ������� !��9&� 4$6��*�0���&�����'�����7&6��0��8�&... ���1��2�3�-.��) ��0����� ������� ��0�������� �'�())�*��+,*���-.,&� File Name: :�*����������������0� ������� �'�())�*��/����-.��* ����5& ��,����*�0����-.�,� ������� '�A� ��8#%88�%8#�8#�8������.��) 4�00���& ������� ���5�� ������� Start From End ��"#�"�##����$## �%"#�"�##����$## �������� Print Preview ��������%"#�"�##��; ��$#%����5���$���0��8�&���<!���=�4��&���7��> :�*����������&$ ������� ������� ������� ������� ??? ����� �*�����&$ �������$�4��7�!������7��@�+�����*��� �������$�+'�4���2��=��7@�/�&��4�����

  12. What we have done so far: � Schematic of SP07 is completed � SP07 PCB is in progress � PIC Module is completed � AP Module is in progress � Server Module, GUI Module are 2 nd terms work.

  13. Thanks for Listening � Questions?
