Building 110 Faade Rehabilitation Prepared by John G. Waite Associates, Architects PLLC May 9, 2017 Building 110 Faade Rehabilitation Building 110 Constructed in 1870 as an Ordnance Storehouse Built in a Romanesque Revival Style

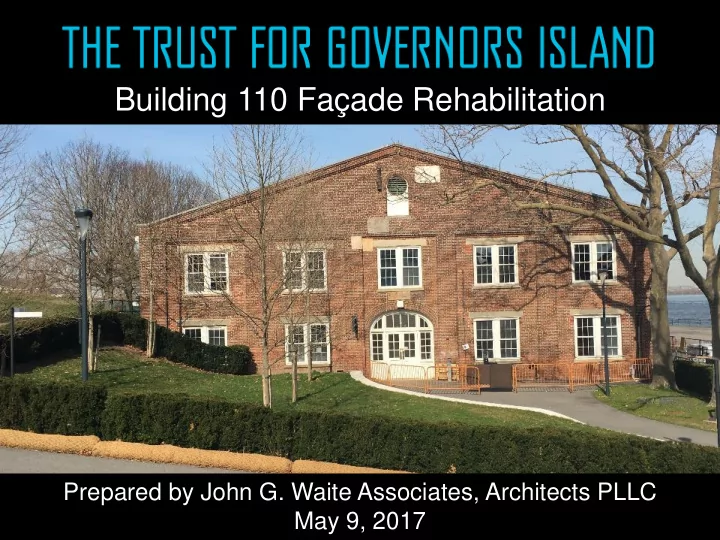

  1. Building 110 Façade Rehabilitation Prepared by John G. Waite Associates, Architects PLLC May 9, 2017

  2. Building 110 Façade Rehabilitation Building 110

  3. • Constructed in 1870 as an Ordnance Storehouse • Built in a Romanesque Revival Style with a shallow pitch gable roof • Masonry bearing wall construction with projecting brick pilasters • Stucco applied to exterior brick after 1904 • Used as an office from World War 1 through 1996

  4. Original Drawings

  5. 1877 – Currier and Ives illustration

  6. 1904 – earliest possible evidence of stucco application

  7. 1911 – Fort Jay barracks appear to have stucco also

  8. 1912 – adjacent buildings (dock, hospital, library) appear light-colored as well

  9. 1922

  10. 1938 – “chipping of building” by WPA work forces

  11. 1938 – “chipping of building” by WPA work forces

  12. 1980s

  13. New York Arsenal (1833- 1878) 110 Building 135 – Storehouse (c1835) Building 130 – Workshop (1843) 140 Building 104 – Storehouse(1850) Building 105 – Armory (1853-60) 135 107 130 Building 107 – Storehouse (1856-57) 105 Building 140 – Storehouse (1857-67) 104 Building 110 – Storehouse (1870)

  14. Existing Conditions West Elevation East Elevation

  15. Existing Conditions North Elevation

  16. Existing Conditions

  17. Existing Conditions

  18. Possible evidence of early stucco application

  19. Façade Rehabilitation – Survey and Analysis

  20. Rehabilitation – North Elevation

  21. Rehabilitation – South Elevation

  22. Rehabilitation – Timeline

  23. E

  24. Rehabilitation – Rendering

  25. E

  26. Rehabilitation – Rendering
