BISHOP AIRPORT AIRPORT LAYOUT PLAN UPDATE AND NARRATIVE REPORT - PowerPoint PPT Presentation

BISHOP AIRPORT AIRPORT LAYOUT PLAN UPDATE AND NARRATIVE REPORT AUGUST 2014 WADELL ENGINEERING CORPORATION Airport Planning - Engineering - Management Consultants The Team WADELL ENGINEERING CORPORATION Airport Planning - Engineering -

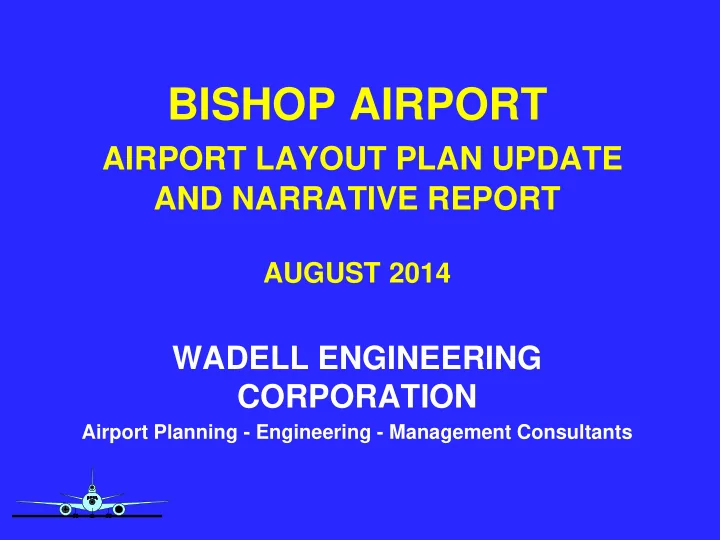

  1. BISHOP AIRPORT AIRPORT LAYOUT PLAN UPDATE AND NARRATIVE REPORT AUGUST 2014 WADELL ENGINEERING CORPORATION Airport Planning - Engineering - Management Consultants

  2. The Team WADELL ENGINEERING CORPORATION Airport Planning - Engineering - Management County of Inyo Public Works Clint Quilter cquilter@inyocounty.us

  3. Today’s Discussion  Purpose  Funding & Schedule  Scope of Services  Previous Study  Study Considerations  Economic Development Open House

  4. Study Purpose  Update the Inventory of Facilities  Establish New Forecasts of Demand  Determine New Facility Needs  Plan & Depict Facilities To Meet FAA Standards  Prepare 20-Year Capital Improvement Program  Provide an Updated Narrative Report

  5. Funding & Schedule  90% Federal Aviation Administration Grant  4.5% State Aeronautics Matching Grant  5.5% County Funds and Labor  Complete Studies By Summer 2015

  6. Scope of Services  Inventory of Facilities  New Aerial Photography & Mapping  Forecasts of Aviation Demand  Facility Requirements  Airport Plans – Airport Layout Plan – Airport Airspace Plan – Terminal Area Plan – Airport Property Map  Capital Improvement Program & Costs  Narrative Report

  7. Regional Airspace / Location

  8. Airport Photomap

  9. Airport Pavements

  10. Pavement Condition Index

  11. Runway 16-34 Design

  12. FAA Navaids  LOCALIZER DIRECTIONAL AIDE  VOR/DME

  13. VISUAL APPROACH SLOPE INDICATORS

  14. 1970’S Runways 12/30 & 16/34 Operational Narrowing from 150’ to 100’

  15. Old Airport Lighting Vault

  16. New Airport Vault / Standby Power

  17. Airport Lighting Design  3 Runways (MIRL)  All Taxiways (MITL/Reflectors)  Four REIL  Four PAPI-4  Two PAPI-2  Primary Windcone  Six Supplemental Windcones

  18. Terminal Area Facilities

  19. Previous Study

  20. Previous Study (2002) Recommendations  SHORT TERM – TAXIWAY RECONSTRUCTION – AIRCRAFT HANGARS – RUNWAY END IDENTIFICATION LIGHTS – ACCESS ROADS TO DEVELOPMENT SITES  INTERMEDIATE TERM – NEW APRONS AND TAXIWAYS – NEW ACCESS FROM WYE ROAD  LONG TERM – EXTEND RUNWAY 12- 30 TO 8900’ (500’ SE, 900’ NE) – RUNWAY SAFETY AREA IMPROVEMENTS – RUNWAY APPROACH LIGHTING – FIRE TRUCK AND BUILDING – NAVIGATIONAL AID EQUIPMENT

  21. 2002 Runway Recommendations  Extend 12-30 to 8900 Feet Long  Runway 12-30 C-II Aircraft (Lockheed C- 130) and ILS/GPS Precision Approach  Runways 7-25 & 16-34 B-II Aircraft (Convair 580) and GPS Non-Precision Approach, 16-34 Has Best Wind Coverage  All Runways Retain 100’ Operational Width (Physical Widths are 150’)

  22. 2002 Commercial Service Potential  Previously Served Until 1993  No Airline Service within 200 miles (2002)  AA Service to Start in Mammoth (2002)  Bishop Weather, Crosswinds Better  Airlines Want Subsidies to Serve  Frequency & Airfares = Sustainability

  23. 2002 Airside Recommendations

  24. Study Considerations  Existing Facilities Condition  Runway / Taxiway Development  Hangar Development  Aviation Industrial / Commercial  Fire Fighting Facilities  Military & Large Transient Aircraft  Weather Alternate / Commercial Use  FAA & State Funding

  25. Runway Considerations ? Restore 150’ Width 16 -34 & 12-30 – Failed Pavements & Non-standard Slopes – Failed Direct Burial Power Cables & Fixtures – Cracked Shoulders = FOD & Water Intrusion – Runway 16-34 has Best Wind Coverage & FAA Navaid (LDA) – Runway 12- 30 has Length and Published 300’ Minimum Height Approach – No 150’ Wide Runway Between Reno -Mojave – No Other Runways with FAA Navaids in Area

  26. Taxiway Considerations ?  Remove Exit “F” (Runway Incursions)  Rehabilitate Parallel Taxiway “H”  Construct Parallel Taxiway to R/W 25  Retain / Maintain Taxiways “D” & “E”  Install Edge Reflectors Along “D” & “E”  Correct Hold Lines & Install Hold Signs  Install Lighted Signs for All Taxiways

  27. Hangar Considerations ?  Construct New T-Hangars to Reduce Waiting List  Survey Corporate Hangar Market & Collect Deposits for Waiting List  Construct Small & Large Hangars  Construct Hangar Area Security Fencing with Card Gates

  28. Access & Development Considerations ?  Determine Implementation Methods & Funding  Construct New Wye Road Access & Security Fencing  Construct Phase 1 New Area

  29. Weather Alternate Considerations ?  Determine Public Interest  Determine Airline Interest  Renew Part 139 Certification – Rehabilitate Pavements & Shoulders – Rehabilitate Airfield Paint Markings – Rehabilitate Lighting & Signs – Improve Safety Areas – Install Security Fencing Survey Corporate Hangar Market &

  30. Commercial Service Considerations ?  Evaluate Weather Alternate Success  Determine Public / Airline Interest  Enhance Part 139 Certification – Purchase Fire Equipment and Building – Hire & Train Fire & Management Staff – Develop Terminal Facilities – Implement Snow Removal (As Needed)

  31. Commercial Service Nearby  Mammoth Lakes – United Express & Alaska (35 miles by car)  Bishop – No Service - Ended 1993  Inyokern – United Express Ended in 2013 (130 miles by car)

  32. Airport Comparisons  Site Characteristics  Operational Characteristics

  33. Site Characteristics

  34. Operational Characteristics

  35. FAA & State Funding  FAA for General Aviation Airports - $150,000/yr Entitlement  FAA for Commercial Service Airports - $1Million/yr Entitlement  State Aeronautics for GA - $10,000/yr Grant & 4.5% of FAA match (for GA Facilities Only)

  36. Findings from the City of Bishop Economic Development Open House With respect to how the airport can contribute to Bishop’s economic growth, nearly all Open House attendees were very supportive of investing in expanding the airport for commercial flights. In addition to providing reliable air transport, they suggested that expansion of the airport would make Bishop a more attractive location for light industry or high tech companies because the ease of reaching other destinations would be greatly improved.

  37.  “Expand airport to become Eastern Sierra commercial hub.”  “Open it up to bring in tourists. Bring it up to FAA and TSA standards. Think long term.”  “Reliable regional air service is essential to maintaining our tourism market and diversifying our economy. Businesses need reliable air services to consider moving here.”  “Combined with the advent of Digital 395, air services for Bishop would have great economic potential for the future.”

  38. Which sectors should Bishop grow/strengthen?

  39. Please feel free to comment! We want to hear your voice. Submit a comment card at this venue to speak or send an email to: bishopairportplan@inyocounty.us

  40. THE END THE END
