An I nGaSb p-Channel FinFET Wenjie Lu, Jin K. Kim * , John F . Kelm * - PowerPoint PPT Presentation

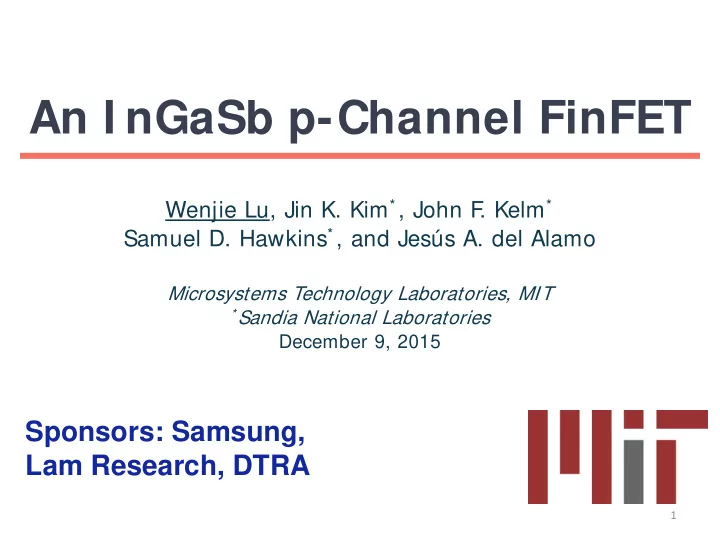

An I nGaSb p-Channel FinFET Wenjie Lu, Jin K. Kim * , John F . Kelm * Samuel D. Hawkins * , and Jess A. del Alamo Microsystems Technology Laboratories, MIT * Sandia National Laboratories December 9, 2015 Sponsors: Samsung, Lam Research, DTRA


  1. An I nGaSb p-Channel FinFET Wenjie Lu, Jin K. Kim * , John F . Kelm * Samuel D. Hawkins * , and Jesús A. del Alamo Microsystems Technology Laboratories, MIT * Sandia National Laboratories December 9, 2015 Sponsors: Samsung, Lam Research, DTRA 1

  2. Motivation From del Alamo, Nature , 2011 T = 300 K InGaSb as p-channel material for future III-V CMOS 2

  3. Motivation InGaSb XOI p-MOSFET InGaSb p-MOSFET Takei, Nano Lett. , 2012 Nainani, IEDM , 2010 InGaSb multi-gate MOSFET needs attention! 3

  4. Towards an I nGaSb FinFET Fin Etching InGaSb Ohmic FinFET MOS Contacts Sidewall 4

  5. I nGaAs Fin Etching Vardi, IEDM , 2015 Thathachary, VLSI , 2015 Rinus, IEDM , 2014 Excellent RIE enables InGaAs n-FinFETs 5

  6. I nGaSb Fin Etching • RIE by BCl 3 /N 2 chemistry 40 °C 120 °C 250 °C T ↑  etch rate ↑ , smooth surface, vertical profile 6

  7. I nGaSb Fin Etching • RIE by BCl 3 /N 2 chemistry • Smallest W f = 15 nm • Aspect ratio >10 • Fin angle > 85° • Dense fin patterns 7

  8. I nGaSb Fin Etching • RIE by BCl 3 /N 2 chemistry W f = 20 nm Smooth sidewall with no material selectivity 8

  9. MOS Sidewall • How to characterize electrical quality of fin sidewalls? Metal HSQ 1% HCl 30 s etch High-k oxide SOG p-GaSb Metal A simple process for sidewall CV characterization 9

  10. MOS Sidewall • C-V characteristics Conductance method D it ~ 5∙10 11 eV -1 ∙cm -2 close to valence band edge • Comparable to planar GaSb: D it =3 ∙10 11 eV -1 ∙cm -2 • (Nainani, TED , 2012) 10

  11. MOS Sidewall • Impact of fin width W f ↓  Sharper CV 11

  12. Ohmic Contacts • Ni/Pt/Au contacts Guo, EDL , 2015 Au-containing contacts with ultra-low ρ c 12

  13. Ohmic Contacts • Ni/Ti/Pt/Al contacts Si-compatible contacts with ultra-low ρ c 13

  14. I nGaSb FinFET Process • InGaSb channel compressively stressed (-2.3%) MBE by Sandia National Laboratory δ -doping (Be 10 12 cm -2 ) Starting heterostructure 14

  15. I nGaSb FinFET Process Ni ohmic contacts 15

  16. I nGaSb FinFET Process Gate + mesa 16

  17. I nGaSb FinFET Process p + cap recess (wet) 17

  18. I nGaSb FinFET Process p + cap recess (wet) 18

  19. I nGaSb FinFET Process • RIE by BCl 3 /N 2 chemistry • No sidewall treatment after etch Fin RIE (mesa) 19

  20. I nGaSb FinFET Process • 4 nm Al 2 O 3 (EOT = 1.8 nm) Gate ALD & metal 20

  21. I nGaSb FinFET Process • Double gate Via & pad deposition 21

  22. I nGaSb FinFETs Finished Devices W f = 30 – 100 nm, L g = 0.1 – 1 μ m, N f = 70 22

  23. Output & g m Characteristics • W f = 30 nm, L g = 100 nm, EOT = 1.8 nm • Normalized by 2N f H ch Suffer from poor turn-off 23

  24. Off Current L g = 600 nm I off is W f & orientation dependent  Off-state leakage current flows inside fin 24

  25. Low Temperature Characteristics • W f = 30 nm, L g = 300 nm • Leakage mitigated at low temperature • Leakage within the fin 25

  26. Fin Sidewall Passivation W f = 70 nm, L g = 250 nm 1% HCl 30s after fin RIE Improved turn-off 26

  27. Fin Sidewall Passivation • 1% HCl 30s after RIE After HCl Need better fin passivation technology 27

  28. g m Scaling W f ↑ or L g ↓  g m ↑ 28

  29. V T Scaling W f ↓  Δ V T <0, improved V T roll-off 29

  30. Orientation Analysis SiGe p-FinFET Hashemi, IEDM , 2014 • Uniaxial strain in fin • Piezoelectric effect 30

  31. Orientation Analysis InGaSb FinFET GaSb DG MOSFET (Sim.) Chang, IEDM , 2014 g m exhibits strong dependence on fin orientation 31

  32. Benchmark: I nGaSb MOSFET • First InGaSb FinFET • Peak g m approaches best InGaSb planar MOSFETs 32

  33. Conclusions • Developed new InGaSb FinFET technology Nanometer-scale fin RIE: W f ≥ 15 nm, AR > 10, • fin angle > 85° • Double-gate sidewall capacitor with low D it Si-compatible ohmic contacts: ρ c = 3.5∙10 -8 Ω∙ cm 2 • • Demonstrated first InGaSb p-channel FinFET • Performance comparable to best planar InGaSb MOSFETs Thank You! 33
