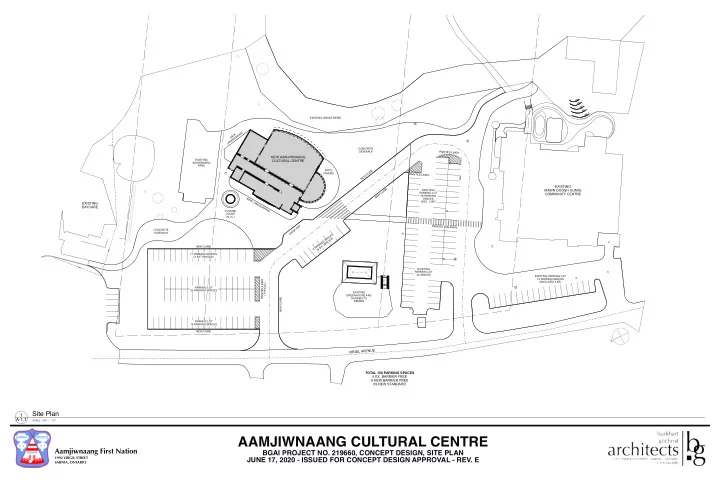

EXISTING GRASS BERM G N W I P E A N C S D N A L CONCRETE SIDEWALK PAINTED LINES NEW AAMJIWNAANG EXISTING CULTURAL CENTRE SKATEBOARD PARK PATIO NEW CURB PAVERS PAINTED LINES EXISTING NEW CURB EXISTING MAWN DOOSH GUMIG PARKING LOT COMMUNITY CENTRE 28 PARKING N SPACES E W (INCL. 2 BF) L EXISTING A N D S DAYCARE C A P I N G FUTURE LODGE (N.I.C.) DROP-OFF P A I N T E D W A L K W A Y CONCRETE SIDEWALK 9 PARKING SPACES (4 B.F. SPACES) NEW CURB 17 PARKING SPACES (4 B.F. SPACES) EXISTING PARKING LOT 34 SPACES EXISTING PARKING LOT 19 PARKING SPACES PAINTED LINES (INCLUDES 2 BF) (TYPICAL) PARKING LOT 32 PARKING SPACES EXISTING GREENHOUSE AND GARDEN TO NEW CURB REMAIN PARKING LOT 19 PARKING SPACES NEW CURB N VIRGIL AVENUE TOTAL 158 PARKING SPACES 4 EX. BARRIER FREE 8 NEW BARRIER FREE 69 NEW STANDARD Site Plan 1 A-1.1 SCALE: 1/32" = 1'-0" AAMJIWNAANG CULTURAL CENTRE Aamjiwnaang First Nation BGAI PROJECT NO. 219660, CONCEPT DESIGN, SITE PLAN 1992 VIRGIL STREET JUNE 17, 2020 - ISSUED FOR CONCEPT DESIGN APPROVAL - REV. E SARNIA, ONTARIO

ACC A: 14,164.22 sq ft STORAGE A: 915.94 sq ft KITCHEN A: 341.17 sq ft MULTIPURPOSE VEST A: 6,054.64 sq ft M/E A: 243.7 sq ft WOMENS A: 680.65 sq ft UTR LOUNGE/GALLERY A: 1,038.69 sq ft JAN A: 107.04 sq ft REC FUTURE LODGE MENS A: 349.73 sq ft OFF VEST Main Level 1 A-1.2 SCALE: 1/16" = 1'-0" AAMJIWNAANG CULTURAL CENTRE Aamjiwnaang First Nation BGAI PROJECT NO. 219660, CONCEPT DESIGN, FLOOR PLAN 1992 VIRGIL STREET JUNE 17, 2020 - ISSUED FOR CONCEPT DESIGN APPROVAL - REV. E SARNIA, ONTARIO

FRONT ENTRANCE ELEVATION VIEW FROM POW WOW GROUNDS WITH RETAINING WALLS ALONG RIDGE VIEW OF MULTIPURPOSE ROOM VIEW FROM PATHWAY VIEW FROM PATH FROM MAWN DOOSH GUMIG COMMUNITY CENTRE AAMJIWNAANG CULTURAL CENTRE Aamjiwnaang First Nation BGAI PROJECT NO. 219660, CONCEPT DESIGN, PERSPECTIVE RENDERINGS 1992 VIRGIL STREET JUNE 17, 2020 - ISSUED FOR CONCEPT DESIGN APPROVAL - REV. E SARNIA, ONTARIO
