A Characterization of State Spill in Modern OSes Kevin Boos Emilio - PowerPoint PPT Presentation

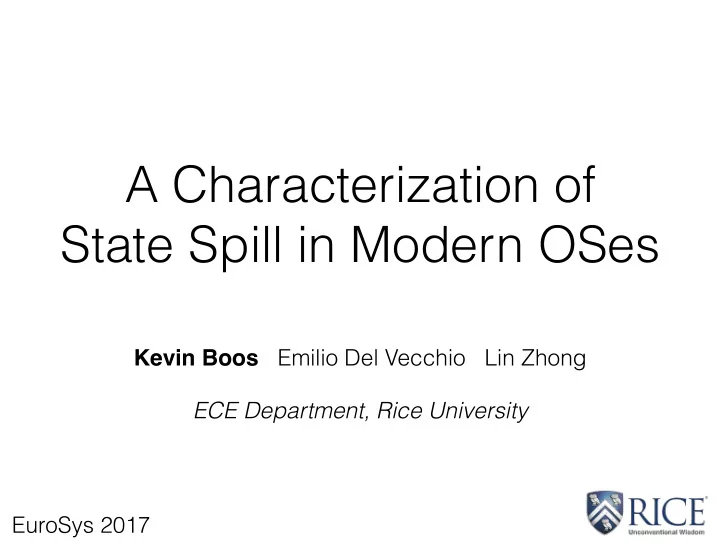

A Characterization of State Spill in Modern OSes Kevin Boos Emilio Del Vecchio Lin Zhong ECE Department, Rice University EuroSys 2017

How do we deal
 with complexity? 2

Modularization complex
 1 2 3 4 system 3

Modularization 1 2 3 4 4

Reducing complexity should make things easier… • Process migration • Fault isolation &
 1 2 fault tolerance • Live update, hot- swapping, software 3 4 virtualization • Maintainability • Security and more 5

Modularization is not enough! interactions have
 complex effects! 1 2 Effects of interactions: • Propagation of data
 3 4 and control • Changes to the state
 of each entity state spill 6


 State spill in a nutshell a new term to describe the phenomenon when: A software entity’s state undergoes lasting change as a result of an interaction with another entity. 7

Outline of contributions 1. Define and identify state spill as a root cause of challenging problems in computing 2. Classify state spill examples collected from real OSes 3. Automate state spill detection with S TATE S PY 4. Results from Android system services 8

Definition of State Spill 9

State spill definition by example Source (application) Destination (system service) public void main() { public class SystemService { int id = ; static int sCount; Before byte cfg = ; byte mConfig; fn cb = handleCb; List<Callback> mCallbacks; (empty) int unrelated; service.addCallback( id, cfg, cb); public void addCallback( int id, byte cfg, During temporary log(“added cb!”); Callback cb) { } int b = id; Log.print("id=" + b); mConfig = cfg; void handleCb() { mCallbacks.add(cb); // do something sCount++; After } } } 10

S TATE S PY : Automated State Spill Detection 11

S TATE S PY : runtime + static analysis • Goal: help developers understand how
 state spill occurs in their entities Running Source software files entity Resolution requests State spill Static Runtime Modification-reachable results analysis analysis whitelist Runtime type resolutions 12

State Spill in Android Services 13

Evaluating Android system services Binder IPC Application Proxy Stub Service transactions • StateSpy monitors service stub boundary ( onTransact ) • monkey induces real apps to invoke various transactions Found state spill in 94% of service stubs analyzed. 14

Secondary state spill Entity Entity Entity S D 1 D 2 User Applications UiModeManagerService VibratorService KeyguardService AlarmManagerService UsbService AudioService InputManagerService ActivityManagerService HdmiControlService NotificationManagerService DisplayManagerService PowerManagerService UserManagerService StatusBarManagerService WindowManagerService SensorService PackageManagerService Hinders fault tolerance, hot-swapping, maintainability 15

Case study: Flux [EuroSys’15] App App App Sensor Location Input Sensor Location Input Alarm Notification Clipboard Alarm Notification Clipboard • Android app migration via record & replay • Manually handles residual dependencies with decorator methods for each service transaction • Significant effort to overcome state spill Alex Van’t Hof, et al., “Flux: multi-surface computing in Android”, EuroSys 2015. 16

Case study: Flux [EuroSys’15] App App App ? ? Sensor Location Input Sensor Location Input Alarm Notification Clipboard Alarm Notification Clipboard • Android app migration via record & replay • Manually handles residual dependencies with decorator methods for each service transaction • Significant effort to overcome state spill Alex Van’t Hof, et al., “Flux: multi-surface computing in Android”, EuroSys 2015. 17

Case study: Flux [EuroSys’15] App App App Sensor Location Input Sensor Location Input Alarm Notification Clipboard Alarm Notification Clipboard • Android app migration via record & replay • Manually handles residual dependencies with decorator methods for each service transaction • Significant effort to overcome state spill 18

Comparison with Flux Not
 decorated Flux
 77% 23% • Using Flux apps, we reproduced 113 unique transactions for analysis with S TATE S PY 19

High correlation with state spill Causes
 Not
 State Spill decorated Flux
 77% 23% 92% • State spill identifies problematic service transactions • and which states need special handling 20

S TATE S PY catches what’s missing missed Not
 21% decorated Flux
 77% 23% Safely ignored 79% • Found state spill in 18 (21%) undecorated methods, each is potentially dangerous • Easy detection demonstrates S TATE S PY ’s utility 21

Parting Thoughts 22

Designs to avoid state spill • Client-provided resources • Stateless communication RESTful principle • Separation of multiplexing from indirection • Hardening of entity state • Modularity without interdependence 23

Related work • Coupling [1] /modularity [2] as a necessary condition • Info-flow analysis [3,4] • Designs that partially reduce state spill • Compartmentalizing important states Barrelfish/DC [5] , Microreboot [6] , CuriOS [7] • • RESTful architectures (web) [11,12] 24

Conclusion • State spill is an underlying problem that hinders many computing goals • Prevalent and deeply ingrained in many OSes • Reducing state spill will lead to better designs • More so than minimizing coupling, etc. • Next steps: redesign OS to minimize state spill S TATE S PY & more: http://download.recg.org 25
