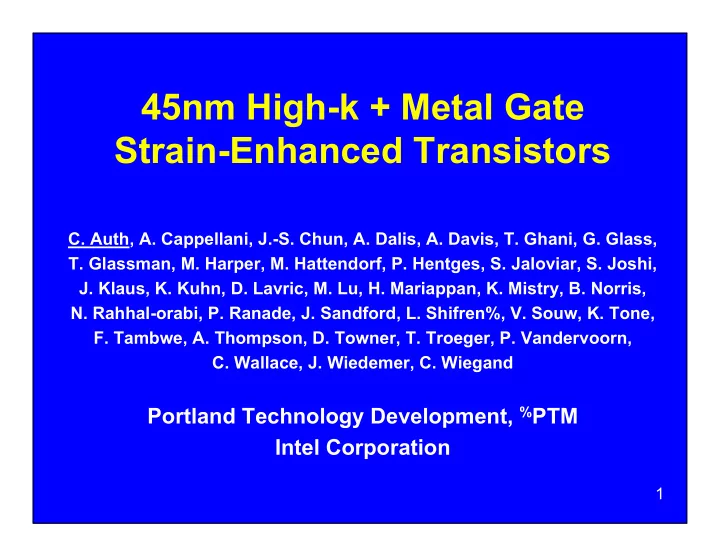

45nm High-k + Metal Gate Strain-Enhanced Transistors

• C. Auth, A. Cappellani, J.-S. Chun, A. Dalis, A. Davis, T. Ghani, G. Glass,
• T. Glassman, M. Harper, M. Hattendorf, P. Hentges, S. Jaloviar, S. Joshi,
• J. Klaus, K. Kuhn, D. Lavric, M. Lu, H. Mariappan, K. Mistry, B. Norris,
• N. Rahhal-orabi, P. Ranade, J. Sandford, L. Shifren%, V. Souw, K. Tone,
• F. Tambwe, A. Thompson, D. Towner, T. Troeger, P. Vandervoorn,
• C. Wallace, J. Wiedemer, C. Wiegand

Portland Technology Development, %PTM Intel Corporation

2

Outline

• Introduction
• Metal-Gate + Strain Integration
• Transistor/Circuit Results
• Manufacturing
• Conclusions

3

Introduction

• SiON scaling running out of atoms
• Poly depletion limits inversion TOX scaling

– > Need High-K + Metal Gate

Silicon Poly

SiON

1 10

350nm 250nm 180nm 130nm 90nm 65nm

Electrical (Inv) Tox (nm) 0.01 0.1 1 10 100 1000 Gate Leakage (Rel.)

4

High-k + Metal Gate Benefits

• High-k gate dielectric

– Reduced gate leakage – TOX scaling

• Metal gates

– Eliminate polysilicon depletion – Resolves VT pinning and poor mobility for high-k gate dielectrics

5

Metal Gate Flow Options

Gate-First

Dep Hi-k & Met 1 Patt Met 1 & Dep Met 2 Patt Met 2 & Etch Gates S/D formation & Contacts Dep & Patt Hik+Gate S/D formation & ILD dep/polish Rem Gate & Patt Met 1 Dep Met 2+Fill & Polish

Hik-First, Gate-Last

6

Metal Gate-Last Benefits

• High Thermal budget available for Midsection

– Better Activation of S/D Implants

• Low thermal budget for Metal Gate

– Large range of Gate Materials available

• Significant enhancement of strain

– Both NMOS and PMOS benefits

• Low cost

– Total wafer cost adder - 4%

7

Outline

• Introduction
• Metal-Gate + Strain Integration
• Transistor/Circuit Results
• Manufacturing
• Conclusions

8

Methods of NMOS Strain at 65nm

• Tensile Nitride Cap
• Stress Memorization

→Gate + S/D

9

Methods of NMOS Strain at 65nm

• Tensile Nitride Cap
• Stress Memorization

→Gate + S/D

10

NMOS strain: Tensile Cap Layer

• Running out of space for Nitride Cap Layer

– Pitch degradation increases with pinchoff of film – Requires higher stress & thinner films

5 7 9 11 13 100 150 200 250 300 Pitch (nm) Idsat % gain

11

Tensile Contact Stress

• Use Tensile trench contacts to

stress channel

Trench Contacts Poly

12

Tensile Contact Stress

• Use of Tensile trench contacts provide 10% Idsat

improvement

• Matched Contact Resistance

+10%

1 10 100 1000 0.70 0.90 1.10 1.30 Idsat (mA/m) Ioff (nA/m) Tensile Fill Control VDD = 1.0V

13

NMOS strain: Metal Gate Stress

• Gate Stress Memorization incompatible with Gate-

Last

• Compressive Gate fill material induces strain

directly*

– *C. Kang, et al, IEDM 2006

65nm 45nm Compressive Gate Fill

14

Compressive Gate Stress

• Compressive Gate Fill shows 5% Idsat improvement
• Additive with Tensile Trench contacts

+5%

1 10 100 1000 0.9 1.1 1.3 1.5 Idsat (mA/m) Ioff (nA/m) Compressive Gate Control VDD = 1.0V

15

Mitigation of NMOS stress on PMOS

• Tensile Contact fill mitigated by raised SiGe S/D
• Metal Gate Strain compensated by PMOS WFM

NMOS PMOS Different gate stack Raised S/D

16

Gate Fill scalability for Gate-Last

• Capability to <30nm demonstrated

0.5 1.0 1.5 2.0 20 30 40 50 60 Gate Length (nm) Normalized sheet rho P-type gate N-type gate 30nm

17

PMOS strain: Pitch dependence

• Embedded SiGe S/D mobility enhancement

strongly dependent on pitch

0.8 0.9 1.0 1.1 1.2 1.3 1.4 65nm 45nm Normalized Idsat Pitch scaling Technology node

18

Embedded SiGe S/D

• Continued Scaling for SiGe S/D
• 1. Ge concentration inc. to 30%
• 2. Gate → S/D distance reduced

65nm 45nm

15 25 35 90nm 65nm 45nm Technology node Ge Conc. (%) 10 20 30 40 Gate-to-SiGe S/D (nm)

19

PMOS Strain: Gate-Last Flow

• Use of Gate-Last Flow enhances Embedded SiGe S/D*

– *J. Wang, et al, VLSI 2007

• Removal of poly gate increases channel stress by 50%

Before gate removal After gate removal

20

PMOS Strain Components

• Three methods used enhance PMOS performance
• 1. Increase Ge Concentration in Embedded SiGe S/D
• 2. Move Embedded SiGe S/D closer to Gate
• 3. Remove dummy poly gate with Metal Gate-Last flow

Increase %Ge↑ Move SiGe Remove Gate

21

PMOS strain: Pitch dependence

• Stress degraded due to Pitch Scaling

0.8 0.9 1.0 1.1 1.2 1.3 1.4 65nm 45nm Normalized Idsat

Pitch scaling

Technology node

22

PMOS strain: Pitch dependence

• Proximity scaling recovers majority of pitch

degradation

0.8 0.9 1.0 1.1 1.2 1.3 1.4 65nm 45nm Normalized Idsat

Proximity Reduction

Technology node

23

PMOS strain: Pitch dependence

• %Ge provides strain benefit

0.8 0.9 1.0 1.1 1.2 1.3 1.4 65nm 45nm Normalized Idsat

Increase to 30% Ge

Technology node

24

PMOS strain: Pitch dependence

• Gate-Last provides significant increase in

performance

0.8 0.9 1.0 1.1 1.2 1.3 1.4 65nm 45nm Normalized Idsat

Removal of Gate

Technology node

25

Metal Gate Stress (MGS) + S/D Stress Memorization Gate Stress Memorization + S/D Stress Memorization Tensile Trench Contacts Tensile Nitride Cap NMOS NMOS Replacement Gate Enhancement Embedded SiGe S/D (higher %Ge + reduced S/D) Embedded SiGe S/D PMOS PMOS

45nm Method 65nm Method

Strain Comparison

26

Outline

• Introduction
• Metal-Gate + Strain Integration
• Transistor/Circuit Results
• Manufacturing
• Conclusions

27

Gate Leakage

• Gate leakage is reduced >25X for NMOS

and 1000X for PMOS

0.00001 0.0001 0.001 0.01 0.1 1 10 100

• 1.2
• 1
• 0.8
• 0.6 -0.4 -0.2

0.2 0.4 0.6 0.8 1 1.2

VGS (V) Normalized Gate Leakage

SiON/Poly 65nm HiK+MG 45nm

NMOS PMOS

HiK+MG 45nm SiON/Poly 65nm

65nm: Bai, 2004 IEDM

28

Excellent short channel effects

• Subthreshold slope - 100mV/decade
• DIBL - 140mV/V NMOS & 200mV/V PMOS

0.0001 0.001 0.01 0.1 1 10 100 1000 10000

• 1.2 -0.9 -0.6 -0.3

0.3 0.6 0.9 1.2 Vgs (V) Id (A/m) |Vds|=1.0V |Vds|=0.05V

PMOS NMOS

29

NMOS IDSAT vs. IOFF

1.36 mA/m at IOFF = 100 nA/m & 1.0V 12% better than 65 nm

160 nm

• Best drives for 45nm or 32nm technology

1 10 100 1000 0.8 1.0 1.2 1.4 1.6 Idsatn (mA/m) Ioffn (nA/m) 65nm [Tyagi, 2005 IEDM] VDD = 1.0V

12%

30

NMOS IDlin vs. IOFF

0.192 mA/m at IOFF = 100 nA/m 8% better than 65 nm

160 nm 1 10 100 1000 0.13 0.15 0.17 0.19 0.21 Idlin (mA/m) Ioff (nA/m) VDS = 0.05V 65nm [Tyagi, 2005 IEDM]

8%

31

PMOS IDSAT vs. IOFF

1.07 mA/m at IOFF = 100 nA/m & 1.0V 51% better than 65nm

160 nm

• Best drives for 45nm or 32nm technology

1 10 100 1000 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 Idsatp (mA/m) Ioffp (nA/m) 65nm [Tyagi, 2005 IEDM] VDD = 1.0V

51%

32

PMOS IDlin vs. IOFF

0.178 mA/m at IOFF = 100 nA/m 72% better than 65nm! 7% from NMOS

160 nm 1 10 100 1000 0.08 0.11 0.14 0.17 0.2 Idlin (mA/m) Ioff (nA/m) VDS = 0.05V 65nm [Tyagi, 2005 IEDM]

72%

33

SOC Application

NMOS: 1.04 mA/m at IOFF = 1 nA/m & 1.1V PMOS: 0.88 mA/m at IOFF = 1 nA/m & 1.1V

• LSTP benchmark (1nA & 1.1V)

0.01 0.1 1 10 100 0.4 0.6 0.8 1.0 1.2 1.4

Idsatn (mA/m) Ioffn (nA/m)

65nm @ 1.2V [Post, 2006 IEDM]

0.01 0.1 1 10 100 0.2 0.4 0.6 0.8 1.0 1.2

Idsatp (mA/m) Ioffp (nA/m)

65nm @ 1.2V [Post, 2006 IEDM]

34

Metal Gate Last flow enables 23% reduction in RO delay at the same leakage

Ring Oscillator Speed

3 4 5 6 7 8 9 10 100 1000 10000 IOFFN + IOFFP (nA/um) D E LA Y P E R S TA GE (pS ) 65nm @ 1.2V 45nm @1.1V

FO=2 +2 Cjunction

• 8

Cgate/Cov Benefit (%) Component +23 Total

• 7

Voltage Scaling +2 NMOS Idlin +3 NMOS Idsat +18 PMOS Idlin +13 PMOS Idsat +2 Cjunction

• 8

Cgate/Cov Benefit (%) Component +23 Total

• 7

Voltage Scaling +2 NMOS Idlin +3 NMOS Idsat +18 PMOS Idlin +13 PMOS Idsat

35

Power: SRAM VCCmin

• Low active VCCmin important for low power

applications

• 3Mb SRAM

– 0.346m2 cell median active VCCmin of 0.70V – 0.382m2 cell median active VCCmin of 0.625V

36

Outline

• Introduction
• Metal-Gate + Strain Integration
• Transistor/Circuit Results
• Manufacturing
• Conclusions

37

193nm Dry lithography - Poly

• Critical Layers patterned with 193nm Dry lithography

– Lower cost & Mature toolset – Transistor Formation Mask Count Neutral with 65nm

• Double Patterning used at Poly

– Array of Poly lines are patterned – Discrete allowed pitches – Poly lines are Cut

Post 1st layer Poly Post 2nd layer Cuts

65nm SRAM 45nm SRAM

38

Multiple Microprocessors

Single Core Dual Core Quad Core Six Core

39

Defect Reduction Trend

• Record yields demonstrated <2 years after 65 nm

– Fastest Ramp to high yield ever at Intel Defect Density (log scale) 2yrs

2001 2002 2003 2004 2005 2006 2007 2008 2009

90 nm 65 nm 45 nm

40

Conclusions

• High-k + Metal Gate transistors have been integrated

with Novel Strain techniques

• Gate-Last flow provides significant strain

enhancements both on NMOS and PMOS

– Key driver for process flow decision – Achieve record drive currents at tight gate pitch

• 193nm Dry lithography can be extended to the 45nm

technology node

• The technology is already in high volume

manufacturing

– High yields demonstrated on multiple microprocessors

41

Acknowledgements

• The authors gratefully acknowledge the

many people in the following

• rganizations at Intel who contributed

to this work:

– Portland Technology Development – Quality and Reliability Engineering – Process & Technology Modeling – Assembly & Test Technology Development
