1 Color Palette using LUT Parametric Bitmap (Integer, Float or - PowerPoint PPT Presentation

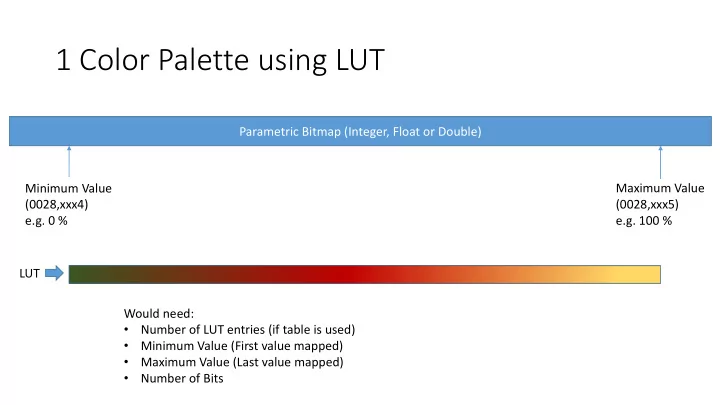

1 Color Palette using LUT Parametric Bitmap (Integer, Float or Double) Maximum Value Minimum Value (0028,xxx4) (0028,xxx5) e.g. 0 % e.g. 100 % LUT Would need: • Number of LUT entries (if table is used) • Minimum Value (First value mapped) • Maximum Value (Last value mapped) • Number of Bits

Segmented Palette Color Lookup Table • Example: R-Descriptor G- Descriptor B-Descriptor Segments Seg0 0,205,255 0,1,255 0,1,127 300 Seg1 1,51,105 1,127,0 1,127,0 Seg2 0,128,0 0,128,0 250 200 • Describes: 150 operator range R G B 100 constant 0 255 204 255 50 ramp 205 255 255 105 0 ramp 0 255 0 50 100 150 200 250 300 127 0 R G B ramp 0 127 127 0

Segmented Palette Color Lookup Table • Example: • With • First segment type R-Descriptor G- Descriptor B-Descriptor Seg0 0,205,255 0,1,255 0,1,127 • 0 is discreet Seg1 1,51,105 1,127,0 1,127,0 Seg2 0,128,0 0,128,0 • 1 is linear • 2 is indirect • Second is length • Describes: • Third is Value operator range R G B • Discreet assume error constant 0 255 204 255 • Linear it is end value ramp 205 255 255 105 ramp 0 255 127 0 ramp 0 127 127 0

1 Color Palette using LUT, Threshold defines visible segments Parametric Bitmap (Integer, Float or Double) Maximum Value Minimum Value (0028,xxx4) (0028,xxx5) e.g. 0 % e.g. 100 % Visible after applying Threshold LUT Threshold Threshold Threshold Threshold Note : Min1 Max1 Max2 Min2 Threshold is not part of parametric map but for presenting area’s of interest

Display and RWV pipeline Color mapping Blending Color Volume Displayed based on LUT with other Volumes result Display pipeline Bit Map, Stored Thresholding Values (RWV) RWV pipeline Calculations
