Well stimulation in the hydrocarbon industry Lessons for geothermal applications Peter Fokker Introduction Well Stimulation Economic justification Expected increased productivity / injectivity Treatment cost Key input: Reservoir

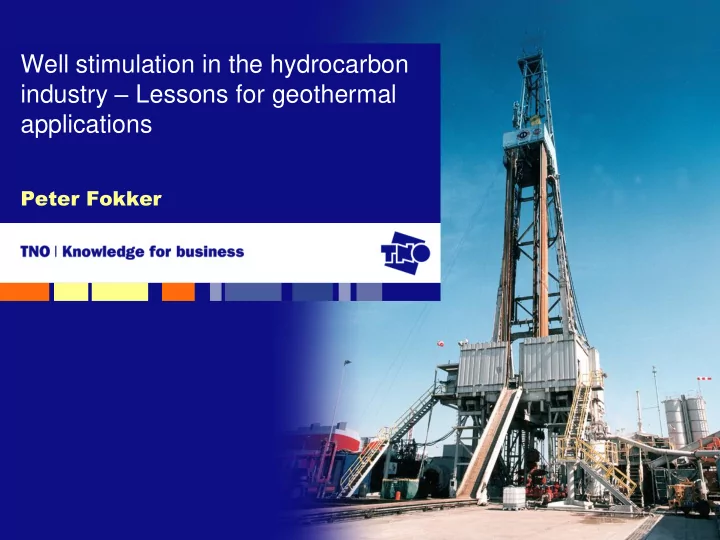

  1. Well stimulation in the hydrocarbon industry – Lessons for geothermal applications Peter Fokker

  2. Introduction Well Stimulation Economic justification Expected increased productivity / injectivity  Treatment cost Key input: Reservoir • Permeability • Natural fracture network • Soluble / non-soluble damage Low-permeability reservoirs: Hydraulic fracturing Soluble damage: Acidizing

  3. Introduction (cntn’d) • Matrix acidizing • Dissolve “skin” with acid (HCl, HF, EDTA) • Not working with all kinds of damage • Hydraulic fracturing • Increase inflow area / break through damage • Pump fluid with high pressure – break the formation • Pump “proppant” in open fracture • Keep frac open after shutin • High-permeability path from reservoir to well • Water fracturing • Connect well to considerable reservoir volume • Low-perm naturally fractured reservoir • Acid fracturing • Low-perm dolomite / limestone

  4. Hydraulic fracturing – Basic concepts s 1 • Stress: maximum stress vertical; minimum and medium stresses s 3 horizontal s 2 • Modes of fracturing Mode I: Opening Mode II: Sliding Mode III: Tearing • Hydraulic fracturing: Tensile (mode I) – Vertical fracture has least resistance

  5. Mohr-Coulomb failure criterion • Shear failure line (Mode II): t = c + s sin f • Tensile failure (Mode I): at horizontal axis • Horizontal axis: Net stress (total stress – pressure) t failure line B Tensile A f depressurize pressurize failure c cool s min s min s med s max C C s

  6. Example: Failure due to depressurization • Shear failure due to depressurization may happen in complex areas • Reactivation of fault Depletion Shear failure Depletion

  7. Critically stressed formation • Common in tectonically active regions • Difference between depleted hydrocarbon reservoirs and pressurized geothermal reservoirs: no help of earlier depletion • Use depleted hydrocarbon fields! failure line t depressurize pressurize cool s min s min s med s max s

  8. Hydraulic fracturing – Basics    Couple Conservation Laws and K f w , A I Constitutive Equations    s V L p   fracture 3 w • Conservation of Mass A E fracture • Conservation of Energy dV • Fracture propagation criterion   Q Q inj leakoff • Conservation of Momentum dt • Not relevant   Q v dA leakoff leakoff fracture • Incompressibility  p p • Stresses and strains k  frac res v • Hooke’s law  leakoff d penetrated • Stress intensity factor t • Flux laws   d v dt ' • Darcy penetrated leakoff 0 • Temperature • Coupled processes • Thermal fracturing

  9. Hydraulic fracturing – Visualization of the process • Processes in hydraulic fracturing; top view

  10. Hydraulic fracturing – Modeling 2D models • Geertsma – de Klerk / Khristianovic • Perkins – Kern – Nordgren • Radial model

  11. Hydraulic fracturing – Modeling (cntn’d) 3D models • Profile of the minimum in-situ stress • Elasticity profile • 3D pore pressure field / leak-off • Influence of pore pressure increase and temperature decrease on stress (poro-elasticity and thermo-elasticity) • Plugging of the fracture interior

  12. s 3 log k Fracture vs time depth injection

  13. Data Collection Static data Treatment data • Geology • Pressures • Regional stresses • Rates • Natural fractures • Passive seismic • Reserves • Tiltmeter mapping • Elasticity Post-treatment • Well test results Dynamic data • Well tests (permeability) • Productivity • Production history • Microfracs / minifracs Build a knowledge base! cf Drilling

  14. Design considerations • The goal of hydraulic fracturing is economic • Expected production • Analytic expressions (Prats) • Semi-analytic calculations • Reservoir simulation • Connection with Geology • Flow barriers • Permeability • Heterogeneity • Natural fractures  k w  f • Dimensionless fracture conductivity C  fD k L Optimum value: • High k: maximize width and proppant permeability • Low k: maximize length • Proppant placement

  15. Design considerations More input for design: } • In-situ stresses • Fracturing pressures Minifrac test • Leakoff behaviour • Effects of layering: • Containing capacity • Connection • Natural fractures • Poro-elasticity • Thermo-elasticity

  16. Monitoring Build up a knowledge base: • Treatment performance • Productivity monitoring Treatment performance monitoring

  17. Monitoring Build up a knowledge base: • Treatment performance • Productivity monitoring Treatment performance monitoring • Rates & Pressure traces (e.g. Tip-Screen-Out) • Use fracture simulator • Tiltmeters • Surface • Offset well • Microseismic mapping two downhole receivers

  18. Monitoring Build up a knowledge base: • Treatment performance • Productivity monitoring Productivity monitoring

  19. Monitoring Build up a knowledge base: • Treatment performance • Productivity monitoring Productivity monitoring • Well testing: Effective fracture size

  20. Monitoring Build up a knowledge base: • Treatment performance • Productivity monitoring Productivity monitoring • Well testing: Effective fracture size • Productivity evaluation e.g. Stimulated Volume Analysis

  21. Hydraulic fracturing – Barnett Shale • Very low permeability • Naturally fractured Similarities with Geothermal Systems • Goal: interconnected fracture network • Waterfracturing • Monitoring is key Translation problems • Continuous stimulation by injection • Effect of temperature • No depletion

  22. Acidizing • Appropriate for dissolution of • Real skin: origin damage or “skin” • Drilling mud invasion • What is the source of the skin? • Drilling fluid filtrate • Pseudoskin: limited entry, off- • Cementing damage • Perforation damage centred wells; perforation • Gravel packs density/phasing/penetration • Turbulence or non-laminar • Completion fluids, flow workovers • Real skin • Produced fines • Chemical reaction • Shear failure • Diffusion (mass transfer) • Failing stimulation • Dirty injection water limited • Surface reaction rate limited • Polymer flooding

  23. Acidizing: Types of skin • Emulsions • Silts & Clays Mixing water & oil – treat with Due to fines migration – treat with surfactant HF • Wettability change • Scales e.g. due to oil-based drilling mud – • Carbonate – treat with HCl • Sulfate – treat with EDTA treat with solvent (remove • Chloride scales – weak acid / hydrocarbons) and water-wetting surfactant HCl • Water block • Silica scales – treat with HF • Hydroxide scales – treat with Increase in water saturation near the well – treat with surfactant HCl O • Organic deposits O OH OH Paraffins, asphaltenes – treat with N solvent N HO O OH O

  24. Acidizing: Chemistry and Physics Chemical reaction Acidizing Physics • High activation energy: reaction • Surface-reaction-limited q  m k AC rate limited Reaction independent of velocity s j C interface = C bulk Acid concentration • Low activation energy barrier: DAC Pure acid Spent acid Reaction rate limited q d   by number of contacts (mass transfer). • Mixed kinetics q D Distance   d P • Mass-transfer-limited: Controlled   m 1 q k C s j by molecular diffusion  • Effect of temperature C     2 u C D C  t Wormholing

  25. Acid fracturing • Fracture the formation • Etch conducting channels • Coupling of • Flow behaviour • Leakoff • Viscosity changes • Reaction kinetics • Fracture mechanics • Temperature development

  26. “Lessons” • What is the goal? • What is the cure? • Contact area • Conventional fracturing • Bypass damage • Tip-screen-out fracturing • Connect to natural fractures • Water fracturing • Dissolve skin • Acidizing • Contact area in limestone / • Acid fracturing dolomite • What is the cost? • What is the benefit? • Treatment cost • Productivity • “Social cost” • Injectivity • Reserves • … • Reservoir!

  27. “Lessons” • Design • Monitoring • Rates • Reservoir Permeability • Pressures • Fracture conductivity • Temperature • Geology • Tiltmeter mapping • Rock mechanics • Microseismics • Seismic risks • Productivity • Minifrac tests • Design software Build up a knowledge base • Skin source • Skin type • Acid reaction kinetics • Risk of induced seismicity
