VMM Emulation of Intel Hardware Transactional Memory Maciej - PowerPoint PPT Presentation

VMM Emulation of Intel Hardware Transactional Memory Maciej Swiech, Kyle Hale, Peter Dinda Northwestern University V3VEE Project www.v3vee.org Hobbes Project 1 What will we talk about? We added the capability to run Intel HTM code on a

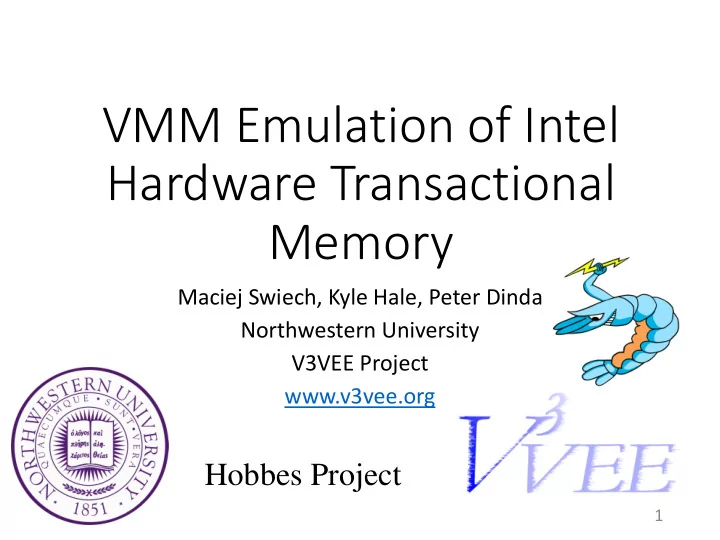

  1. VMM Emulation of Intel Hardware Transactional Memory Maciej Swiech, Kyle Hale, Peter Dinda Northwestern University V3VEE Project www.v3vee.org Hobbes Project 1

  2. What will we talk about? • We added the capability to run Intel HTM code on a virtual machine with minimal emulation • We developed a new page-flipping technique that allows capturing of reads and writes at single memory reference granularity • Software implementation of HTM emulation allows for arbitrary transaction size and code testing 2

  3. Outline • Motivation / Background • Intel HTM • Architecture • Palacios • Evaluation • Conclusions 3

  4. Outline • Motivation / Background • Intel HTM • Architecture • Palacios • Evaluation • Conclusions 4

  5. Motivation | transactional memory • Processors and applications become more parallel and distributed to cope with growing scale of data and research problems • Need for easier and more reliable methods for concurrent programming 5

  6. Background | transactional memory do_the_things() { write_shared_mem(); do_the_things(); read_shared_mem(); } 6

  7. Background | transactional memory Instead of: acquire_lock(); do_the_things() { write_shared_mem(); do_the_things(); read_shared_mem(); } release_lock(); 7

  8. Background | transactional memory Instead of: acquire_lock(); Have to track locks do_the_things(); Deadlock release_lock(); 8

  9. Background | transactional memory Can do: acquire_lock(); transaction { do_the_things(); do_the_things(); } release_lock(); 9

  10. Background | transactional memory Can do: acquire_lock(); transaction { Unsafe concurrent memory do_the_things(); do_the_things(); accesses are detected by TM } release_lock(); Easier to write safe code UNSAFE: Write after Read Read after Write Write after Write 10

  11. Background | transactional memory • Transactions are • Composable • Easier to reason about • More optimistic than locking • Assumption: no other code will touch memory in TX • HTM is faster than STM 11

  12. Motivation | virtualizing • Currently only Intel Haswell and IBM chipsets have implementations of Hardware Transactional Memory • Adding HTM capabilities to a virtual machine monitor would allow anyone to run transactional code • Allows for testing effects of new hardware implementations on code 12

  13. Outline • Motivation / Background • Intel HTM • Architecture • Palacios • Evaluation • Conclusions 13

  14. Intel HTM | background • In the Haswell generation of processors Intel introduced 2 Hardware Transactional Memory implementations • RTM – Restricted Transactional Memory • HLE – Hardware Lock Elision • 4 new instructions added to the ISA • XBEGIN • XABORT • XEND • XTEST 14

  15. Intel HTM | ISA • XBEGIN imm32 • Marks beginning of a transaction and abort label • XABORT imm32 • Forces transaction abort • XEND • Marks end of transaction • XTEST • Tests if processor is currently in a transaction state 15

  16. Intel HTM | example start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND success_label: <handle transaction commited> abort_label: <handle transaction aborted> 16

  17. Intel HTM | specification • Intel list many reasons a transaction “ may ” abort • Operations that modify RIP, GPRs, status flags • Operations on XMM, YMM, MXCSR registers • Various other instructions • Synchronous exception events • Asynchronous events such as interrupts • Self-modifying code • Many others… • RaW, WaR, WaW conflicts trigger an abort 17

  18. Outline • Motivation / Background • Intel HTM • Palacios • Architecture • Evaluation • Conclusions 18

  19. Architecture | design • Hypervisor extension • TM events captured and handled in VMM • Redo-log based design with garbage collection • Minimal instruction decoding 19

  20. Architecture | design • MIME • Generate stream of memory read/writes • RTME • Maintains the redo log • Tracks system state • Conflict Detection • Garbage Collection 20

  21. Architecture | RTME Restricted Transactional Memory Engine • Finite State Machine model • SYSTEM state • CORE state • TSX instructions generate #UD exceptions, driving state • Maintains read/write logs for each transaction 21

  22. Architecture | RTME Restricted Transactional Memory Engine • Keeps track of per-core and system transactional state • Places cores in single-stepping mode • If one core single-stepping, all cores • Launches garbage collection of log entries 22

  23. Architecture | example Restricted Transactional Memory Engine start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND success_label: <handle transaction commited> abort_label: <handle transaction aborted> 23

  24. Architecture | example Restricted Transactional Memory Engine System in TM mode start_label: Core in TM mode XBEGIN abort_label <body of transaction, may use XABORT> XEND success_label: <handle transaction commited> abort_label: <handle transaction aborted> 24

  25. Architecture | example Restricted Transactional Memory Engine start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND Monitor abort conditions success_label: (incl. XABORT) <handle transaction commited> Maintain redo-log abort_label: <handle transaction aborted> 25

  26. Architecture | example Restricted Transactional Memory Engine start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND CHECK WaW conflicts success_label: CHECK RaW conflicts CHECK WaR conflicts <handle transaction commited> abort_label: <handle transaction aborted> 26

  27. Architecture | example Restricted Transactional Memory Engine start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND success_label: COMMIT write log <handle transaction commited> abort_label: <handle transaction aborted> 27

  28. Architecture | example Restricted Transactional Memory Engine start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND Core out of TM mode success_label: Launch GC <handle transaction commited> abort_label: <handle transaction aborted> 28

  29. Architecture | example Restricted Transactional Memory Engine start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND Core out of TM mode success_label: Launch GC <handle transaction commited> if no cores in TM, abort_label: System out of TM mode <handle transaction aborted> 29

  30. Architecture | example Restricted Transactional Memory Engine start_label: XBEGIN abort_label <body of transaction, may use XABORT> XEND success_label: If any abort condition is triggered <handle transaction commited> Runs at given code point abort_label : <handle transaction aborted> All intermediate state is discarded 30

  31. Architecture | MIME Memory and Instruction Meta Engine • Leverages • Shadow Page Table page fault hooking • Instruction length decoding • Hypercall insertion  Memory access single-stepping • Staging page to keep writes hidden until commit 31

  32. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax cur: INSTRUCTION next: movq %rdx, %rbx ... target: ... 32

  33. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax cur: INSTRUCTION Decode instruction length… next: movq %rdx, %rbx ... target: ... 33

  34. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax cur: INSTRUCTION …replace next instr with hypercall next: VMCALL ... target: ... saved instr: movq %rdx, %rbx 34

  35. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax Flush the shadow page tables cur: INSTRUCTION next: VMCALL All guest mem access  page fault ... target: ... saved instr: movq %rdx, %rbx 35

  36. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax IFETCH  sPT fault cur: INSTRUCTION next: VMCALL Map the instruction page in ... target: ... saved instr: movq %rdx, %rbx 36

  37. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax Read: map page in as read-only cur: INSTRUCTION Write: map staging page in next: VMCALL ... target: Read: record address ... Write: record address and value saved instr: movq %rdx, %rbx 37

  38. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax Signals end of instruction cur: INSTRUCTION If staging page was used, copy data next: VMCALL into redo log ... target: ... saved instr: movq %rdx, %rbx 38

  39. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax cur: INSTRUCTION Restore overwritten instruction next: movq %rdx, rbx ... target: ... saved instr: NULL 39

  40. Architecture | example Memory and Instruction Meta Engine addq %rbx, %rax prev: INSTRUCTION MIME begins again cur: movq %rdx, rbx ... target: ... saved instr: NULL 40

  41. Architecture | example Memory and Instruction Meta Engine prev: addq %rbx, %rax If cur is a control flow inst, cur: INSTRUCTION overwrite target instead of next next: movq %rdx, rbx ... target: VMCALL ... saved instr: ... 41
