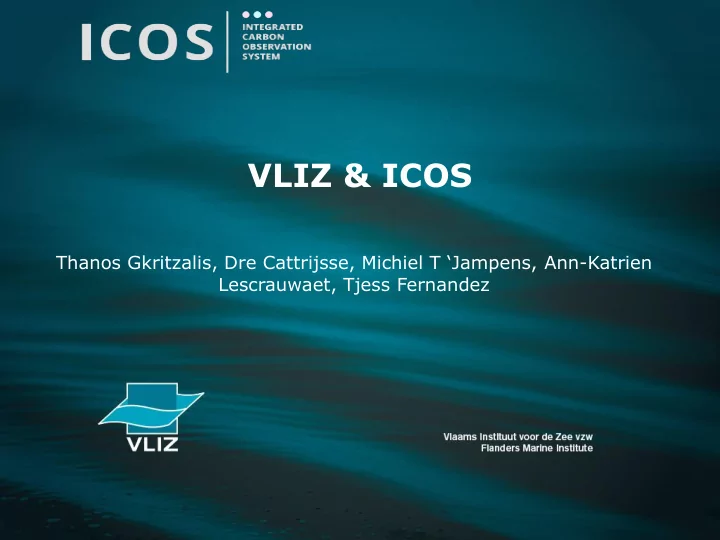

VLIZ & ICOS Thanos Gkritzalis, Dre Cattrijsse, Michiel T ‘Jampens, Ann-Katrien Lescrauwaet, Tjess Fernandez

OTC & marine MSA • OTC is Co-lead by Norway and UK (Uni. Of Bergen & Uni. Of Exeter) Main Admin., Data Management, Norway Web support, technical support UK Technical support, Industrial liaison, Technological advance & development • Countries present at recent MSA (19/01/2015): Belgium, Finland, France, Germany, Italy, Norway, Sweden, UK Chair: Mario Hoppema (AWI, Germany)

OTC Structure OTC Coordination Fixed stations & Coastal stations Ships Of Opportunity Repeat sections Technological development & Liaison with ship industry

OTC & marine MSA • OTC at operational capacity by 2016 • Focus on North Atlantic, Baltic and Med but marine ICOS will have a global reach

OTC & marine MSA Challenges  Decision to fund the OTC by UK and Norway will be announced in June  Marine MSA stations funding  Diverse environments (i.e. coastal, open ocean) and type of measurements (e.g. fixed stations, underway measurements )  different parameters, equipment, methodologies

ICOS OTC Variables presented in 2013 Type Parameter Frequency Accuracy Core pCO 2 (Air) 1 μ atm (!! 0.1 μ atm) Core pCO 2 (Sea) 1 μ atm Core Barometric pressure 0.5 mbar Continuous Core Salinity 0.05 PSU 0.05 0 C Core Temperature Core NO 3 +NO 2 , PO 4 , SiO 4 1 μ M Core Dissolved Inorganic 1 μ mol/kg Periodical Carbon Core Total Alkalinity 1 μ mol/kg Additional Atmospheric flask samples Additional Chl-a Desirable pH 0.001 units (???) Desirable Total Dissolved Gases Continuous Desirable Meteo As described in the 2013 Stakeholders meeting

ICOS OTC Variables for coastal stations as proposed by PML Apr. 2015 Frequency (†) Type Parameter Precission ± 4 μatm Core Seawater p CO 2 Every 30 min Core Atmospheric x CO 2 As above ± 0.5 ppmv Core Atmospheric P As above ± 0.5 mbar Core SST As above ± 0.01 o K Core Salinity As above ± 0.01 Core pH Periodic (1 per day) ± 0.01 ± 0.1 μM - , PO 4 -3 ; SiO 2 - ) Core Nutrients (NO 3 Periodic (1 per day) ± 3 μM Core Dissolved Inorganic Carbon Periodic (1 per day) ± 3 μM Core Total Alkalinity Periodic (1 per day) Additional Seawater CH 4 Periodic (1 per day) ± 0.1 nM Additional Atmospheric xCH 4 Periodic (1 per day) ± 0.01 ppmv Additional Meteorology (rainfall, Every 20 min WMO guidelines irradiance, wind- speed/direction Additional Chlorophyll α Every 20 min 0.05 mg m -3 1 μM Desirable Dissolved Organic Carbon Periodic (1 per day)

VLIZ in ICOS Start: 2013 Scope: Deliver the marine component of ICOS for the Belgian Focal Point (UoA) RV Simon Stevin National stations NZ Observatory SOO Chilean Coast NIOZ Open Ocean Mooring in International stations Tropical North Atlantic (12 o N, 49 o W) RV Mtafiti, Kenyan coast & ocean

VLIZ in ICOS (national) North Sea Research & Monitoring Network 52 B B lat 51 50 2 3 4 5 lon B North Sea Data & Monitoring station (Noord Zee Observatorium)

VLIZ in ICOS (national) RV SIMON STEVIN pCO 2 (sea & atm) • Nutrient Analysers • Fluorimeter Flow Cytometer SBE 25 CTD FRRf

VLIZ in ICOS (national) NZ Observatorium • Aanderaa Seaguard o O 2 , RCM, CTD, Chl-a • Systea WIZ (Nuts) • ProOceanus – proCO 2 atmosphere • Sensorlab SP101 pH sensor • Vemco VR2C receiver • C POD passive acoustic receiver

VLIZ in ICOS Lab facilities @ Marine Station Oostende • Calibration equipment for Temp & pH sensors • Total Alkalinity measurements • Preparation of Stds and reagents

VLIZ in ICOS (international) - The Netherlands NIOZ: Demo of pCO2 sensor deployment on open ocean buoy (≈ 12 o N/49 o W) 50 lat 0 -50 -100 0 100 200 long - Kenya - Chile KMFRI on going collaboration ICOS - Univ. of Valparaiso & FOCA project Use of the RV Mtafiti as VOS VOS from Valparaiso to Patagonia

Products 13−04−15 13−04−15 51.6 51.6 NO3 (μM) O2 (μ fC atm) 60 51.4 51.4 50 400 lat 40 lat 30 300 51.2 51.2 20 200 10 0 51.0 51.0 2.50 2.75 3.00 3.25 3.50 2.50 2.75 3.00 3.25 3.50 lon lon 51.6 2015−04−13 2015−04−13 51.6 Chl-a (μg/l) S S T (o C) 12 25 51.4 51.4 20 11 lat 15 lat 10 10 51.2 51.2 9 5 8 0 51.0 51.0 2.50 2.75 3.00 3.25 3.50 2.50 2.75 3.00 3.25 3.50 lon lon

Future  Maintenance of existing stations  Decide on overseas stations  Enhance the capability of existing stations • Measurements of other GHG (e.g. CH 4 ) • Inter-comparison of sensors and methodologies  Stronger collaboration with RBINS - OD Nature
