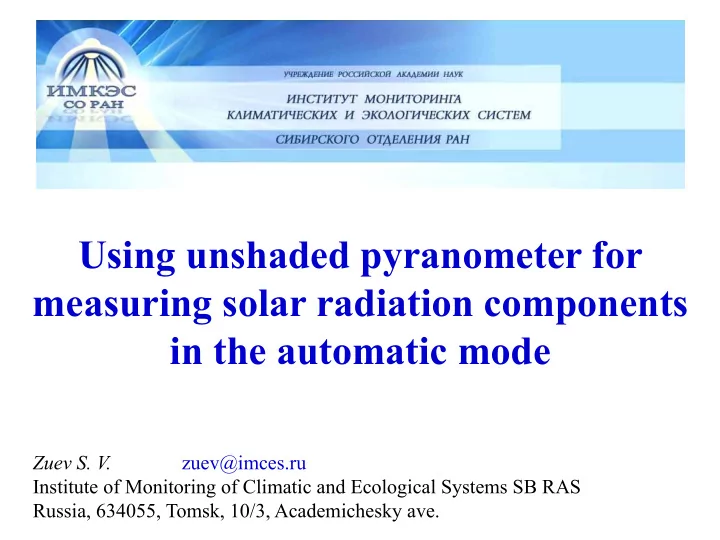

Using unshaded pyranometer for measuring solar radiation components in the automatic mode Zuev S. V. zuev@imces.ru Institute of Monitoring of Climatic and Ecological Systems SB RAS Russia, 634055, Tomsk, 10/3, Academichesky ave. Shotwave


  1. Using unshaded pyranometer for measuring solar radiation components in the automatic mode Zuev S. V. zuev@imces.ru Institute of Monitoring of Climatic and Ecological Systems SB RAS Russia, 634055, Tomsk, 10/3, Academichesky ave.

  2. Shotwave radiation balance S 0 =1367 W/m ² 99 % λ =0,17-4,0 µ m B k = Q k - R k Q k = S` + D

  3. Standard methods for measurement of total solar radiation Q Q k = D Q k = S` + D Q k = ( Q`-D)·K h ·K a + D

  4. Shortcomings of standard methods • 6 measurements once a day; • requires two devices; • requires human presence or sun tracker.

  5. Using unshaded pyranometer The practice of using unshaded pyranometer for measurement of total solar radiation Q k in automatic mode . Pyranometer CM-11 Kipp & Zonen. Measurement error ≤ 3%. Price 2400 €

  6. Using unshaded pyranometer Pyranometer М -115 М . Measurement error ≤ 15-20% depending on the altitude and azimuth of the sun

  7. Correction of the measured total solar radiation Q k = S` + D - for CM-11 Q k = S`·K h ·K a + D - for М -115 М Using clouds like shade disk for unshaded pyranometer ( Q k = D) for separation of total solar radiation Q on components S` and D

  8. Estimation of direct S` and diffuse D radiations

  9. Estimation of direct S` and diffuse D radiations

  10. Estimation of direct S` and diffuse D radiations

  11. Estimation of direct S` and diffuse D radiations

  12. Estimation of direct S` and diffuse D radiations Q k = S`·K h ·K a + D Q k = S` + D

  13. Duration of solar irradiation Time when S ≥ 140 W/m 2

  14. Estimation of solar irradiation duration using unshaded pyranometer

  15. Atmospheric transmission coefficient S P , 30 ρ ° = • using the Bouguér formula S 0 • using the special tabs

  16. Atmospheric turbidity coefficient S T 11 , 5 lg • using the Linke formula 0 = S , 30 ρ ° • using the special tabs

  17. Solar radiation characteristics defined by unshaded piranometer • total solar radiation Q ; • direct solar radiation S` ; • diffuse solar radiation D ; • duration of solar irradiation; • atmospheric transmission coefficient P ; • atmospheric turbidity coefficient T .

  18. Using unshaded pyranometer for measuring solar radiation components in the automatic mode Zuev S. V. zuev@imces.ru Institute of Monitoring of Climatic and Ecological Systems SB RAS Russia, 634055, Tomsk, 10/3, Academichesky ave.
