tower
play

Tower Inquiry P hase 1 Report Presentation Gren fell E xposure - PowerPoint PPT Presentation

David Purser Grenfell Tower Inquiry P hase 1 Report Presentation Gren fell E xposure of occupants to toxic fire p roducts - effects on escape and survival P art 3 P ossible Toxicity Performance of Materials P resent at

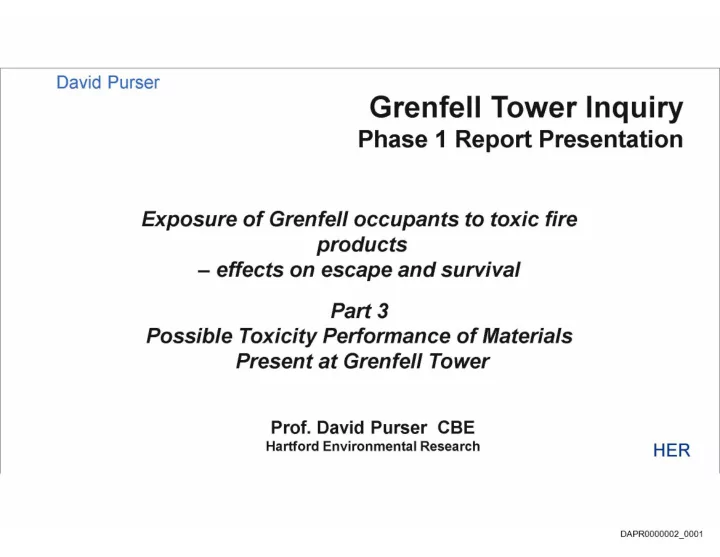

  1. David Purser Grenfell Tower Inquiry P hase 1 Report Presentation Gren fell E xposure of occupants to toxic fire p roducts - effects on escape and survival P art 3 P ossible Toxicity Performance of Materials P resent at Gren fell Tower P rof. David Purser CBE H artford Environmental Research HER D APR0000002_0001

  2. David Purser Contribution of materials to toxic hazards in fl ats • Contribution of any burning materials to toxic hazards at Grenfell depend on extent that their combustion p roducts form part of the time -concentration curves for toxic smoke and gases inhaled by each occupant • Depends on: M ass burning rate (kg/s) Y ields of toxic products (for example kg CO per kg material mass burned) ) -- p- Volume into which the products are dispersed (kg/m 3 ) 25 30000 • Yields of smoke and toxic gases from any material depend on: 2 5000 • Elemental composition: mass ' 3 /0 C,H,0 N,CI,Br,P inert fillers 2 0 ( ' Et • Organic composition (type of polymer): 2 0000 'a o e.g. polystyrene (XPS) or polyisocyanurate (PIR) 1 5000 k c ., o Flame retardant additives 1 0000 • Combustion conditions o. 0 5 5 000 0 o for flaming fires the fuel to air equivalence ratio [io] i .e. For well ventilated fires the yields of toxic smoke products is ao 16 20 26 30 36 0 6 10 T ime (min) from ignition l ow; for under ventilated fires, the yields of toxic smoke is high g g _emcee mien ponder -HCN pm -CO ppm -Temp.depC 320 R osepark: smoke heat and gases in open bedroom off fire corridor H ER D APR0000002_0002

  3. David Purser Conditions in flats • For developing hazards for each Grenfell flat there are three main fuel packages of interest: • Combustible parts of rainscreen cladding and insulation kg/m 2) • Reynobond 55 rainscreen panels 3 mm thick polyethylene (LDPE) (estimated density 0.92 g/cm 3 , 2.8 • 2 x Celotex RS5080 panels on spandrels 80 mm thick polyisocyanurate foam (PIR) (density 2.8 kg/m 2 ) • 1 x Celotex RS5100 panels on columns 100 mm thick polyisocyanurate foam (PIR) (density 3.38 kg/m 2 ) • Combustible parts in the window surrounds and between the windows • Exterior window infill panels 25 mm thick extruded polystyrene (XPS) estimated density 38 g/cm 3 , 0.95 kg/m 2 • window surround 9.5 mm thick polyvinylchloride (uPVC) (estimated density 1.5 g/cm 3 ,14.25 kg/m 2 ) • Other smal ler component of window surround not considered include polyurethane foam "Purlboard" insulation above windows, f oam backing of uPVC and expanded foam infil l , items of PIR foam around windows, wood, EDPM rubber weatherproofing m embrane on interior sides of windows • Combustible flat contents • solid and upholstered furniture, appliances, soft furnishings and clothing, cupboard, storage and interior doors HER R ose pa rk closed bedroom D APR0000002_0003

  4. David Purser Grenfell structural materials R eynobond PE P olyisocyanurate (PIR) Foam Insulation (on Column Sectior PIR Foam Insulation (on Spandrels Sections) R ainscreen Cassettes & Architectural Panelling A luminum tops - OsilSOP) _ ).cos ( WM UMW PtR les, i nostotion P etysinylions (PE) N.A.. Aluminium sun SI. ( We+ iurtrus) ( now surf ova) P IR foam insulalun Foil face W indow Infill Panels u PVC Window Boards u PVC Smovn SUf fOCO ,nsulat.on Alum nium AlumnIum P S foam b heel s heet C ore HER I mages from Bisby Phase 1 presentation D APR0000002_0004

  5. David Purser Locations and damage to structural materials and contents e .v.. fan m ake ..refc. w - 0 , 1 pa C durrn ACM common cass•Om Sololdne ucixti ACM 111.S0.OII c ladding, insulation, and window infill panels Bisby Fig 9 MET0000449171 Upper floors of Tower showing extensive loss of cladding, insulation, and window infill panels fulET00004491 E vidence of fire s preading into flat via of j amb edge window f rame rigure 43: Kitchen window, Level 6, f lat 36 f igur 10.52: Bunicd uPVC' dame in Flat 15 F ire damage around window and some damage to fl at contents Flat 36 HER B urned uPVC window frame in Flat 15 T orero Figure 43 D APR0000002_0005

  6. David Purser Tower dimensions A rea and mass of fuel items outside and around windows of one and two bedroom flats calculated from Tower dimensions in B isby Phase 1 report Figures 5,8 and 36. Window infill p anels NOrth Face F ace column 55112 -525- 2113011--•25- 1 1145 F TI;e/? s ', , 11 1 Spandrel section i —a-- . ). 1 .0.1255 0 / MINN r W PC& BAY LEVELS I TO 70 WEST /EAST ELEVAIICN Swill Face ( EASIMEST 43 OPPOSSE 4 0 OFF AS DRAWN TYPE the 4 0 OFF CPP l'A4D TYPE low W indow glazing B isby Figure Figure 5 Tower floor plan dimensions B isby Figure 8 Tower floor elevation dimensions east and west faces H ER D APR0000002_0006

  7. David Purser Combustible masses for each flat • Combustible contents of individual flats unknown and variable. • Estimate made of typical flat combustible contents including solid and upholstered furniture, appliances, soft furnishings a nd clothing, cupboard, storage and interior doors. • Carbon and nitrogen estimated from generic composition of these items T able 1: Approximate masses(kg) of combustible fuels per flat P IR LOPE XPS PVC Flat contents 1 bedroom flat 66.3 35.3 2.9 78.8 471 2 bedroom flat 158.4 90.1 7.2 183.8 661 • Combustible mass of flat contents is greater than that of the other components • Total mass of FIR insulation in columns and spandrels outside each flat is large = —25% of total flat contents mass • Total mass of LOPE in rainscreen cladding also large = —14% of total flat contents mass • Total mass of XPS panels is small = — 1% of flat contents mass • Total mass of uPVC around window interiors is large =-28% of total flat contents mass A s an approximate guide, the combustion products from at total of 5-7 kg or material dispersed into the volume of a flat w ould produce dense smoke and a toxic gas environment capable of causing incapacitation and death after a few minutes e xposure HER D APR0000002_0007

  8. David Purser Composition of fuel materials A list of toxic gases that may be produced by Grenfell Related Material (including flat contents) • Composition measured for generic materials of the same polymers as at Grenfel l (Purser and Purser 2003 [see Table 3 in P urser Phase 1 report]). • Same source used for a polymer mix to estimate the generic composition of the total contents of a flat T able 3: Mass percentages of carbon, nitrogen and chlorine in Grenfell-related m aterials Carbon Nitrogen Chlorine P olyisocyanurate PIR 66.3 6.15 3.65 L ow density polyethylene LOPE 85.6 0 0 o P olystyrene foam (XPS) 92.3 2 P olyurethane foam (FUR) 56.5 8.2 2.53 P olyvinylchloride (PVC) 38.4 0 56.7 o P lywood 46.3 0.32 M ixed flat contents (approximate) 50 3.7 2.0 N ote: these proportions are for materials tested from Table 2, not for actual products present at G renfell and may vary slightly in commercial products with different formulations. • Al l have a high carbon content — producing smoke (soot) particles, organic irritants and carbon monoxide during c ornbustion • PIR and PUP have a high nitrogen content — producing oxides of nitrogen (N0x) and hydrogen cyanide (HCN) • PVC has a high chlorine content and PIR (also possibly XPS) a significant chlorine or bromine content, producing highly i rritant hydrogen chloride (or hydrogen bromide) during combustion • This also reduces combustion efficiency, increasing yields of CO and HON from other fuels • Mixed flat contents has a significant nitrogen content from PUR and other materials and chlorine from additives and HER P VC D APR0000002_0008

  9. David Purser Yield data used for flat toxic hazard assessment • LDPE cladding and XPS panels burned mainly in open air on the building exterior: so estimated reasonably well -ventilated c ombustion condition • FIR insulation burning in cavity likely to be under -venti lated (cp 1.5-2.0), but when cladding falls or it is exposed to the open air so l ikely to become well ventilated (cp <1) • Therefore I used both cases. • PVC window surround was initially well -venti lated and produced similar yields across cp range — used cp 1 • When flat contents became involved, the conditions were already under -ventilated so I used (cp 1.5-2.0) • Smoke and toxic gas yields measured using the I50T519700 test method and validated using large-scale compartment fires ( Purser 2003 and Phase 1 report Table 4) • smoke, CO and HON yields lowest under wel l -ventilated flaming combustion conditions (cp 0.5-1) but higher for under -venti lated c ombustion HER D APR0000002_0009

Recommend


More recommend
