The Zeeman Effect: Mercury Fine Structure and Determination of e / m - PowerPoint PPT Presentation

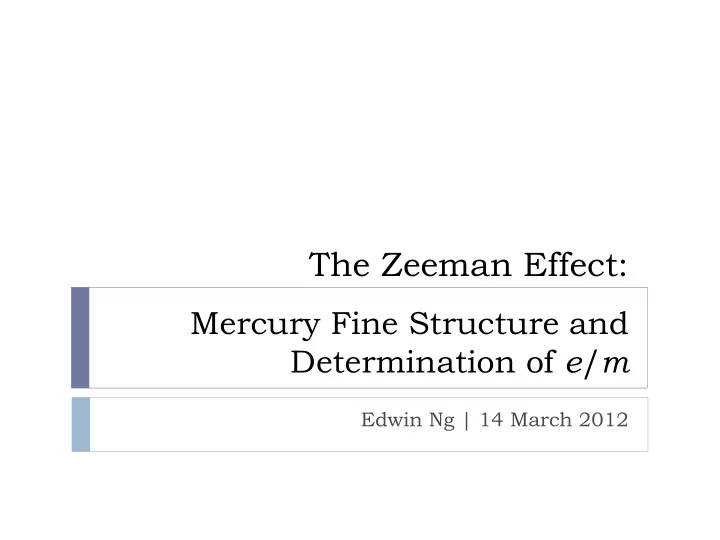

The Zeeman Effect: Mercury Fine Structure and Determination of e / m Edwin Ng | 14 March 2012 Theory of the Zeeman Effect Relating FP Spectrum to Energy Governing equation for Fabry-Perot Relate this to the energy of a splitting


  1. The Zeeman Effect: Mercury Fine Structure and Determination of e / m Edwin Ng | 14 March 2012

  2. Theory of the Zeeman Effect

  3. Relating FP Spectrum to Energy  Governing equation for Fabry-Perot  Relate this to the energy of a splitting

  4. Governing Equation for e / m  From theory of the Zeeman effect,  Solve for e / m in the Bohr magneton

  5. Zeeman Splitting: Pictures Unpolarized σ Polarized π Polarized

  6. Zeeman Splitting: Interferograms

  7. Zeeman Splitting: Interferograms

  8. Zeeman Splitting: Interferograms

  9. Zeeman Splitting: Interferograms

  10. Zeeman Splitting: Interferograms

  11. Zeeman Splitting: Interferograms

  12. Fitting Procedure: Overview  Fit selected regions of interferogram with a sum of Gaussians on top of a background  Interested in n j which give peak positions

  13. Fitting Procedure: Method I

  14. Fitting Procedure: Method I Summary  δ n is the average of consecutive peaks  Uncertainties on δ n :  Statistical uncertainty: Uncertainty of splitting n j – n j-1  Systematic uncertainty: S.D. of all such splittings divided by square root of (peaks-1)  Δ n is the FSR (diff. between two reference peaks)  The ratio R = δ n/ Δ n propagates all uncertainties  Finally, extract R/ δ g ( δ g = ½ for green)

  15. Fitting Procedure: Method II

  16. Fitting Procedure: Method II Summary  δ n is splitting of two representative lines  Uncertainty on δ n is just uncertainty of n j – n j-1  Δ n is the FSR (diff. between two reference peaks)  Calculate the ratio R = δ n/ Δ n (small uncertainty)  δ g is now between the two representative lines  δ g = 3 for σ - σ green; δ g = 14 / 6 for σ - σ 5770 yellow  Uncertainty on δ g: neighboring (unresolved) lines  ±½ for green line and ± 1 / 6 for 5770 yellow

  17. e / m From Green Line

  18. e / m From Yellow Line (5770 Å)

  19. Conclusions  Observed splitting of energy degeneracy by Zeeman effect  Observed polarization of emitted photons  Final determination of e / m  (1.813 ± 0.130 rand. ± 0.076 syst. ) x 10 10 kG -1 s -1  Correct value: 1.759 x 10 10 kG -1 s -1  Result: (1.031 ± 0.074 rand. ± 0.043 syst. ) e / m

  20. Question and Answer
