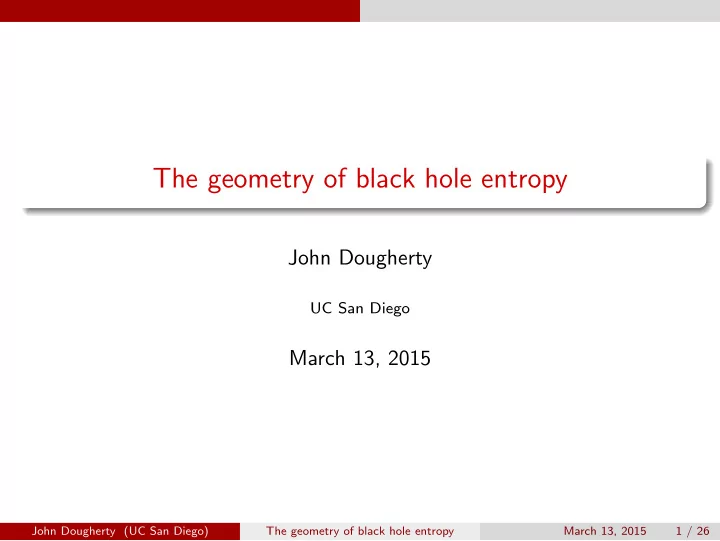

The geometry of black hole entropy John Dougherty UC San Diego March 13, 2015 John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 1 / 26

Introduction The laws of BHT 0 κ is constant on the horizon 1 1 δ M = 8 π κ δ A + Ω δ J 2 δ A ≥ 0 in any process 3 κ = 0 not achievable by any process John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 2 / 26

Introduction The laws of BHT 1 1 δ M = 8 π κ δ A + Ω δ J 2 δ A ≥ 0 in any process Puzzles 1 The δ acting on M and J represents a perturbation of a quantity at spatial infinity; δ A is a perturbation at the horizon. How do they relate? (Curiel 2014) 2 How do the δ A in the first and second laws relate? John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 3 / 26

Introduction Wald entropy Iyer and Wald (1994) propose a definition of entropy that will help us answer these. The Wald entropy applies to any diffeomorphism covariant Lagrangian field theory of the form � � ◦ ◦ ◦ ◦ ◦ ◦ ◦ L g ab , ∇ a 1 g ab , . . . , ∇ a k ) g ab , ψ, ∇ a 1 ψ, . . . , ∇ a l ) ψ, γ ∇ ( a 1 · · · ∇ ( a 1 · · · On this definition, the perturbations do not act at spatial infinity and the horizon, but globally. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 4 / 26

Introduction Wald entropy Two steps 1 Show that � � ◦ ◦ ◦ ◦ ◦ ◦ ◦ L g ab , ∇ a 1 g ab , . . . , ∇ ( a 1 · · · ∇ a k ) g ab , ψ, ∇ a 1 ψ, . . . , ∇ ( a 1 · · · ∇ a l ) ψ, γ may be writtenmay be written � � L g ab , ∇ a 1 R bcde , . . . , ∇ ( a 1 · · · ∇ a m ) R bcde , ψ, ∇ a 1 ψ, . . . , ∇ ( a 1 · · · ∇ a l ) ψ with R bcde the Riemann tensor of g ab . 2 Construct differential forms satisfying the first law using our new L . John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 5 / 26

Variational calculus Let M be some spacetime, and consider a bundle π : E → M over it. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 6 / 26

Variational calculus The 1-jet bundle π 1 : J 1 E → M adds data about first derivatives. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 7 / 26

Variational calculus The 2-jet bundle π 2 : J 2 E → M adds data about second derivatives. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 8 / 26

Variational calculus The ( ∞ -)jet bundle π ∞ : JE → M is the inverse limit JE = lim − J n E . ← JE π ∞ π ∞ n +1 n π n +2 π n π n +1 n +1 J n +1 E n − 1 n J n E · · · · · · Above some point p ∈ M , JE has all possible Taylor series around p . It gives all the ways a section of E could look over an infinitesimal region. For any section φ of E , there is a section j ∞ φ of E that assigns to p ∈ M the Taylor expansion of φ about p . John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 9 / 26

Variational calculus Variational bicomplex The variational bicomplex Ω ∗ , ∗ ( JE ) of E is the de Rham complex of differential forms on JE with the exterior derivative d + δ . For a Lagrangian L , the global first variational formula δ L = E + d Θ is an equation of ( n , 1)-forms on JE . Wald’s locally constructed forms Ω ∗ loc ( M ) are the image of the pullback along ( id , j ∞ ) → M × Γ( JE ) ev e ∞ : M × Γ( E ) − − − − − → JE John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 10 / 26

Variational calculus Global equation of first variation (Zuckerman, 1987) Theorem For any ( n , 0)-form L , there is an ( n , 1)-form E and an ( n − 1, 1)-form Θ such that δ L = E + d Θ John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 11 / 26

Gauss–Bonnet Example: The Gauss–Bonnet theorem (Anderson 1989, xxii–xxv) The Gauss–Bonnet theorem: � K dA = 2 πχ ( X ) M for a 2D Riemannian X with Gaussian curvature K . Take E = R 2 × R 3 over M = R 2 , restrict attention to local, regularly parametrized surfaces. δ L = d η , so the LHS vanishes. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 12 / 26

Gauss–Bonnet What gives? We’re missing the global aspects of the problem. The problem should be invariant under Euclidean motions in R 3 and 1 orientation-preserving diffeomorphisms of the base space. If we consider only equivariant forms, then we no longer have δ L = d η . 2 This leads us to the global first variational formula 3 δ L = E + d Θ Lesson: the global first variational formula δ L = E + d Θ incorporates covariance, and encodes global information about the bundle of interest. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 13 / 26

Iyer and Wald step 1 Iyer and Wald step 1 A Lagrangian is determined by a function L : JE → R . IW’s result: there is a bijection between functions JE g × M JE ψ × M E ◦ γ → R and functions JE g × M JE R × M JE ψ → R such that L uses the R abcd of g ab . John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 14 / 26

Iyer and Wald step 1 Proof Consider the function u : J 2 E g → E g × M E R u : ( p , g µν , g µν,λ , g µν,λσ ) �→ (( p , g µν ) , ( p , R µνλσ )) u splits the projection JE g × M JE R → JE g (i.e., pr 1 ◦ u = id ), so u ◦ pr 1 pr 1 JE g × M JE R JE g × M JE R JE g id L L ′ R is an absolute coequalizer. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 15 / 26

Iyer and Wald step 1 Diffeomorphism invariance We’ve shown that L can always be rewritten � � ◦ ◦ ◦ ◦ ◦ ◦ ◦ L g ab , ∇ a 1 R bcde , . . . , ∇ ( a 1 · · · ∇ a m ) R bcde , ψ, ∇ a 1 ψ, . . . , ∇ ( a 1 · · · ∇ a l ) ψ, γ But what about the background fields? IW claim that they drop out when we demand covariance, but I disagree. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 16 / 26

Iyer and Wald step 1 (Assumptions about) general covariance General covariance: Diff ( M )-equivariance Background field: a section of a bundle with a trivial Diff ( M )-action So by general covariance of L , we must have ∂ L ◦ γ = 0 L ξ ◦ ∂ γ for ξ the infinitesimal generator of the diffeomorphism. For a background field, ξ generates id ; i.e., ξ = 0. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 17 / 26

Iyer and Wald step 1 Step 1 summary 1 The variational bicomplex allows for a bit more precision about the geometric objects involved and the role of general covariance. 2 There is a simple bijective correspondence between covariant Lagrangians L : JE g × M JE ψ → R and covariant Lagrangians L ′ : JE g × M JE R × M JE ψ → R which factor through u . 3 Assuming the definition of general covariance just given, we cannot eliminate dependence on background fields. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 18 / 26

BH entropy as Noether charge The first law Recall that for any Lagrangian L , there are E and Θ satisfying δ L = E + d Θ The ambiguities in E and Θ are well understood. E suffices to pick out the solutions to the equations of motion, but Θ is needed to characterize conserved quantities, like δ Θ (Noether, 1918). IW define black hole entropy, and derive the first law, by considering a decomposition of Θ. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 19 / 26

BH entropy as Noether charge Θ as a current Consider the purely geometric sector: no matter fields, no background fields, and fix the Einstein–Hilbert Lagrangian. δ Θ is a conserved current, called the Crnkovi´ c–Witten current, Ashtekar–Bombelli–Koul current, or universal current. Pick some spatial slice Σ of M , and define � ω Σ = δ Θ Σ On shell, ω Σ depends only on the homology class of Σ. Alternatively: don’t integrate, then δ Θ defines a cohomology class in H 4+1 ( M × S , R ), for S ⊆ Γ( JE g × M JE R ) the solution set. John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 20 / 26

BH entropy as Noether charge Decomposing Θ Now we break the rewriting symmetry. On JE g × M JE R we have δ L = E g δ g + E R δ R + d Θ For a spatial slice Σ, we define � S Σ = 2 π E R d Σ Σ John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 21 / 26

BH entropy as Noether charge If ξ is a stationary Killing field, then it is also a symmetry of L . Noether’s theorems give conserved charge Q in terms of δ Θ that’s closed on shell. Using ξ to decompose Q gives: � 1 � 0 = dQ = − d δ M + d 4 κ δ ( E R d Σ) + d (Ω δ J ) Integrating over Σ and applying Stokes’ theorem gives the first law: δ M = 1 8 πκ δ S Σ + Ω δ J Takeaway: this derivation of the first law is determined by ξ , the cohomology class of Σ, and E R . John Dougherty (UC San Diego) The geometry of black hole entropy March 13, 2015 22 / 26
