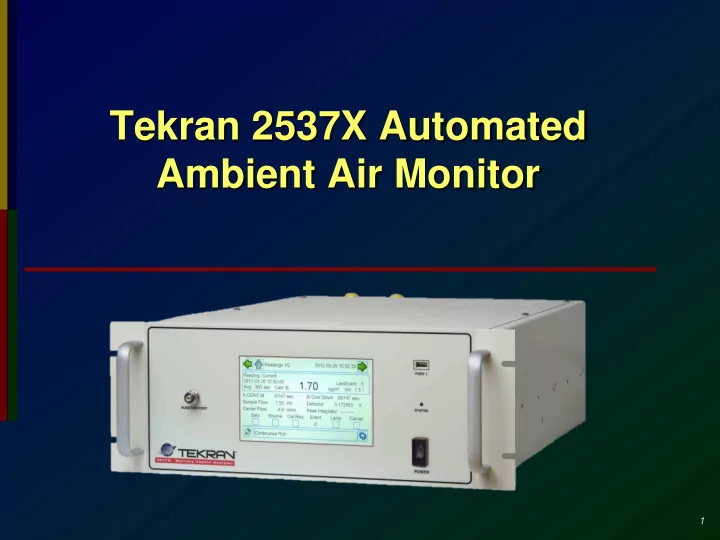

Tekran 2537X Automated Ambient Air Monitor 1

The All-New Tekran 2537X Highlights High resolution touch screen interface  100% backwards compatibility with Local data storage and front panel   prior 2537 units and 1130/1135 USB port retrieval and update systems Improved accessibility of routine  Network enabled – No PC needed maintenance components  www.tekran.com lab-air-info@tekran.com 2

2537X Hardware Improvements Faster cool down time with  independent high-velocity What’s New Inside channeled fans the 2537X Main serviceable components  located on top deck for ease of access New lamp stabilizer and  detector electronics Lower dead volume permeation  chamber New valves with reduced dead-  volume and better performance Reduced height from 5U (8.75”)  to 4U (7”) www.tekran.com lab-air-info@tekran.com 3

More Hardware Improvements! Constant power heater control  delivers consistent heating of What’s New Inside gold cartridges the 2537X Direct access to cuvette without  opening detector block Improved gold cartridge mounts  for ease of maintenance Integrated injection port with  flared needle entry point Sample Pump located on top  panel for easy access Protected power switch  eliminates accidental instrument power interruption www.tekran.com lab-air-info@tekran.com 4

2537X Data Input / Output On-board storage of sample data  Data Handling with front panel USB retrieval (no PC needed) & Communication Connectable via serial port, network  port, or USB port Data logging of multiple instrument  parameters Built-in data review screens  Remote instrument login and control  Digital controls of all devices (PMT,  Perm Source, Lamp, etc.) RS-485 ports for communication  with external devices www.tekran.com lab-air-info@tekran.com 5

2537 Information Screens Page Navigation Button Last Analysis Summary Current Analytical Step (Both Cartridges) Instrumental Parameters Status Indicators Page Navigation Buttons Lamp Emission Setpoint Current Lamp Driver Values Lamp Temperature Setpoint Apply/Reset Current Lamp Settings www.tekran.com lab-air-info@tekran.com 6

2537 Information Screens Calibration Summary Table Viewable Calibration Files Calibration Data Control Buttons Current Run Status Setup Screen Data Dump Button Instrument Plugin Installation Button Update 2537X Firmware Download Current Settings (for Backup) Return to Home Screen www.tekran.com lab-air-info@tekran.com 7

2537X Performance: Accuracy Perm Source Assessment via Front Panel Injection Volume Injected Hg Measured Recovery Date Time ng/m 3 (L) (pg) (%) 12/27/2011 15:15:00 7.50 94.41 13.01 103.3 12/27/2011 15:20:00 7.50 94.41 12.27 97.4 12/27/2011 15:25:00 7.50 94.41 12.45 98.9 12/27/2011 15:30:00 7.50 94.41 12.35 98.1 12/27/2011 15:35:00 7.50 94.41 12.27 97.4 12/27/2011 15:40:00 7.50 94.41 13.05 103.6 12/28/2011 12:40:00 7.50 94.41 13.11 104.1 1/3/2012 14:05:00 5.00 94.41 18.71 99.1 1/3/2012 14:50:00 5.00 141.615 28.49 100.6 1/3/2012 15:00:00 5.00 141.615 28.97 102.3 1/3/2012 15:05:00 5.00 141.615 28.42 100.3 1/3/2012 15:10:00 5.00 141.615 29.49 104.1 1/3/2012 15:15:00 5.00 141.615 28.68 101.3 1/3/2012 15:20:00 5.00 141.615 28.69 101.3 1/3/2012 15:25:00 5.00 141.615 29.91 105.6 1/3/2012 15:30:00 5.00 141.615 29.02 102.5 Ave Rec 101.3 www.tekran.com lab-air-info@tekran.com 8

2537X Performance: Intercomparison 2537X & 2537B www.tekran.com lab-air-info@tekran.com 9

Testing Data From Urban Location www.tekran.com lab-air-info@tekran.com 10
