Tech Day Home Network Registry Idea Jacques Latour, CTO Canadian Internet Registration Authority October 30, 2017 1 Todays Home Network & IoT implementation are disparate, kind of scary & need structure! 2 ICANN60 Abu Dhabi -

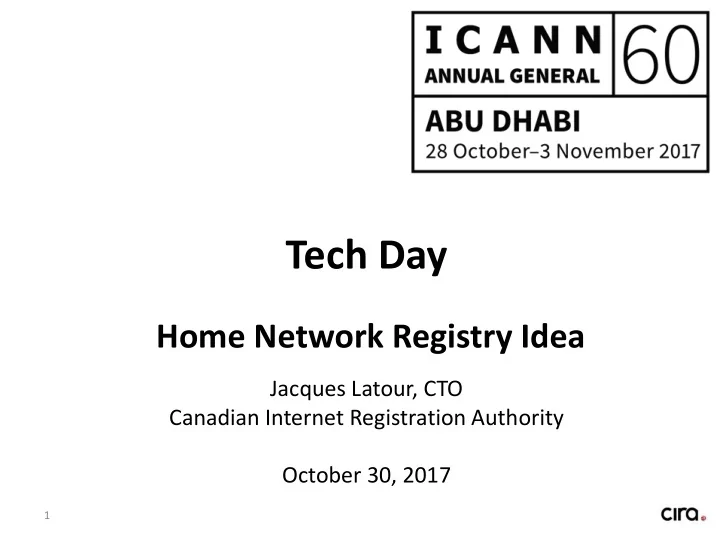

  1. Tech Day Home Network Registry Idea Jacques Latour, CTO Canadian Internet Registration Authority October 30, 2017 1

  2. Today’s Home Network & IoT implementation are disparate, kind of scary & need structure! 2 ICANN60 – Abu Dhabi - Home Network Registry Idea

  3. The home network of the future should be safe, secure and simple to use! 3 ICANN60 – Abu Dhabi - Home Network Registry Idea

  4. The home network should be reachable from the internet seamlessly and securely 4 ICANN60 – Abu Dhabi - Home Network Registry Idea

  5. Maybe even your car should be connected to your home network because your home is bigger than your house 5 ICANN60 – Abu Dhabi - Home Network Registry Idea

  6. And the home network grows to include personal and wearable IoT, inside and outside the home… 6 ICANN60 – Abu Dhabi - Home Network Registry Idea

  7. Your home network both internal and external traffic should be secured using a common key 7 ICANN60 – Abu Dhabi - Home Network Registry Idea

  8. Do I need to say more? 8 ICANN60 – Abu Dhabi - Home Network Registry Idea

  9. Seriously, what does this bring to the domain industry? la-house-a-latour.ca A domain name per household!!! 9 ICANN60 – Abu Dhabi - Home Network Registry Idea

  10. Leveraging the chain of trust in DNSSEC and some innovation to create a secure home network platform 10 ICANN60 – Abu Dhabi - Home Network Registry Idea

  11. home.arpa. draft-ietf-homenet-dot-14 <<The naming mechanism needs to function without configuration from the user. While it may be possible for a name to be delegated by an ISP, homenets must also function in the absence of such a delegation.>> • Let’s make delegated “home” domains function without user configuration! 11 ICANN60 – Abu Dhabi - Home Network Registry Idea

  12. The focus is on Automation Registry Home Network Automation Automation + Innovation 12 ICANN60 – Abu Dhabi - Home Network Registry Idea

  13. Your local ccTLD will provision your domain, sign it with DNSSEC and establish a secure chain of trust to your local home gateway, magically solve all your worries and keeping your online family safe  13 ICANN60 – Abu Dhabi - Home Network Registry Idea

  14. Remember, it’s an idea. So far it looks like this… That’s Supposed to be a napkin design  14 ICANN60 – Abu Dhabi - Home Network Registry Idea

  15. Step 1 • When you buy a home gateway, it comes bundled with a .CA home network domain + RFID card (Code to activate provisioning and domain) 15 ICANN60 – Abu Dhabi - Home Network Registry Idea

  16. Step 2 • Then you follow the provisioning instructions – Install & open the CIRA Home Gateway app – Turn on the Home Gateway – “TAP” your mobile to discover the home gateway – Pick a domain name – Enter the secret code (“TAP” RFID card) – Home Gateway ready for configuration + la-house-a-latour.ca code 16 ICANN60 – Abu Dhabi - Home Network Registry Idea

  17. Step 3 • Automated Backend Provisioning @ CIRA – CIRA creates the .CA domain name in the registry – CIRA signs the .CA domain with DNSSEC – CIRA is primary for the external DNS view of the .CA domain – CIRA provides secondary DNS to the .CA domain + + DNSSEC EXTERNAL (Keys) (Internet) 17 ICANN60 – Abu Dhabi - Home Network Registry Idea

  18. Step 4 • Automated Home Gateway provisioning – Establish secure connection to Home Gateway – Securely send private DNSSEC key to Home Gateway, setup internal DNS and DNSSEC – Configure Home Gateway for DNS integration with registry (à la dynamic DNS) for external services + +  DNSSEC INTERNAL EXTERNAL (Keys) (Home Network) (Internet) Dynamic DNS 18 ICANN60 – Abu Dhabi - Home Network Registry Idea

  19. Step 5 • Setup secure home network infrastructure – Using your trusted mobile & the app, “TAP” the Home Gateway to: • Learn the WIFI password • Get the IPSec password to VPN in your home network – Use your mobile and “TAP” all your IoT devices to add on your home WIFI network, easy peasy  19 ICANN60 – Abu Dhabi - Home Network Registry Idea

  20. High Level Architecture Internet Home Network Trust OpenWrt Internal DNS/DNSSEC External IPSEC Home Gateway D-Zone firewall Wifi MiFi Zigbee la-house-a-latour.ca NFC RFID IoT Cloud Remote Home Services Network Access Primary DNS .CA home Home Gateway .CA home (VPN IPSec) (D-Zone Firewall) Provisioning domain domain IPv6 ONLY Home Network Registry 20 ICANN60 – Abu Dhabi - Home Network Registry Idea

  21. What do you think? Want to help? 21 ICANN60 – Abu Dhabi - Home Network Registry Idea

  22. Going forward, it’s a journey! • Motivation – Ensure long term ccTLD relevance in the future of IoT • Proposing ccTLD to develop a solution – To keep the home network safe and secure – To create a secure <internet home> IoT environment – To leverage DNSSEC as an innovation platform to create a hub for “home trust” – That leverages the ccTLD registry expertise – To enhance OpenWRT with this functionality 22 ICANN60 – Abu Dhabi - Home Network Registry Idea

  23. Next Steps • Develop a Proof of Concept and prototype using .CZ Omnia • Use public GitHub with functional specification and prototype software • Research IETF Homenet DNS related drafts/RFC • Opportunity: – Put .CA domains in the forefront as a trusted homenet domain name for personal _HOME_ usage when end to end security is required – Sell CIRA Home Gateways 23 ICANN60 – Abu Dhabi - Home Network Registry Idea

  24. The new <Internet Home> https://github.com/CIRALabs/Hom e-Network-Registry-Gateway 24 ICANN60 – Abu Dhabi - Home Network Registry Idea
