Team Yellow: Section B Sketch Model Presentation Aaron Doody Harmeet Gill Moneer Helu Adam Leeb David Lopez Zack Reynolds Taylor Roan The Viscocise Making Exercise Accessible to EVERYONE ! Section Yellow-B Overview n The Need n

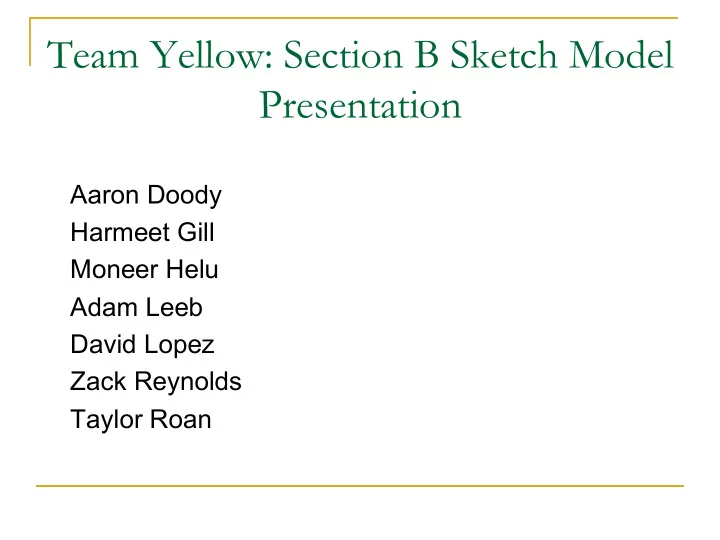

  1. Team Yellow: Section B Sketch Model Presentation Aaron Doody Harmeet Gill Moneer Helu Adam Leeb David Lopez Zack Reynolds Taylor Roan

  2. The Viscocise Making Exercise Accessible to EVERYONE ! Section Yellow-B

  3. Overview n The Need n The Device n Lessons Learned q Kinematics q Calculations q Next Iteration n Market Analysis

  4. The Need n 30% of U.S. deaths in 2000 due to lack of physical activity, smoking, and poor diet. n 43.4% of elderly deaths caused by heart disease, stroke, and diabetes. n 32.9% of elderly without physical exercise for the past month. n 19.5% of elderly are obese.

  5. The Solution The Viscocise The benefits of water aerobics on land

  6. Advantages n No stored energy q Safer than weights or springs. n Does not constrain motion q Same degrees of freedom as the body n Matches the force of the user q Viscous damping acts as a passive feedback system n Dual-direction resistance q Exercises complementary muscle groups.

  7. Calculations n Maximum Torque: ~40 Nm n Average Joint Rotational Speed: ~1 rad/s n Linear Damper (10cm moment arm): q Maximum Force: 400 N q Damping Coefficient: 40 N•s/m n Rotary Damper (1:1 gear ratio): q Maximum Torque: 40 N•m q Damping Coefficient: 40 N•m•s/rad

  8. Preliminary Testing Sketch Model

  9. The Next Iteration n Damper Selection q Rotary damping for elbow joints q Oil-based dampers n Proper Ergonomics q Mirror human joints q Dual support handle to eliminate torque on wrist n Contact: Kristina Martin Director of Aquatic & Fitness Programs Zesiger Sports and Fitness Center

  10. Market n 35+ million elderly in U.S. n Increased physical activity could save $77+ billion in medical expenses. n 95% of elderly health care spending on chronic diseases (i.e. diabetes, heart disease and stroke, cancer and arthritis).

  11. Questions? n (Insert Question Here … ) n Thank you for your time and consideration.

  12. Cost (~$50) n Joints: $2 n Structural Members: $10 n Dampers: $10 n Seat: $5 n Manufacturing Cost: ~$20

  13. Benefits of Exercise n Contributes to overall fitness including bone and muscle strength, flexibility, and weight control. n Helps prevent q Coronary Heart Disease q Obesity q Arthritis q High Blood Pressure q Diabetes q Osteoporosis q Stroke q Depression n Decreases injury and surgery recovery time.
