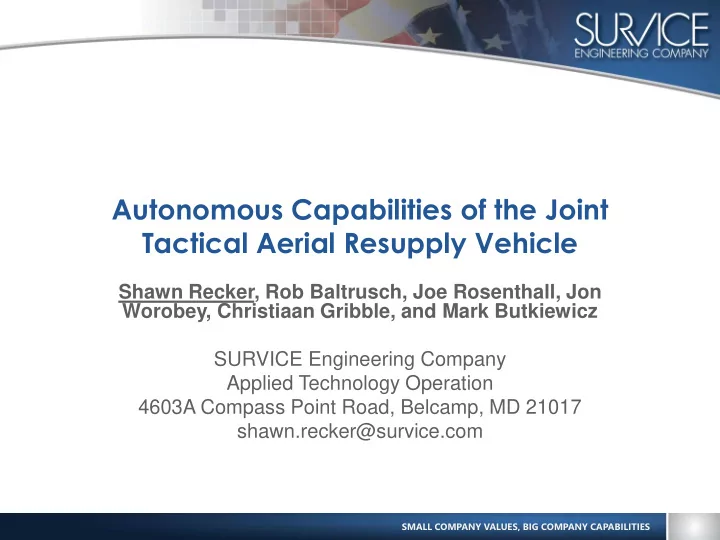

Autonomous Capabilities of the Joint Tactical Aerial Resupply Vehicle Shawn Recker, Rob Baltrusch, Joe Rosenthall, Jon Worobey, Christiaan Gribble, and Mark Butkiewicz SURVICE Engineering Company Applied Technology Operation 4603A Compass Point Road, Belcamp, MD 21017 shawn.recker@survice.com SMALL COMPANY VALUES, BIG COMPANY CAPABILITIES
