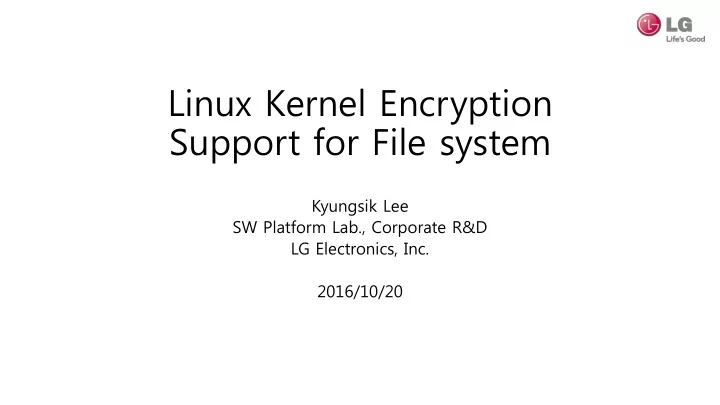

Linux Kernel Encryption Support for File system Kyungsik Lee SW Platform Lab., Corporate R&D LG Electronics, Inc. 2016/10/20 Mobile Security Mobile Security is an important issue More data could be more danger with mobile devices


  1. Linux Kernel Encryption Support for File system Kyungsik Lee SW Platform Lab., Corporate R&D LG Electronics, Inc. 2016/10/20

  2. Mobile Security • Mobile Security is an important issue  More data could be more danger with mobile devices • Android 6.0 FDE(full-disk encryption)  User data protected against offline attacks  Plaintext -> ciphertext  Based on a Linux Kernel Encryption feature that works at the block device layer 2

  3. Performance Issue (1/2) • Android 5.0(Lollipop) was to have device encryption enabled by default but … • According to Android 6.0 CDD For device implementations supporting full-disk encryption and with Advanced Encryption Standard (AES) crypto performance above 50MiB/sec , the full-disk encryption MUST be enabled by default at the time the user has completed the out-of-box setup experience Excerpted from Android 6.0 Compatibility Definition Document 3

  4. Performance Issue (2/2) • Sequential IO Read/Write  1 CPU core, freq.(0.6~1 GHz) Seq. write Seq. read 120 250 100 200 -40% -60% 80 150 MiB/sec. MiB/sec. 60 100 40 50 20 0 0 ext4 dm-crypt ext4(encrypt) eCryptfs ext4 dm-crypt ext4(encrypt) eCryptfs Cpu-freq. 598000 Cpu-freq. 819000 Cpu-freq. 1001000 cpu-freq. 598000 cpu-freq. 819000 cpu-freq. 1001000 4

  5. Linux Kernel Encryption (1/2) • History  dm-crypt, merged into 2.6.4 kernel(March, 2004)  eCryptfs, 2.6.19 kernel(November, 2006)  Ext4 encryption, 4.1 kernel(Jun, 2015)  VFS Crypto engine, 4.6 kernel => Generic File system Encryption Support 5

  6. Linux Kernel Encryption (2/2) • File system-level encryption, FBE  File-based encryption allows different files to be encrypted with different keys that can be unlocked independently.  File system-level encryption does not typically encrypt filesystem metadata  eCryptfs, ext4 encryption … • Disk encryption, FDE  Disk encryption generally uses the same key for encrypting the whole volume, disk partition  dm- crypt … 6

  7. dm-crypt • Part of the device mapper infrastructure, and uses cryptographic routines • Encrypt whole disks (including removable media), partitions Kernel Internals User space File system Block layer Virtual device Crypto APIs Encrypt/Decrypt Storage 7

  8. eCryptfs • Stacked cryptographic file system • Mount eCryptfs on top of any single directory to protect it Kernel Internals User space Crypto APIs eCryptfs File system(lower) Block layer Storage 8

  9. Ext4 Encryption • In a directory tree marked for encryption, file contents, filenames, and symbolic link targets are all encrypted Kernel Internals User space Crypto APIs Ext4(encrypt) Block layer Storage 9

  10. Case Study • Linux Kernel Encryption Scalability on multi-core system • Testing Environment  CPU core(x4), freq.(0.6 ~ 1 GHz)  CPU based encryption  Cipher type  eCryptfs, aes-cbc  Ext4-encrypt, aes-xts  dm-crypt, aes-cbc-essiv:sha256 10

  11. Sequential Read Prefetching • Readahead Seq. read(MiB/sec.) Seq. read(MiB/sec.) 250 25 200 20 150 15 MiB/sec. MiB/sec. 100 10 50 5 0 0 ext4 ext4-fde ext4(encrypt) ecryptfs-ext4 ext4 dm-crypt ext4(encrypt) eCryptfs ra=disabled ra=enabled cpu=1 cpu=2 11

  12. Read throughput • CPU-cores(1/2/4) Seq. read(MiB/sec.) 250 200 150 MiB/sec. 100 50 0 ext4 dm-crypt ext4(encrypt) eCryptfs cpu=1 cpu=2 cpu=4 12

  13. Read throughput • CPU-cores(1/2/4) Seq. read(MiB/sec.) 250 200 x1 x2 150 MiB/sec. x2 100 50 0 ext4 dm-crypt ext4(encrypt) eCryptfs cpu=1 cpu=2 cpu=4 13

  14. Write throughput • CPU-cores(1/2) Seq. write(MiB/sec.) 140 120 100 80 MiB/sec. 60 40 20 0 ext4 dm-crypt ext4(encrypt) eCryptfs cpu=1 cpu=2 14

  15. Write throughput • CPU-cores(1/2) Seq. write(MiB/sec.) x2 140 x2 120 100 x1 80 MiB/sec. 60 40 20 0 ext4 dm-crypt ext4(encrypt) eCryptfs cpu=1 cpu=2 15

  16. Random Read throughput • Random read(IOPS) Random read(IOPS) 6000 5000 4000 IOPS 3000 2000 1000 0 ext4 dm-crypt ext4(encrypt) eCryptfs IOPS ra=enabled IOPS ra=disabled 16

  17. Random Read throughput • Random read(IOPS) Lower File system Page Cache Random read(IOPS) 6000 5000 4000 IOPS 3000 2000 1000 0 ext4 dm-crypt ext4(encrypt) eCryptfs IOPS ra=enabled IOPS ra=disabled 17

  18. Improving Read performance (1/4) • Ext4(encrypt) seq. read throughput Seq. read(MiB/sec.) -75% Decrypt 250 Overhead 200 150 MiB/sec. 100 50 0 ext4 dm-crypt ext4(encrypt) eCryptfs cpu=1 cpu=2 18

  19. Improving Read performance (2/4) • Multi-threaded decryption(ext4) Normal IO Heavy IO User space Decrypt Bottleneck Ext4(encrypt) thread Block layer Storage 19

  20. Improving Read performance (3/4) • Multi-threaded decryption(ext4) Normal IO Heavy IO User space Decrypt Decrypt Ext4(encrypt) thread Decrypt thread Decrypt thread thread Block layer Storage 20

  21. Improving Read performance (4/4) • Ext4(encrypt) seq. read throughput: +50% 50% Random read(IOPS) Seq. read(MiB/sec.) 3500 80 -18% 70 3000 60 2500 50 2000 MiB/sec. IOPS 40 1500 30 1000 20 500 10 0 0 cpu=1 cpu=2 cpu=4 cpu=1 cpu=2 cpu=4 ext4(encrypt) Patched ext4(encrypt) Patched 21

  22. Conclusion • Seq. read throughput dropped significantly in CPU based encryption, leading to performance degradation • Read(decrypt) overhead: seq. read >> random read • Seq. write throughput falls slightly except eCryptfs • IO throughput of eCryptfs is shown less scalable in multi-core system • Seq. read performance can be improved by applying multi-threaded decryption 22

  23. Q & A 23
