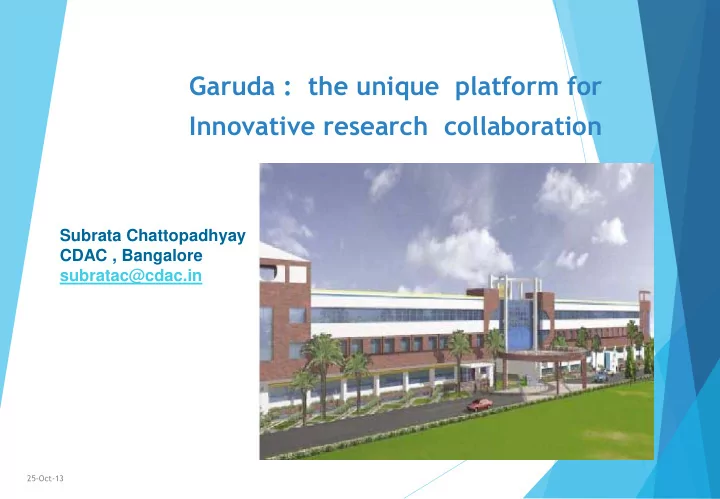

Garuda : the unique platform for Innovative research collaboration Subrata Chattopadhyay CDAC , Bangalore subratac@cdac.in 25-Oct-13
Outline Grid & Garuda NGI Recent achievements Applications Services & support Conclusion 2
Grid Computing Climate Disaster Bio Crypt CFD Modeling Management Informatics analysis Grid Middleware IITD 3 PRL YUVA GG-BLR GG-CHE GG-HYD TF BLR TF PUNE
Grid Computing Grid allows seamless access to information AND computing resources Name derived from the “Power Grid” You need not know or care where either comes from It means Grid allows users to share resources in a secure, seamless and transparent way. Grid also facilitates collaborative environment over the high speed communication Fabric. 4 The Super Computing power is accessible to the end users without the need of huge investment on
Grid Computing Sharing of resources among the community Seen as a collective pool Heterogeneous Geographically distributed Different Administrative domains Wide variety of Tools, Interfaces to choose with.
Components of Grid Middleware 6
Grid Middleware - Definition Middleware is a layer between grid applications and low level functionality of grid. Grid Middleware is a layer of S/W to enforce: Scalability, Transparency, Heterogeneity, Fault Tolerance and Security of the Grid below the application layers. It provides an uniform interface to the 7 Grid users and handle all the complexity generated due to heterogeneous systems.
Popular Middleware Globus – Globus Alliance GridBus – University of Melbourne UNICORE - Uniform Interface to Computing Resource gLite – CERN / EGEE /EGI Legion – (Avaki - Corporate Distributor) Alchemi – (.NET Grid Computing Framework) Condor SGE 8
10000 CPUs – 70 + Partners 550TF 1500 + Certificates 220TB Storage EGI, CHAIN- REDS NKN 25-Oct-13
• High Capacity, Highly Scalable Backbone • Provide Quality of Service (QoS) and Security • Wide Geographical Coverage • Common Standard Platform • Bandwidth from Many NLD’s • Highly Reliable & Available by Design • Test beds ( for various implementation) • Dedicated and Owned. 25-Oct-13
How to join Garuda grid ? 11
Pre-requisites for Accessing Garuda Network Connectivity to Garuda Resources Valid Grid Certificate MoU or LoE 12
Certificates can be compared to identity cards Name Mr. A Issuer 1. CDAC Govt Of Validity Bangalore India Signature BD 08-06-82 Valid Till: 01-02-2012 13
– Indian Grid Certification Authority located at C-DAC, Knowledge Park, Bangalore, India. – IGCA is the accredited member of APGridPMA. – Issues X.509 Certificates to support the secure environment in Grid. (for GARUDA, institutes that do research in grid from India and foreign institutes that collaborates with GARUDA). – http://ca.garudaindia.in 45 338 1500 + 41 • Certificates • Valid User • Valid Host • Registration Issued Certificates Certificates Authorities 25-Oct-13
IGCA – I ndian G rid C ertification A uthority located at C-DAC, Knowledge Park, Bangalore, India. – IGCA is the accredited member of APGridPMA. – Issues X.509 Certificates to support the secure environment in Grid. (for GARUDA, institutes that do research in grid from India and foreign institutes that collaborates with GARUDA). 15
GARUDA SLCS provides grid users an instant access to GARUDA grid for a trial period of 30days. Highlights: • Hassle free registration • Get an access in less than 5mins. • Service over the internet. Features: • GARUDA Job submission portal • GARUDA Compiler Service Website: http://labs.garudaindia.in 25-Oct-13
Web Repository Public accessible CA root certificates Certificate requests Valid certificates Revoked certificates CRL CP/CPS User guides/FAQ’s http://ca.garudaindia.in RA contact lists. CA Contact info 17
VOMS VOMS – Virtual Organization Management/Membership Service VOMS is a system to classify users that are part of a Virtual Organization (VO) on the: – Set of attributes that will be granted to them upon request. – include that information inside Globus-compatible proxy certificates 1. In addition to the standard X.509 based Grid certificates, the users should obtain separate VO credentials, from the VO Server. 2. The VO credentials identify the membership of a Grid User to a specific VO. 3. The VO credentials also identify the ‘Role’ of the Grid User in the corresponding VO.
VO Registration http://voms.garudaindia.in/ santhosh119 19
VO Registration 20
Virtual User Community in Garuda Group Name Description Bioinformatics application of statistics and computer science to the molecular biology ClimateModelling Deals with the dynamics of the climate system. OSDD Community dedicated to develop drugs for tropical infectious diseases like malaria, tuberculosis GeoPhysis Study related to physics of the Earth and its environment in space CAE usage of computer software to solve engineering problems IndianHeritage Focused on technology products for preserving & processing Heritage texts HealthInformatics Focused on utilizing compute power for health informatics MaterialScience interdisciplinary field applying the properties of matter to science and engineering Euindia The vision of a worldwide Grid for Research by both Europe and India ToolsDeveloper Forum to communicate and collaborate on developing Garuda Tools 21
VO Registration 22
Affiliating Mail from Garuda 23
Cloud Hand held CLI Access Portal Grid PSE Workflows Visualization Interface devices GARUDA – enabled Applications Resource Enabler & Monitoring Data Grid Programming Development Environment Federated Information Job Scheduler Server WSRF+GT4 + other Services + Cloud S/W (Nimbus/ VMware) Virtualization support Grid Security and High-Performance Grid Networking NKN CDAC Resource centers Research Organizations Educational institutions Non – Research Computing Centers Organizations Computing Resources and Virtual Organizations Programming Environments Resource Security Middleware User Environments Resources Data Grid Management 25-Oct-13
Garuda Access Portal Paryavekshanam Garuda Information Registry GSRM 25-Oct-13
Garuda GridFTP GUI Globus Online AGSG 25-Oct-13 PSP
Scilab Megha Galaxy Workflow – OSDD VRGeo Garuda 25-Oct-13 Garuda User Forum
CDAC Resource : • 4TF HPC clusters each at Bangalore, Chennai & Hyderabad • PARAM Yuva II at Pune and PARAM Padma at Bangalore Fourteen of the partner are also institutions contributing resources including satellite terminals. Total computing power is more than 10000 CPUs equivalent to 550TF Storage space 220 TB 25-Oct-13
Serving applications of National Importance Alliance with the Open Source Drug Discovery (OSDD) project ‐ of CSIR Disaster management applications ‐ Weather forecasting models & Earthquake engineering ‐ Applications from the fields of Bioinformatics, CAE & Material ‐ sciences First in India Setting up of Indian Grid Certification Authority (IGCA) in 2009, ‐ to issue digital certificates for grid researchers in India Digital certificates trusted by other International Certification ‐ authorities Issued more than 1500 IGCA certificates ‐ Global Integration Integrated with the European Grid Infrastructure through the ‐ EU-India Grid and CHAIN-REDS Achieved middleware interoperability between the European ‐ Glite middleware & Garuda middleware components 25-Oct-13
25-Oct-13
