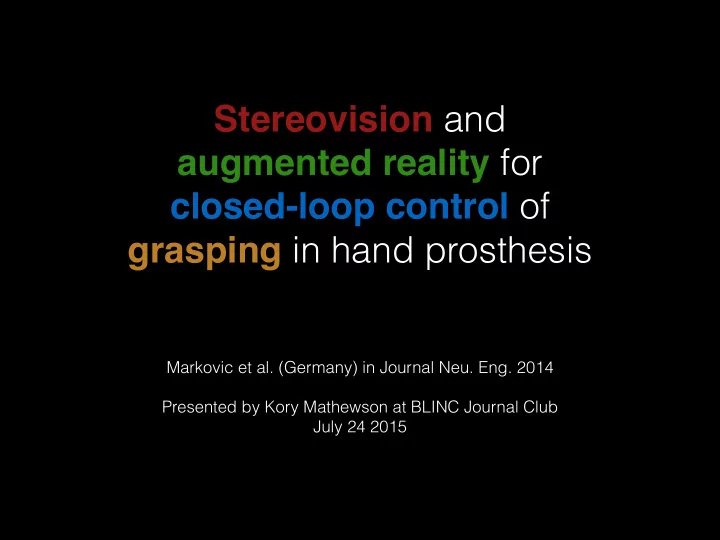

 Stereovision and
 augmented reality for
 closed-loop control of
 grasping in hand prosthesis Markovic et al. (Germany) in Journal Neu. Eng. 2014
 Presented by Kory Mathewson at BLINC Journal Club
 July 24 2015

Motor Info
 (feed-forward) Closed-loop
 Control Sensory Info
 (feedback) Inputs Planning
 Execution
 Complex
 (Low dimension) Control (high-level) (low-level) Tasks Learning Salient points: user focus on the task ,
 information bandwidth , user burden

Motor Info
 (feed-forward) Sensory Info
 (feedback) EEG, ECG, foot movements, tongue, EOG,
 implantable neural electrodes and myoelectric sensors,
 EMG Multichannel surface electromyography Can we enrich artificial controller
 with extra information to allow
 autonomous decision making?

Can we enrich artificial controller
 with extra information to allow
 autonomous decision making?
 Adding perception with sensor fusion. Stereovision Automatically reshape grip pattern. Operational responsibility (cognitive load)
 shared between the system and the user.

Motor Info
 (feed-forward) Sensory Info
 (feedback) direct mechanical (vibrotactile, haptic),
 electrocutaneous stimulation, vibration motors,
 hybrid stimulation, invasive approaches, AR Augmented reality Artificial proprioception by projecting
 the prosthetic into the field of view.

Study Design 1) Compare fully vs semi-automatic control. 2) Evaluate user ability to share control. 3) Measure feasibility of utilizing AR feedback. Auto-AR
 4
 Semi-AR
 conditions SEMI-AR-RE Semi-Vis-RE 13 subjects 6 series 20 objects 1560 trials

Study Design 1) Compare fully vs semi-automatic control. 2) Evaluate user ability to share control. 3) Measure feasibility of utilizing AR feedback. Results 1) Semi-automatic control performed better. 2) User was able to share control
 quickly and effectively. 3) User was able to use AR feedback to correct mistakes of automatic controller.

Discussion “It is likely that trained subjects will learn
 to rely more on feed-forward control
 Agree? and use feedback only when necessary” Only used four grip patterns,
 how would we generalize? Does this reduce burden on the user?
 How can we measure burden on the user? How else could AR / stereovision
 be utilized as a feedback mechanism? Is this optimal integration of manual
 and automatic control loops?
