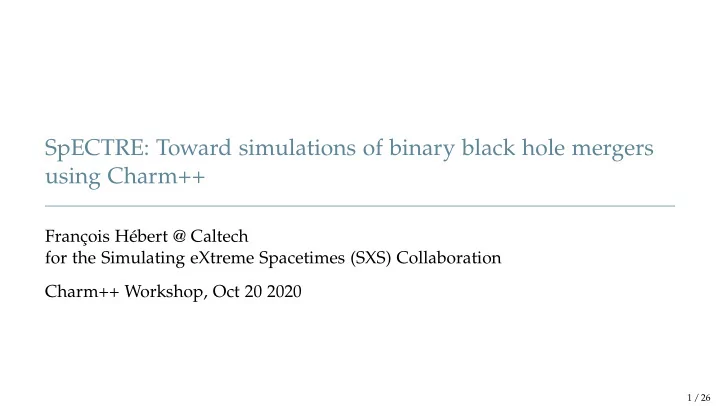

SpECTRE: Toward simulations of binary black hole mergers using Charm++ Franc ois H ebert @ Caltech for the Simulating eXtreme Spacetimes (SXS) Collaboration Charm++ Workshop, Oct 20 2020 1 / 26 Outline 1. Role of binary merger


  1. SpECTRE: Toward simulations of binary black hole mergers using Charm++ Franc ¸ois H´ ebert @ Caltech for the Simulating eXtreme Spacetimes (SXS) Collaboration Charm++ Workshop, Oct 20 2020 1 / 26

  2. Outline 1. Role of binary merger simulations 2. Current methods and challenges 3. SpECTRE: towards improved algorithms and scalability 4. Preliminary binary BH results 5. Load-balancing with Charm++ 2 / 26

  3. Gravitational waves LIGO/Virgo detect gravitational waves from merging binary BHs (and NSs) Simulation waveforms enable ⊲ detection of weak signals ⊲ characterization Future detectors will need significantly more accurate waveforms LIGO/Caltech/MIT 3 / 26

  4. Modeling relativistic matter Recent observations ⊲ merging binary NSs ⊲ accretion around supermassive BH Simulations provide models for ⊲ matter dynamics ⊲ heavy-element creation ⊲ electromagnetic spectra Simulations are expensive and struggle to reach desired accuracy Event Horizon Telescope Collaboration 4 / 26

  5. A binary BH simulation N. Fischer/SXS/AEI 5 / 26

  6. A binary NS simulation shortly after merger NASA 6 / 26

  7. Equations to solve Many coupled PDEs ⊲ hyperbolic equations: ∂ t U + ∂ i F i ( U ) + B i · ∂ i U = S ( U ) Complicating features ⊲ Einstein’s equations: — choice of coordinates — singularity inside BH ⊲ GRMHD: — turbulence & shocks — neutrinos, nuclear reactions, ... 7 / 26

  8. Solving the PDEs — current methods Finite volume/difference methods ⊲ represent solution with values at points ⊲ overlapping cartesian grids ⊲ shock-capturing schemes ⊲ polynomial convergence ⊲ “ghost zone” data from neighbors Most binary BH, all matter simulations Ghost zones 8 / 26

  9. Solving the PDEs — current methods Spectral methods ⊲ represent solution with basis functions ⊲ geometrically-adapted grids ⊲ smooth solutions only ⊲ exponential convergence ⊲ boundary data from neighbors Fluxes State of the art for binary BH simulations 9 / 26

  10. Parallelism – current methods MPI + some threading ⊲ finite volume/difference codes scale to ∼ 10 , 000 cores ⊲ Spectral Einstein Code (SpEC) — ∼ 1 spectral element per core — ∼ 100 , 000 FV cells per core — scales to ∼ 50 cores Simulations take time ⊲ binary BH ∼ week ⊲ binary NS ∼ month 10 / 26

  11. SpECTRE SpECTRE: a next-generation code for relativistic astrophysics ⊲ discontinuous Galerkin ⊲ task-based parallelism ⊲ github.com/sxs-collaboration/spectre This talk ⊲ methods for binary BHs ⊲ preliminary binary BH results ⊲ load balancing with Charm++ Not in this talk – improving hydrodynamics algorithms 11 / 26

  12. Discontinuous Galerkin ⊲ generalized spectral method — exponential convergence for smooth solutions — fall back to shock-capturing schemes where needed ⊲ geometric flexibility ⊲ nearest-neighbor boundary communication ⊲ AMR and local timestepping 12 / 26

  13. Code test: single BH G. Lovelace 13 / 26

  14. Code test: code scaling Scaling on BlueWaters (NSCA, UIUC) ⊲ green = strong scaling, fixed problem size ⊲ blue = weak scaling, proportional problem size (*) measurements made with a hydrodynamics evolution; predate an infrastructure rewrite in SpECTRE 14 / 26

  15. Towards a binary BH evolution ⊲ initial data — initial guess + solve elliptic constraint equations — in development — for now, use SpEC initial data ⊲ PDE solver (discontinuous Galerkin + time stepper) ⊲ strategy to keep the singularities off the grid 15 / 26

  16. Keeping the singularities off the grid Excision ⊲ cut out BH interior ⊲ move excised regions with BH orbit Control system ⊲ measures BH positions and shapes ⊲ updates time-dependent mappings to keep excised regions inside the BH Time derivatives gain moving-mesh terms 16 / 26

  17. Towards a binary BH evolution ⊲ initial data — initial guess + solve elliptic constraint equations — in development — for now, use SpEC initial data ⊲ PDE solver (discontinuous Galerkin + time stepper) ⊲ strategy to keep the singularities off the grid — in development — for now, use moving-mesh data from SpEC 17 / 26

  18. Binary black hole evolution Movie shows equatorial cut ⊲ colored by lapse: spacetime curvature component associated with flow of time ⊲ manually excised regions ⊲ BHs follow excision regions for many orbits 18 / 26

  19. SpECTRE use of Charm++ SpECTRE components ⊲ DG elements = array chares ⊲ data processing (IO, interpolations) = group and nodegroup chares ⊲ measuring a BH position and shape = singleton chare ⊲ computing gravitational waves = singleton chare Evolution remains roughly in sync ⊲ PDE structure imposes causality ⊲ efficiency requires load balance 19 / 26

  20. Load balancing in SpECTRE Initial questions ⊲ given a bad distribution of chares to nodes, can the LB improve it? ⊲ given a good distribution (e.g., space-filling curve), will the LB preserve it? Future work: balancing load and communications 20 / 26

  21. Load balancing implementation Initial implementation: ⊲ add global synchronizations every N timesteps ⊲ call AtSync() ⊲ resume timestepping from ResumeFromSync() ⊲ update registration in pup::er calls — array de-registers with group when packing — re-registers when unpacking 21 / 26

  22. Load balancing results 350 Dummy A small test evolution Comm 300 ⊲ 1024 array chares on 2 nodes GreedyComm GraphBFT 250 Wallclock time [s] ⊲ ∼ 25 chares per proc RecBipart RecBipart + Dummy 200 Best LB is within 20% of optimal 150 100 50 0 1 1/2 1/4 1/8 Inter-node communications / total communications 22 / 26

  23. Load balancing results "Cost" vs "Time" 0.5 2 nodes - RecBipart Slowdown with larger problem size 4 nodes - RecBipart Time per timestep [seconds] 0.4 ⊲ increase problem size and procs 8 nodes - RecBipart 8 nodes - RecBipart + Dummy 0.3 Ongoing investigation 0.2 ⊲ normal scaling with graph size? ⊲ is this Charm++ issue #2060? 0.1 ⊲ SpECTRE performance 0.0 0 50 100 150 200 250 300 350 400 LB count 23 / 26

  24. Checkpoint-restart results 1e 9 Initial implementation: full run from checkpoint ⊲ call CkStartCheckpoint() from Error 1 global synchronization point 0 0 1 2 3 4 5 6 7 1e 25 Works on same number of nodes Change after restart 2.5 ⊲ future work: generalize 0.0 2.5 0 1 2 3 4 5 6 7 Time 24 / 26

  25. Wishlist after initial experiments LB clarifications ⊲ when to use which LB? ⊲ how does each LB make its decisions? scale with graph complexity? Checkpoint-restart clarifications ⊲ what is order of initialization on restart? ⊲ can group chare dependencies from program startup be enforced on restart? Feature wishlist ⊲ LB based on space-filling curve? ⊲ checkpoint vs migration-aware pup::er will help optimize packing — avoid checkpointing caches to disk — tailor registration updates 25 / 26

  26. Summary ⊲ Future observations motivate improved simulations of binary mergers ⊲ SpECTRE: improving algorithms and scalability ⊲ Binary BH simulations ⊲ Load balancing and checkpointing 26 / 26
