Site / Current AREA OF EFFECT Presented by Cycle Projects - PowerPoint PPT Presentation

Site / Current AREA OF EFFECT Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018 Site / Prominence These buildings reveal the history of New Yorks commercial architecture as it evolved from the Civil War to World

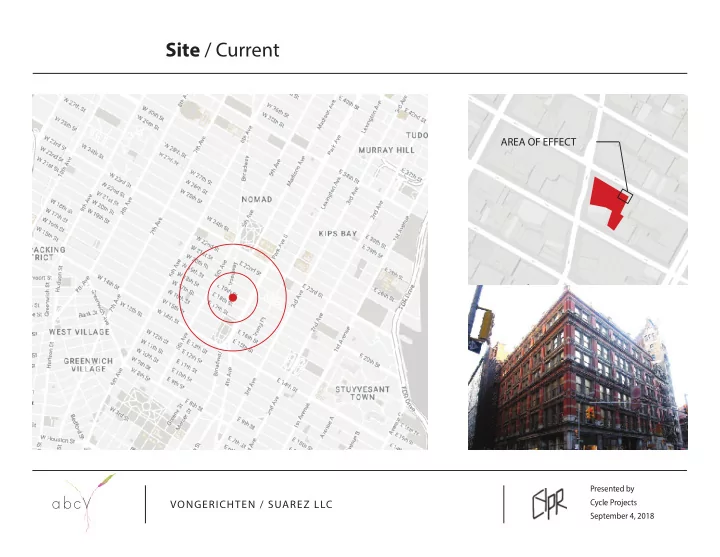

  1. Site / Current AREA OF EFFECT Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018

  2. Site / Prominence “These buildings reveal the history of New York’s commercial architecture as it evolved from the Civil War to World War I, representing a range of stylistic, structural, and technological solutions to the problem of the appropriate building type for the purposes of business and commerce... The district contains a myriad of beautiful Beaux-Arts, Neo-Renaissance, Romanesque Revival, and Queen Anne style department stores, loft buildings, and several incarnations of early skyscrapers. Much of the architecture was a direct refm ection of the City Beautiful Movement, inspired by the Chicago World’s Fair in 1893. The area served as a vibrant social center for shoppers, diners, and entertainers and was described as having a ‘champagne sparkle’ ... The development in this neighborhood followed a pattern of specialized mixed-use. Broadway served as an entertainment center with concert halls, galleries, restaurants, and department stores” (Ladies Mile Report) Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018

  3. Building History W. & J. SLOANE W. & J. SLOANE WILLIAM MEYER & COMPANY ABC NORMANDY CARPET & HOME The f rst portion of the building was In 1898 a major nine-story, forty- After Sloane’s moved uptown to Normandy Real Estate Partners constructed in 1881-1882 for the foot wide addition was made to the Fifth Avenue and 47th Street in becomes partners and Owners ABC Carpet & Home take occupancy prominent rug and carpet f rm of east side of the building on East 1912, the building was subdivided of the builing with ABC Carpet & of the buildings. W. & J. Sloane on an irregular 20,000 19th Street (number 36-38) to serve and leased to numerous tenants for Home. square foot, L-shaped parcel at the as a carpet warehouse. both salesrooms and southeast corner of Broadway and light manufacturing. East 19th Street with an additional frontage on East 18th Street. 1882 1898 1912 1974 1998 - Present COLINA ABC MARKET LE PAIN QUOTIDIEN LUCY ABC Kitchen ABC V 1998 1998 2001 2007 2010 2017 Chef Jean-Georges Chef Jean-Georges Present 1998 PARLOR CAFE CHICAMA PIPA ABC COCINA 1998 2000 2003 2013 Chef Douglas Rodriguez Chef Douglas Rodrigez Chef Jean-Georges Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018

  4. Proposed Facade AREA OF WORK Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018

  5. Facade / Proposed PROPOSED BEHR “ULTRA PROPOSED BULK HEAD CAST IRON FINISH WITH PURE WHITE FINISH WITH PEEL AWAY 2 PEEL AWAY 2 1850” INDUSTRIAL STRIPPER, INDUSTRIAL STRIPPER, SEALED TO PROTECT FROM SEALED TO PROTECT WEATHER FROM WEATHER Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018

  6. Elevations EXG CAST IRON PANELS W/ NEW SIGN NON-ILLUMINATED DISTRESSED FINISH, REFER TO LIGHTS BLADE-SIGN RENDERING FOR FINISH SPECIFICATION EXG DOOR. PAINT EXG BULKHEAD 10”X9”-“ABC V” NEW ANTIQUE BEHR LOW LUSTER W/ DISTRESSED LOGO IN BRASS STOREFRONT ENAMEL W/ BACK FINISH VINYL LETTERING DOORS W/ BRASS PAINTED GLASS PULLS Existiing Facade Proposed North Entrance Elevation Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018

  7. Section /Signage Storefront Section @ Door Blade Sign Elevation Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018

  8. Plan EMPLOYEE KITCHEN ENTRY COUNTER EAST 19TH STREET DINING ABC V ENTRY ENTRY BAR DISH STATION ABC COCINA ENTRY ABC COCINA ABC COCINA COCINA ABC KITCHEN ABC KITCHEN Presented by Cycle Projects VONGERICHTEN / SUAREZ LLC September 4, 2018
