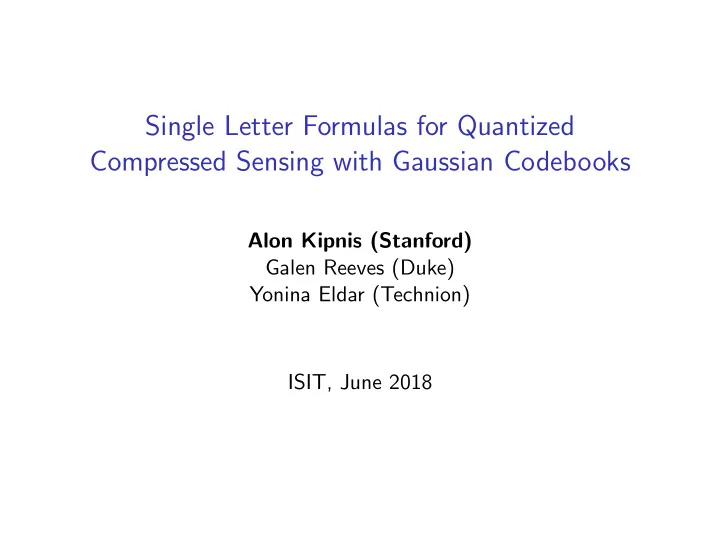

Single Letter Formulas for Quantized Compressed Sensing with Gaussian Codebooks

Alon Kipnis (Stanford) Galen Reeves (Duke) Yonina Eldar (Technion) ISIT, June 2018

Table of Contents

Introduction Motivation Problem Formulation Background Main Results: CE w.r.t. Gaussian Codebooks Compress-and-Estimate Linear Transformation Compress-and-Estimate Summary

2 / 19

Quantization in Linear Models / Compressed-Sensing

Y = H X + N

3 / 19

Quantization in Linear Models / Compressed-Sensing

Y = H X + N

signal Gaussian noise samples sampling matrix

3 / 19

Quantization in Linear Models / Compressed-Sensing

Y = H X + N

signal Gaussian noise samples sampling matrix

Applications:

◮ Signal processing ◮ Communication ◮ Statistics / Machine learning

3 / 19

Quantization in Linear Models / Compressed-Sensing

Y = H X + N

signal Gaussian noise samples sampling matrix

Applications:

◮ Signal processing ◮ Communication ◮ Statistics / Machine learning

This talk: Limited bitrate to represent samples Y 1011 · · · 01

• X

encoder decoder

3 / 19

Quantization in Linear Models / Compressed-Sensing

Y = H X + N

signal Gaussian noise samples sampling matrix

Applications:

◮ Signal processing ◮ Communication ◮ Statistics / Machine learning

This talk: Limited bitrate to represent samples Y 1011 · · · 01

• X

encoder decoder Scenarios:

◮ Limited memory (A/D) ◮ Limited bandwidth

3 / 19

Related Works

(on quantized compressed)

◮ Gaussian signals [K., E., Goldsmith, Weissman ’16] ◮ Scalar quantization [Goyal, Fletcher, Rangan ’08], [Jacques, Hammond, Fadili ’11] ◮ 1-bit quantization [Boufounos, Baraniuk 08], [Plan, Vershynin ’13], [Xu, Kabashima, Zdebrova ’14] ◮ AMP reconstruction [Kamilov, Goyal, Rangan ’11] ◮ Separable setting [Leinonen, Codreanu, Juntti, Kramer ’16]

4 / 19

Related Works

(on quantized compressed)

◮ Gaussian signals [K., E., Goldsmith, Weissman ’16] ◮ Scalar quantization [Goyal, Fletcher, Rangan ’08], [Jacques, Hammond, Fadili ’11] ◮ 1-bit quantization [Boufounos, Baraniuk 08], [Plan, Vershynin ’13], [Xu, Kabashima, Zdebrova ’14] ◮ AMP reconstruction [Kamilov, Goyal, Rangan ’11] ◮ Separable setting [Leinonen, Codreanu, Juntti, Kramer ’16]

This talk: Fundamental limit = minimal distortion over all finite-bit representations of the measurements

4 / 19

Problem Formulation

X

Linear Transform

AWGN

H

Enc Dec

• X

Y

• 1, . . ., 2nR

5 / 19

Problem Formulation

X

Linear Transform

AWGN

H

Enc Dec

• X

Y

• 1, . . ., 2nR

◮ Signal distribution:

Xi

i.i.d.

∼ PX, i = 1, . . . , n

◮ Coding rate:

R bits per signal dimension

◮ Sampling matrix:

◮ Right-rotationally invariant: H

dist

= HO

◮ Empirical spectral distribution of HT H converges to a

compactly supported measure µ

5 / 19

Problem Formulation

X

Linear Transform

AWGN

H

Enc Dec

• X

Y

• 1, . . ., 2nR

◮ Signal distribution:

Xi

i.i.d.

∼ PX, i = 1, . . . , n

◮ Coding rate:

R bits per signal dimension

◮ Sampling matrix:

◮ Right-rotationally invariant: H

dist

= HO

◮ Empirical spectral distribution of HT H converges to a

compactly supported measure µ

Definition:

D(PX, µ, R) infimum over all D for which there exists a rate-R coding scheme such that lim sup

n→∞

1 nE

• X − ˆ

X

• 2

≤ D

5 / 19

Spectral Distribution of Sampling Matrix

6 / 19

Spectral Distribution of Sampling Matrix

• Exm. I

H is orthogonal (HT H = γI) λ ⇒ µ is a point mass distribution δγ γ

6 / 19

Spectral Distribution of Sampling Matrix

• Exm. I

H is orthogonal (HT H = γI) λ ⇒ µ is a point mass distribution δγ γ

• Exm. II

rows of H are randomly sampled form an orthogonal matrix ⇒ µ = (1 − ρ)δ0 + ρδγ ρ 1 − µ({0}) is the sampling rate λ

1 − ρ

γ

ρ

6 / 19

Spectral Distribution of Sampling Matrix

• Exm. I

H is orthogonal (HT H = γI) λ ⇒ µ is a point mass distribution δγ γ

• Exm. II

rows of H are randomly sampled form an orthogonal matrix ⇒ µ = (1 − ρ)δ0 + ρδγ ρ 1 − µ({0}) is the sampling rate λ

1 − ρ

γ

ρ

• Exm. III

H is i.i.d. Gaussian ⇒ µ is the Marchenco-Pasture law λ

1 − ρ

ρ 1 − µ({0}) is the sampling rate

6 / 19

Special Cases / Lower Bounds

0.1 0.9 0.2 0.4 0.6 0.8 1 D(PX, µ, R) =?

DShannon(PX, R) MMSE(PX, µ)

sampling rate (1 − µ({0})) MSE

7 / 19

Special Case: MMSE

No Quantization / Infinite Bitrate

lim

R→∞ D(PX, µ, R) = lim sup n→∞

1 n E

• X − E[X|Y ]2
• MMSE

M(PX, µ)

8 / 19

Special Case: MMSE

No Quantization / Infinite Bitrate

lim

R→∞ D(PX, µ, R) = lim sup n→∞

1 n E

• X − E[X|Y ]2
• MMSE

M(PX, µ)

◮ Under some conditions:

M(PX, µ) = M(PX, δs)

[Guo & Verdu ’05], [Takeda et. al. ’06], [Wu & Verdu ’12], [Tulino et. al. ’13], [Reeves & Pfister ’16], [Barbier et. al. ’16,’17], [Rangan, Schinter, Fletcher ’16], [Maillard, Barbier, Macris, Krzakala, Wed 10:20]

8 / 19

Special Case: MMSE

No Quantization / Infinite Bitrate

lim

R→∞ D(PX, µ, R) = lim sup n→∞

1 n E

• X − E[X|Y ]2
• MMSE

M(PX, µ)

◮ Under some conditions:

M(PX, µ) = M(PX, δs)

[Guo & Verdu ’05], [Takeda et. al. ’06], [Wu & Verdu ’12], [Tulino et. al. ’13], [Reeves & Pfister ’16], [Barbier et. al. ’16,’17], [Rangan, Schinter, Fletcher ’16], [Maillard, Barbier, Macris, Krzakala, Wed 10:20]

Main result of this talk: D(PX, µ, R) ∼ M(PX, TRµ) TR is a spectrum scaling operator

8 / 19

Previous Results

0.1 0.9 0.2 0.4 0.6 0.8 1 DShannon MMSE sampling rate MSE

9 / 19

Previous Results

0.1 0.9 0.2 0.4 0.6 0.8 1 DShannon MMSE DEC [KREG ’17] sampling rate MSE

9 / 19

Estimate-and-Compress vs Compress-and-Estimate

Estimate-and-Compress [Kipnis, Reeves, Eldar, Goldsmith ’17] X

Linear Transform

AWGN

H

Est Enc’ Dec

• X

Y

nR bits

10 / 19

Estimate-and-Compress vs Compress-and-Estimate

Estimate-and-Compress [Kipnis, Reeves, Eldar, Goldsmith ’17] X

Linear Transform

AWGN

H

Est Enc’ Dec

• X

Y

nR bits

• Encoding is hard
• Decoding is easy

10 / 19

Estimate-and-Compress vs Compress-and-Estimate

Estimate-and-Compress [Kipnis, Reeves, Eldar, Goldsmith ’17] X

Linear Transform

AWGN

H

Est Enc’ Dec

• X

Y

nR bits

• Encoding is hard
• Decoding is easy

Compress-and-Estimate (this talk) X

Linear Transform

AWGN

H

Enc Dec’ Est

• X

Y

nR bits

• Y

10 / 19

Estimate-and-Compress vs Compress-and-Estimate

Estimate-and-Compress [Kipnis, Reeves, Eldar, Goldsmith ’17] X

Linear Transform

AWGN

H

Est Enc’ Dec

• X

Y

nR bits

• Encoding is hard
• Decoding is easy

Compress-and-Estimate (this talk) X

Linear Transform

AWGN

H

Enc Dec’ Est

• X

Y

nR bits

• Y
• Encoding is easy
• Decoding is hard

10 / 19

Table of Contents

Introduction Motivation Problem Formulation Background Main Results: CE w.r.t. Gaussian Codebooks Compress-and-Estimate Linear Transformation Compress-and-Estimate Summary

11 / 19

Result I

Theorem (CE achievability)

D(PX, µ, R) ≤ M(PX, Tµ) where T is an SNR scaling operator applied to the spectral distribution of the sampling matrix, T(λ) = 1 − 2−2R/ρ 1 + γ

ρσ2 X2−2R/ρ λ,

12 / 19

Result I

Theorem (CE achievability)

D(PX, µ, R) ≤ M(PX, Tµ) where T is an SNR scaling operator applied to the spectral distribution of the sampling matrix, T(λ) = 1 − 2−2R/ρ 1 + γ

ρσ2 X2−2R/ρ λ,

• riginal spectrum µ

λ

1 − ρ

scaled spectrum Tµ

λ

1 − ρ

12 / 19

Result I

Theorem (CE achievability)

D(PX, µ, R) ≤ M(PX, Tµ) where T is an SNR scaling operator applied to the spectral distribution of the sampling matrix, T(λ) = 1 − 2−2R/ρ 1 + γ

ρσ2 X2−2R/ρ λ,

• riginal spectrum µ

λ

1 − ρ

scaled spectrum Tµ

λ

1 − ρ

Quantization is equivalent to spectrum attenuation

12 / 19

Example I: Distortion vs Sampling rate

PX – Bernoulli-Gauss µ – Marchenco-Pasture law

0.1 0.5 0.9 0.2 0.4 0.6 0.8 1

DEC (previous) D

C E

(this talk)

DShannon MMSE sampling rate MSE

13 / 19

Example II: distortion vs Sparsity

PX – Bernoulli-Gauss µ – Marchenco-Pasture law

sparse dense

0.2 0.4 0.6

D

E C

(previous) DCE ( t h i s t a l k )

M M S E DShannon MSE ← sparsity →

14 / 19

Can we do better than DCE ?

sparse dense

0.2 0.4 0.6

D

E C

(previous) DCE ( t h i s t a l k )

M M S E DShannon MSE ← sparsity →

15 / 19

Can we do better than DCE ?

sparse dense

0.2 0.4 0.6

D

E C

(previous) DCE ( t h i s t a l k )

M M S E DShannon MSE ← sparsity →

15 / 19

Can we do better than DCE ?

sparse dense

0.2 0.4 0.6

D

E C

(previous) DCE ( t h i s t a l k )

M M S E DShannon MSE ← sparsity → X

Linear Transform

AWGN L Enc’ Dec’ Est

• X

Y ˜ Y

nR bits

• ˜

Y

15 / 19

Result II

Theorem (achievability using LCE)

D(PX, µ, R) ≤ M(PX, Tθµ) where Tθ(λ) = λ

• λ

1+λ − θ

+

λ 1+λ + θλ

Rθ = 1 2 ∞ log+

• λ

(1 + λ)θ

• µ(dλ)

16 / 19

Result II

Theorem (achievability using LCE)

D(PX, µ, R) ≤ M(PX, Tθµ) where Tθ(λ) = λ

• λ

1+λ − θ

+

λ 1+λ + θλ

Rθ = 1 2 ∞ log+

• λ

(1 + λ)θ

• µ(dλ)
• riginal spectrum µ

λ

non-linear transformation Tθµ

λ

16 / 19

Result II

Theorem (achievability using LCE)

D(PX, µ, R) ≤ M(PX, Tθµ) where Tθ(λ) = λ

• λ

1+λ − θ

+

λ 1+λ + θλ

Rθ = 1 2 ∞ log+

• λ

(1 + λ)θ

• µ(dλ)
• riginal spectrum µ

λ

non-linear transformation Tθµ

λ Converse when signal is Gaussian PX = N(0, σ2

X) !

16 / 19

Distortion vs Sparsity

PX – Bernoulli-Gauss µ – Marchenco-Pasture law

sparse dense

0.1 0.2 0.3 0.4 0.5 0.6 0.7

DLCE (this talk)

• ptimal

D

E C

(previous) DCE ( t h i s t a l k )

M M S E DShannon

⋆

MSE ← sparsity →

17 / 19

Distortion vs Sparsity

PX – Bernoulli-Gauss µ – Marchenco-Pasture law

sparse dense

0.1 0.2 0.3 0.4 0.5 0.6 0.7

DLCE (this talk)

• ptimal

D

E C

(previous) DCE ( t h i s t a l k )

M M S E DShannon

⋆

MSE ← sparsity →

17 / 19

Table of Contents

Introduction Motivation Problem Formulation Background Main Results: CE w.r.t. Gaussian Codebooks Compress-and-Estimate Linear Transformation Compress-and-Estimate Summary

18 / 19

Summary

◮ Quantized CS / Optimal quantization in linear measurement

model – optimal tradeoff between MSE, PX, empirical spectral distribution and bitrate

19 / 19

Summary

◮ Quantized CS / Optimal quantization in linear measurement

model – optimal tradeoff between MSE, PX, empirical spectral distribution and bitrate

◮ Compression using Gaussian codebooks and right-orthogonally

invariant sampling matrix Quantization ↔ MMSE with transformed spectral distribution

19 / 19

Summary

◮ Quantized CS / Optimal quantization in linear measurement

model – optimal tradeoff between MSE, PX, empirical spectral distribution and bitrate

◮ Compression using Gaussian codebooks and right-orthogonally

invariant sampling matrix Quantization ↔ MMSE with transformed spectral distribution

◮ Compress-and-estimate (CE) – Scaling by a constant factor ◮ Linear transformation CE (LCE) – Non-linear transformation

according to the water-filling principle

◮ LCE is optimal when signal is Gaussian

19 / 19

Summary

◮ Quantized CS / Optimal quantization in linear measurement

model – optimal tradeoff between MSE, PX, empirical spectral distribution and bitrate

◮ Compression using Gaussian codebooks and right-orthogonally

invariant sampling matrix Quantization ↔ MMSE with transformed spectral distribution

◮ Compress-and-estimate (CE) – Scaling by a constant factor ◮ Linear transformation CE (LCE) – Non-linear transformation

according to the water-filling principle

◮ LCE is optimal when signal is Gaussian

The End!

• riginal µ

λ

after quantization Tθµ

λ

19 / 19
