Sheet Dynamics, Ltd. Joe Kesler Tom Sharp Richard Roth Uriah - PowerPoint PPT Presentation

Sheet Dynamics, Ltd. Joe Kesler Tom Sharp Richard Roth Uriah Liggett 513-631-0579 jkesler@sdltd.com This presentation has been cleared for public release by the U.S. Air Force and U.S. Navy under public release numbers 88ABW-2009-2904 and

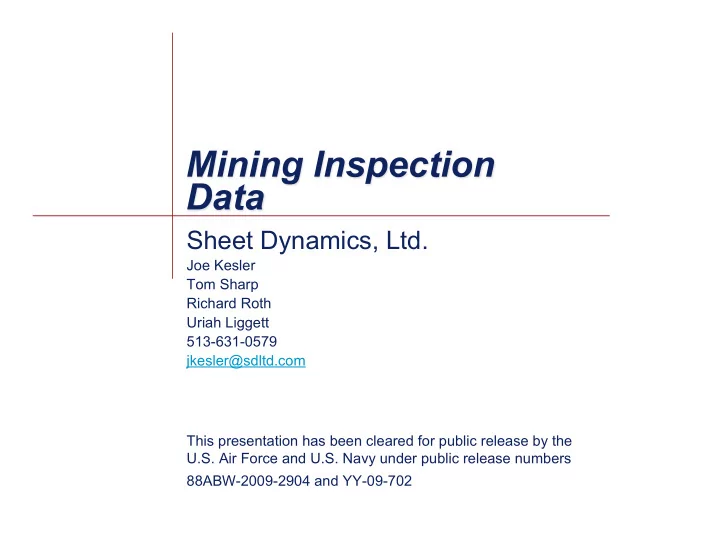

  1. Sheet Dynamics, Ltd. Joe Kesler Tom Sharp Richard Roth Uriah Liggett 513-631-0579 jkesler@sdltd.com This presentation has been cleared for public release by the U.S. Air Force and U.S. Navy under public release numbers 88ABW-2009-2904 and YY-09-702

  2.  Introduction  Data Organization – Core NDT Image Management Technology – Technical Overview  Data Mining – Damage Trending and Reporting – NDT Coverage – Process Control – Manufacturing Process Control – Integration with Damage Analysis Packages  Summary

  3.  Review work being performed for Air Force and Navy – Wanted to get more out of their inspection data • Coverage • Trending • Comparison • Improved communication with maintainers and engineers  Modalities – Initially looked primarily at computed radiography – Now working more with C-scan ultrasound and digital photographs as well

  4.  What do we mean by Inspection Data Management? Organize Archive Mine

  5.  Introduction  Data Organization – Core NDT Image Management Technology – Relationship to Data Mining – Technical Overview  Data Mining – Damage Trending and Reporting – NDT Coverage – Process Control – Manufacturing Process Control – Integration with Damage Analysis Packages  Summary

  6.  “Google Maps” for NDT image data - We are developing software to help organize, store and mine inspection data  Core Principal: All inspection data should be aligned to a CAD model of the inspected structure  Core Capability: Automatically align inspection image data to CAD models

  7. • Acquire image (Radiograph, UT C- scan, etc.) • Automatically align to CAD model • Store in database • Repeat for entire structure Acquired Image

  8.  By retaining the spatial data associated with the inspection images and indications, additional information can be mined  Derived trends can have better than “part” resolution  Missing coverage is immediately apparent  Additional information available for process control integration or other analysis tools

  9.  Goal was to develop robust framework to organize inspection data  Initially reviewed a wide range of applications – Data was not consistently aligned – Single image/Multiple images – Overlap/No overlap – Clear features/No clear features – Typically there was additional information – Wide range of “distortions” in the image data  One approach will not handle all inspections

  10. Alignment Incoming Tag Method Data Translator Database Data/Image Alignment Mining & Alignment Visualization Database Tools Annotation Translator

  11.  Alignment algorithms can most broadly be partitioned into area based and feature based algorithms  Feature based methods extract salient features and proceed to match those features to those associated with the model  Area based methods operate on the image as a whole

  12. Reference Image To Be Image Aligned Correlation Based Image Registration Apply Reference Alignment Reference Image Alignment Aligned Wing

  13. Extract Rivet Align Detected Rivet patterns to Paterns Rivet Pattern Model

  14. Real
Camera:
 Unknown
pose
in
 either
coordinate
 system
 Assume
asset
and
 Algorithm finds the CAD
model
aligned
 real camera’s pose in the CAD coordinate system Virtual
Camera:
 CAD
Coordinate
 Known
and
variable
 System
 pose
within
CAD
 coordinate
system
 With knowledge of the real camera’s pose in the CAD coordinate system, it is World
Coordinate
 relatively straight forward to System
 map the image onto the model

  15.  Introduction  Data Organization – Core NDT Image Management Technology – Technical Overview  Data Mining – Damage Trending and Reporting – NDT Coverage – Process Control – Manufacturing Process Control – Integration with Damage Analysis Packages  Summary

  16. • 122 Tail numbers • All annotations on images marked on diagram • Includes data from over 6,000 CR images

  17.  Damage / Defects – Location – Associated data  Trends – Spatial – Across Fleet – Across Time – Across Service Location – Etc.

  18. • Align Data • Extract Annotations • Visualize Trends • Extract Quantitative Data • Drill Down to Original Data Positive Material

  19. • Provide real time insight into area coverage • Highlight areas of missing data • Streamline production and maintenance practices Gaps in Data

  20. Portion of 4 Ultrasonic  C-scans of a larger inspection Small areas of missed  coverage are much more apparent when the data is aligned

  21. Original scan Scan after maintenance Difference between scans highlight new damage • Comparing before and after maintenance scans can be useful for highlighting new damage caused by process control issues

  22. Take a Automatically Find damage FEA Model of Photograph Map Damage on CAD model part back to FEA model  Focus is on development of tools to improve maintenance of composite structures  Align digital photographs to 3-D CAD models  Export to analysis package

  23.  Data organized by alignment to CAD – Alignment is automated – Alignment to CAD enables multiple types of analysis  Benefits – Coverage – Trending – Comparison – Improved communication with maintainers and engineers – Export to analysis packages

  24.  This work was supported by the US Air Force and Navy under the following contracts: – SBIR AF061-79 Phase II • Contract FA8650-07-C-5210 • CTOR Gary Steffes (AFRL/RXLP) • AF Public Release Case Number: 88ABW-2009-2904 – SBIR N07-116 Phase II • Contract N68335-09-C-0001 • CTOR Andrew Guy (NAVAIR 4.3.3.5) • Navy Public Release Case Number: YY-09-702
