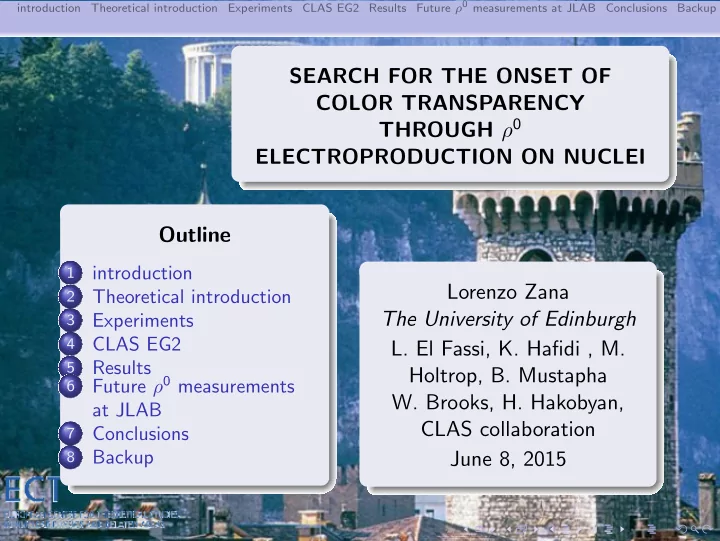

SEARCH FOR THE ONSET OF COLOR TRANSPARENCY THROUGH ρ0 ELECTROPRODUCTION ON NUCLEI Outline

1

introduction

2

Theoretical introduction

3

Experiments

4

CLAS EG2

5

Results

6

Future ρ0 measurements at JLAB

7

Conclusions

8

Backup

Lorenzo Zana The University of Edinburgh

• L. El Fassi, K. Hafidi , M.

Holtrop, B. Mustapha

• W. Brooks, H. Hakobyan,

CLAS collaboration June 8, 2015
