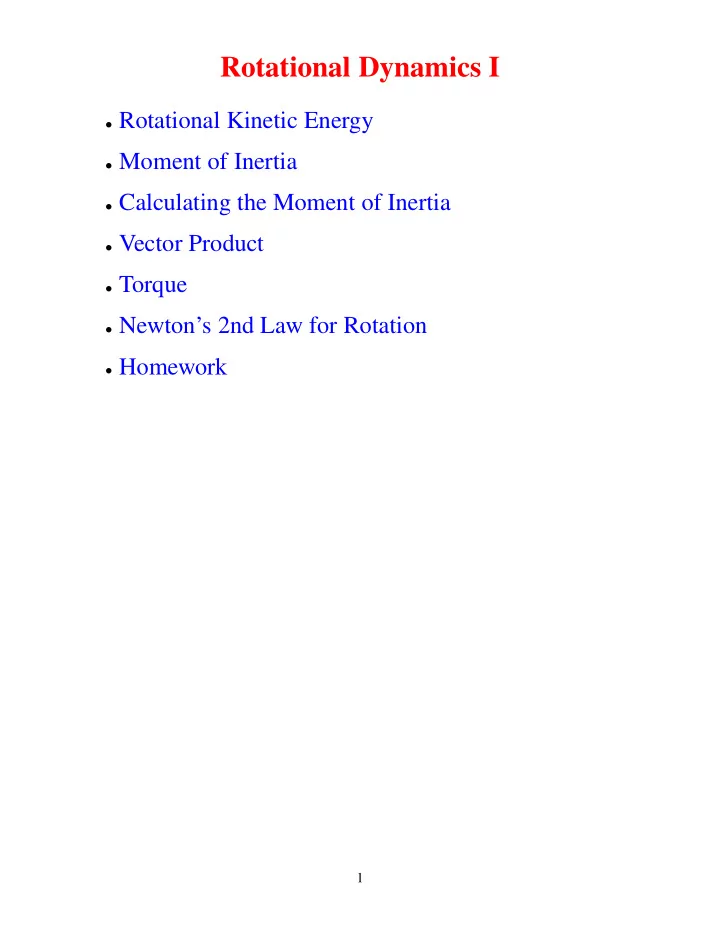

Rotational Dynamics I • Rotational Kinetic Energy • Moment of Inertia • Calculating the Moment of Inertia • Vector Product • Torque • Newton’s 2nd Law for Rotation • Homework 1

Rotational Kinetic Energy K i = 1 i = 1 2 m i v 2 2 m i r 2 i ω 2 K = 1 m 1 r 2 1 + m 2 r 2 ω 2 � � 2 + . . . 2 K = 1   i m i r 2  ω 2 �   i  2 K = 1 2 Iω 2 i m i r 2 I = ⇒ Moment of Inertia � i 2

Calculating the Moment of Inertia • Discrete mass distribution i m i r 2 I = � i • Continuous mass distribution � r 2 dm i ∆ m i r 2 I = lim i = � ∆ m i → 0 3

Example 1 Consider a rigid body consisting of two particles of mass M connected by a rod of length L and negligible mass. (a) What is the rotational inertia about an axis through its center at right angles to the rod? (b) What will be the rotational kinetic energy of the rigid body if it rotates about the axis with an angular velocity ω ? 4

Example 1 Solution Consider a rigid body consisting of two particles of mass M connected by a rod of length L and negligible mass. (a) What is the rotational inertia about an axis through its center at right angles to the rod? Axis M M L/2 L/2 ✄✁✄✁✄ ☎✁☎ �✁�✁� ✂✁✂ ✄✁✄✁✄ ☎✁☎ �✁�✁� ✂✁✂ ✆✁✆✁✆✁✆✁✆✁✆✁✆✁✆✁✆✁✆✁✆✁✆✁✆✁✆ ✄✁✄✁✄ ☎✁☎ �✁�✁� ✂✁✂ ✄✁✄✁✄ ☎✁☎ �✁�✁� ✂✁✂ 2 2  L  L = 1     i m i r 2 2 ML 2 I = i = M + M �       2 2 (b) What will be the rotational kinetic energy of the rigid body if it rotates about the axis with an angular velocity ω ? K = 1 2 Iω 2 = 1 4 ML 2 ω 2 5

6

The Vector (or Cross) Product C = A × B C = | C | = AB sin θ • The direction of the vector C is given by the right- hand rule. • The vector product is not commutative A × B = − ( B × A ) 7

Example 2 Consider the two vectors A = 3 i + 5 j and B = 2 i + 4 j . Find A × B . 8

Example 2 Solution Consider the two vectors A = 3 i + 5 j and B = 2 i + 4 j . Find A × B . A × B = (3 i + 5 j ) × (2 i + 4 j ) A × B = (3)(2)( i × i ) + (3)(4)( i × j ) + (5)(2)( j × i ) + (5)(4)( j × j ) A × B = 0 + (3)(4) k + (5)(2)( − k ) + 0 A × B = 12 k − 10 k = 2 k 9

Torque τ = r × F τ = rF sin φ = F ( r sin φ ) = Fd d = r sin φ ⇒ Moment Arm 10

Newton’s 2nd Law for Rotation mr 2 � � τ = F t r = ma t r = m ( αr ) r = α τ = Iα � τ = Iα F φ y F t F r ✝✁✝✁✝ ✞✁✞✁✞ m ✝✁✝✁✝ ✞✁✞✁✞ ✝✁✝✁✝ ✞✁✞✁✞ ✞✁✞✁✞ ✝✁✝✁✝ r Rod θ x O Rotation axis 11

Example 3 Consider a uniform disk with a mass 2.5 kg and radius 0.20 m mounted on a fixed horizontal axis. A block with a mass of 1.2 kg hangs from a light cord that is wrapped around the rim of the disk. Find the acceleration of the falling block, the angular acceleration of the disk, and the tension in the cord. 12

Example 3 Solution Consider a uniform disk with a mass 2.5 kg and radius 0.20 m mounted on a fixed horizontal axis. A block with a mass of 1.2 kg hangs from a light cord that is wrapped around the rim of the disk. Find the acceleration of the falling block, the angular acceleration of the disk, and the tension in the cord. � τ = Iα  1  a     2 MR 2 RT =     R T = 1 2 Ma 13

Example 3 Solution (cont’d) � F y = T − mg = − ma 1 2 Ma − mg = − ma 2 m a = M + 2 mg 2 (1 . 2 kg ) 9 . 8 m/s 2 = 4 . 8 m/s 2 � � a = 2 . 5 kg + 2 (1 . 2 kg ) T = 1 2 Ma = 1 4 . 8 m/s 2 � � 2 (2 . 5 kg ) = 6 . 0 N R = 4 . 9 m/s 2 α = a 0 . 20 m = 24 rad/s 2 14

Homework Set 19 - Due Wed. Oct. 27 • Read Sections 10.4-10.5 & 10.7 • Answer Question 10.15 • Do Problems 10.13, 10.15, 10.17 & 10.20 15
