Retro-uC An open source microcontroller with retro instruction sets 4/2/2018 Staf Verhaegen Overview What? Why? Status RFC: ASICs and retrocomputing FOSDEM 2018 Retro-uC - Staf Verhaegen 2 What? Retro-uC A micro-controller

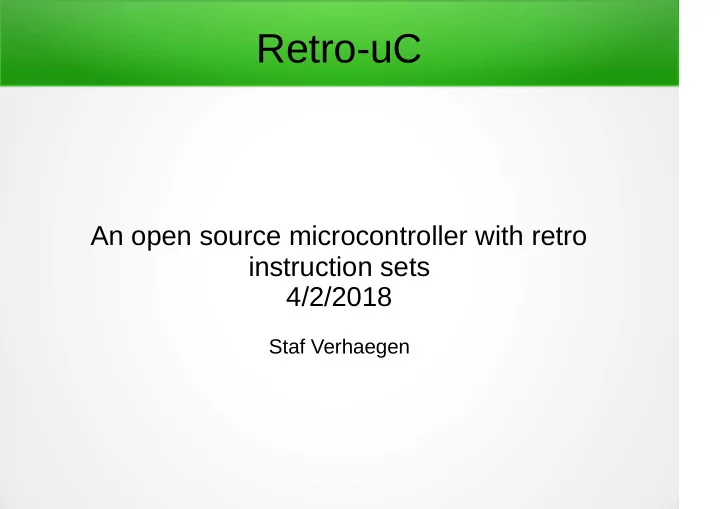

  1. Retro-uC An open source microcontroller with retro instruction sets 4/2/2018 Staf Verhaegen

  2. Overview ● What? ● Why? ● Status ● RFC: ASICs and retrocomputing FOSDEM 2018 Retro-uC - Staf Verhaegen 2

  3. What? Retro-uC A micro-controller with Z80, MOS6502, Motorola 68000 cores FOSDEM 2018 Retro-uC - Staf Verhaegen 3

  4. Why? ● Retro Computing MIST FPGA computer ACA 1233n 40Mhz Accelerator Firebee computer simulates old consoles with 128MB RAM Coldfjre based Atari clone and computers € 240,- € 520,- € 200,- FOSDEM 2018 Retro-uC - Staf Verhaegen 4

  5. Why ? ● Hobbyist/Maker FOSDEM 2018 Retro-uC - Staf Verhaegen 5

  6. Why? Chips want to be free ● Linux: hackers (makers) coding at night on their PC ● For custom ASICs high start-up cost but now we have: Distributed Development Crowdfunding FOSDEM 2018 Retro-uC - Staf Verhaegen 6

  7. Why? ● The Dream: Low-volume Open Source ASIC service – ASIC production targets high-volume: high startup costs, low per unit costs ● Mask costs ● EDA tools license ● Engineering ● IP blocks ● The fine print is not maker friendly FOSDEM 2018 Retro-uC - Staf Verhaegen 7

  8. Why? ● The Dream: Low-volume Open Source ASIC service – Cost < €100/piece for 100+ devices/boards; lower prices for higher volume ● Open source RTL not reinvent/repay for the wheel ● Pool different chips to share set-up cost; use multi-project wafer services ● Push button open source EDA flow ● Intermediate in the legal affairs FOSDEM 2018 Retro-uC - Staf Verhaegen 8

  9. Why? ● The Dream: Low-volume Open Source ASIC service – Retro-uC is pilot project to test the flow and costs in the manufacturing FOSDEM 2018 Retro-uC - Staf Verhaegen 9

  10. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 10

  11. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 11

  12. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 12

  13. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 13

  14. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 14

  15. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 15

  16. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 16

  17. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 17

  18. Status FOSDEM 2018 Retro-uC - Staf Verhaegen 18

  19. Status ● Planned Product Options Retro_uC-QFN Retro_uC-Breadboard FOSDEM 2018 Retro-uC - Staf Verhaegen 19 Retro_uC-Retrino Retro_uC-ProtoPlus

  20. RFC: ASICs and Retrocomputing ● Do you think crowdfunded projects ASIC projects interesting for retrocomputing ? – Goal: $10 000 – Price/piece < $100 – Should be able to provide 5V/12V capability – Production will be slower (e.g. months) compared to PCB manufacture with COTS parts ● What are requirements to make it attractive ? FOSDEM 2018 Retro-uC - Staf Verhaegen 20
